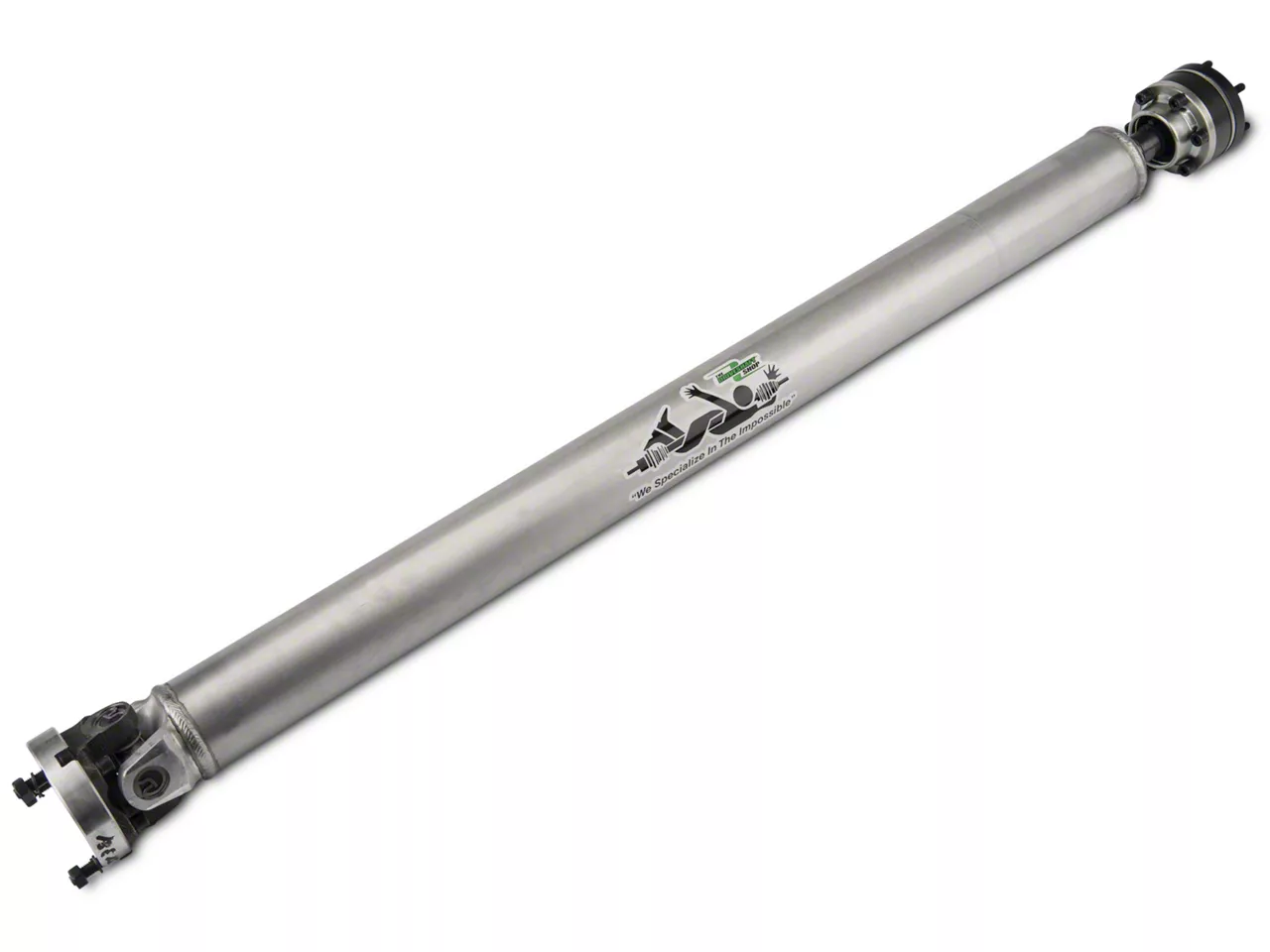

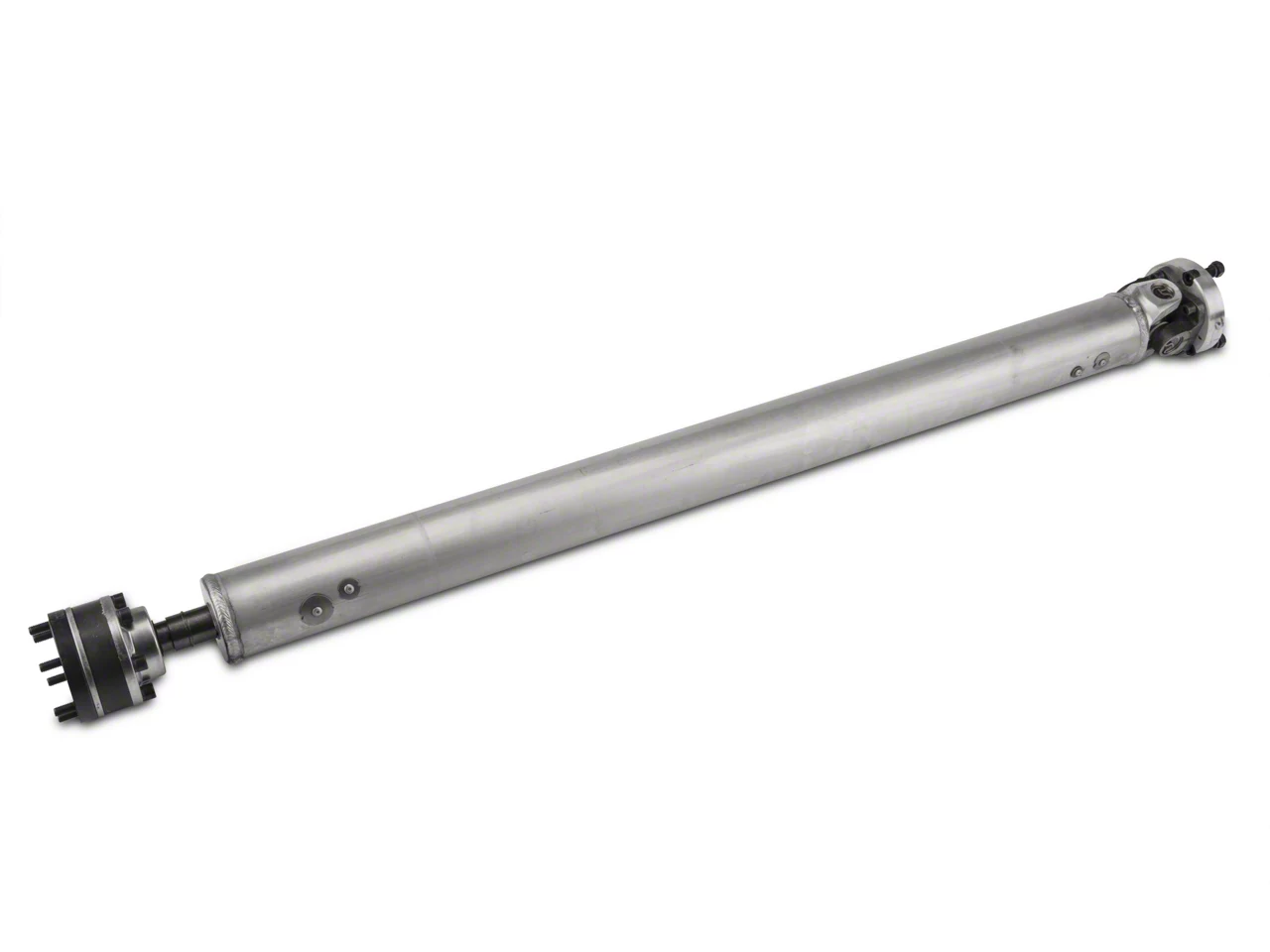

Drive Shaft Shop FDSH62-A 610274 One-Piece 3.5" Aluminum Driveshaft with Direct Fit Rear CV

Manufacturer

Part Number

610274
Sale Price

$989.97

Estimated ship date Sunday, November 29

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Drive Shaft Shop FDSH62-A is a high-performance, one-piece 3.5-inch aluminum driveshaft engineered for the 2015–2017 Ford Mustang EcoBoost with automatic transmission. Designed as a direct replacement for the factory two-piece driveshaft, this unit converts to a single-piece design to eliminate flex, reduce rotating mass, and deliver measurably improved drivetrain response.

A standout feature of this driveshaft is the direct fit rear CV design, which eliminates the adapter plate at the rear end. Instead, a precision-ground CV joint fits directly inside the pinion flange — just like the factory unit — shedding unnecessary weight while increasing power-holding capability and improving drivetrain response.

Key Features:

  • 3.5" diameter 6061-T6 aluminum construction — rated for 3,450 ft-lbs of torque

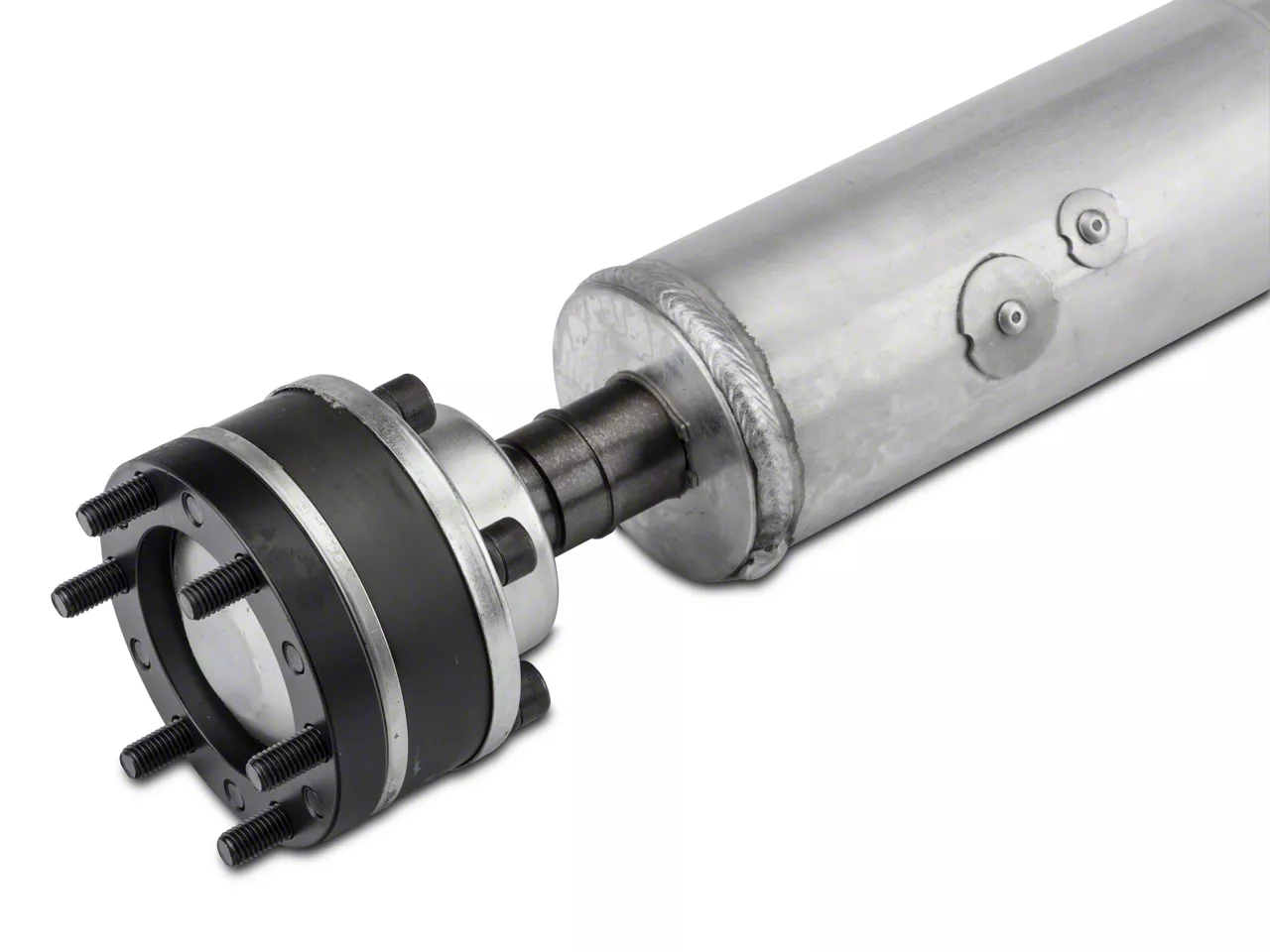

  • Direct fit rear CV joint — precision ground to fit inside the pinion flange without adapter plates
  • Chromoly internals on the CV joint for increased strength and durability

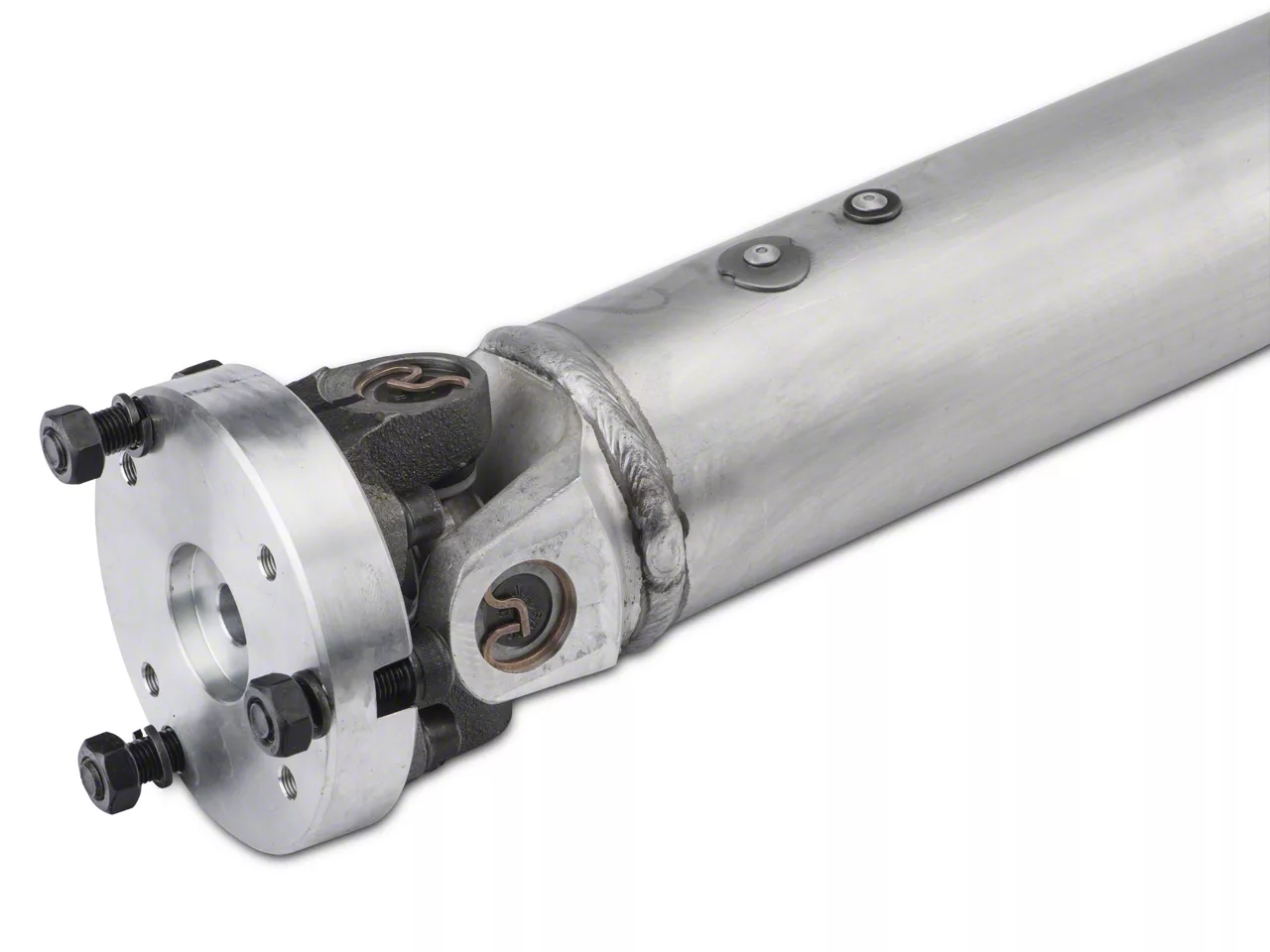

  • Spicer 1350 series solid U-joint at the front for solid, reliable power transfer
  • Forged aluminum U-joint flange — no inexpensive cast components used
  • Billet aluminum end caps for superior material integrity
  • 300M chromoly spline plugs for added strength at connection points
  • High-speed precision balanced at up to 9,500 RPM — minimizes harmonic vibration
  • 1,000+ HP rating — built for even the most aggressive power levels
  • 3.5" diameter provides additional clearance compared to 4" shafts, ideal for lowered vehicles

The one-piece aluminum design significantly reduces rotating mass compared to the stock two-piece steel driveshaft, translating into improved 0–60 and quarter-mile times. DSS high-speed balances each shaft on sophisticated equipment to ensure smooth, vibration-free operation at all RPM levels.

Important Installation Notes: A rear subframe/cradle lock-out kit must be installed on the vehicle prior to installation. Failure to properly reinforce the rear cradle and limit movement will void the warranty. Moderate mechanical skill is required for installation.
