Drive Shaft Shop 610269 FDSH54-A 3.5" Aluminum One-Piece Driveshaft 2015-2017 Mustang GT Automatic

Manufacturer

Part Number

610269
Sale Price

$1,114.69

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

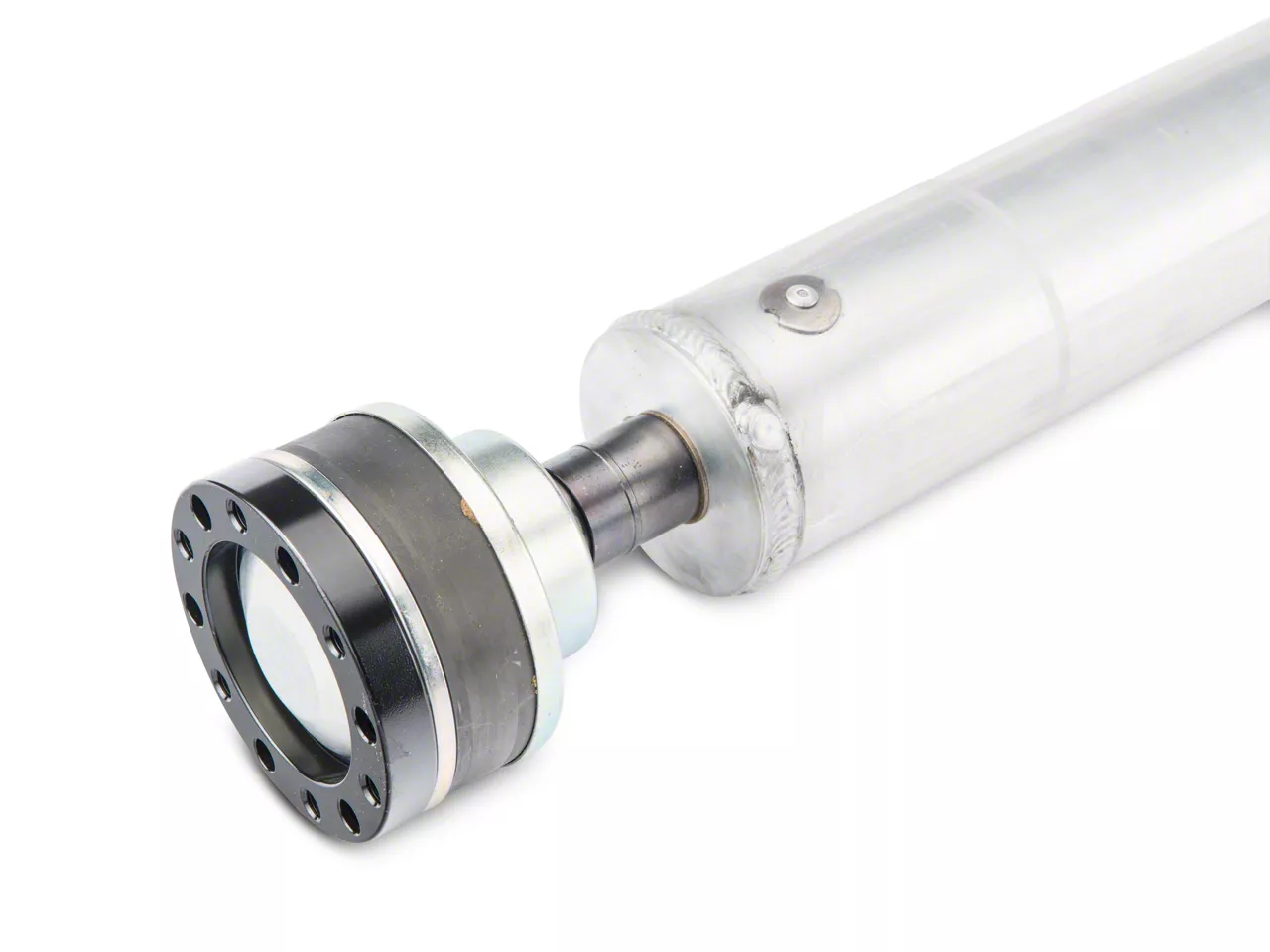

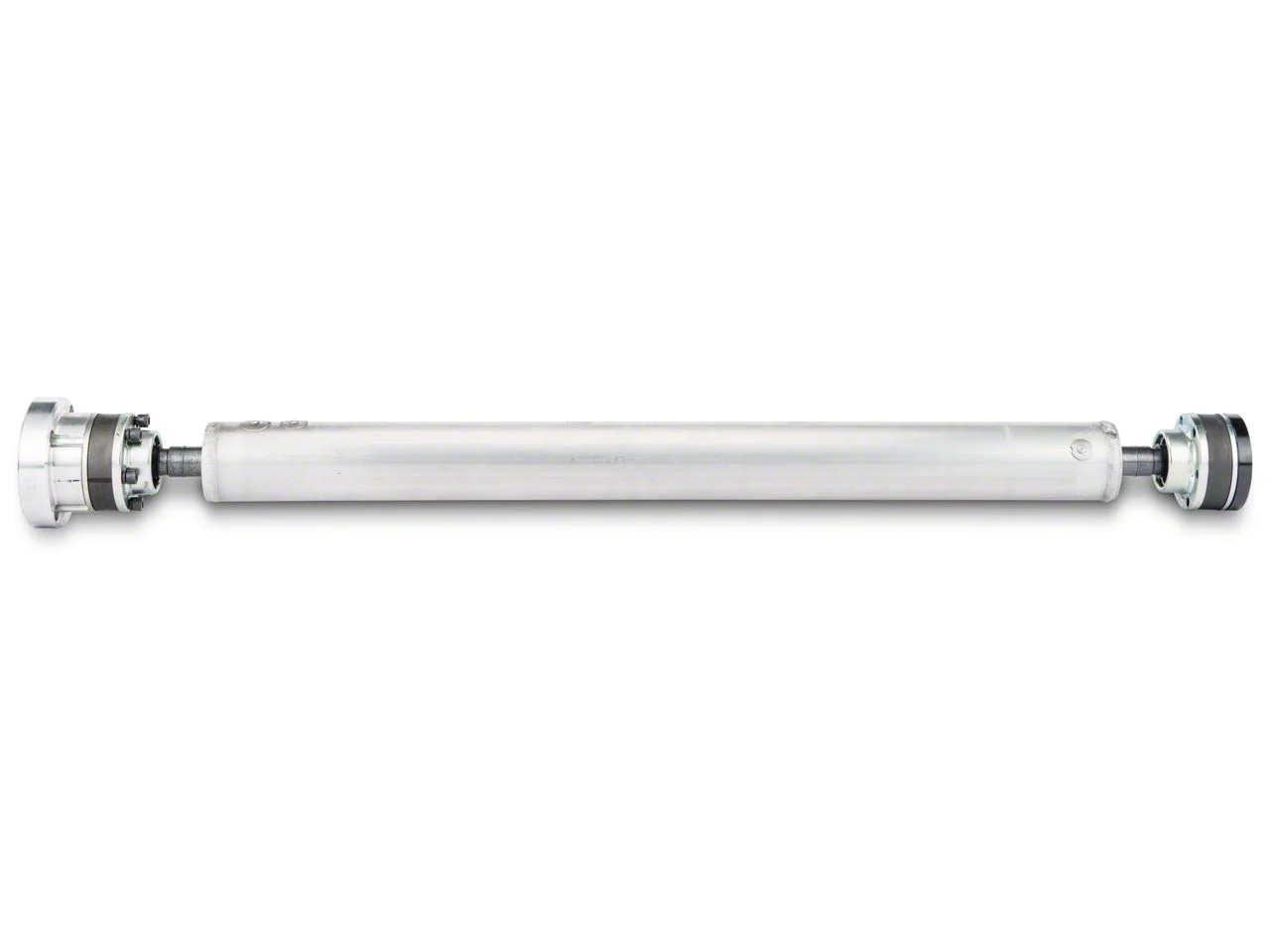

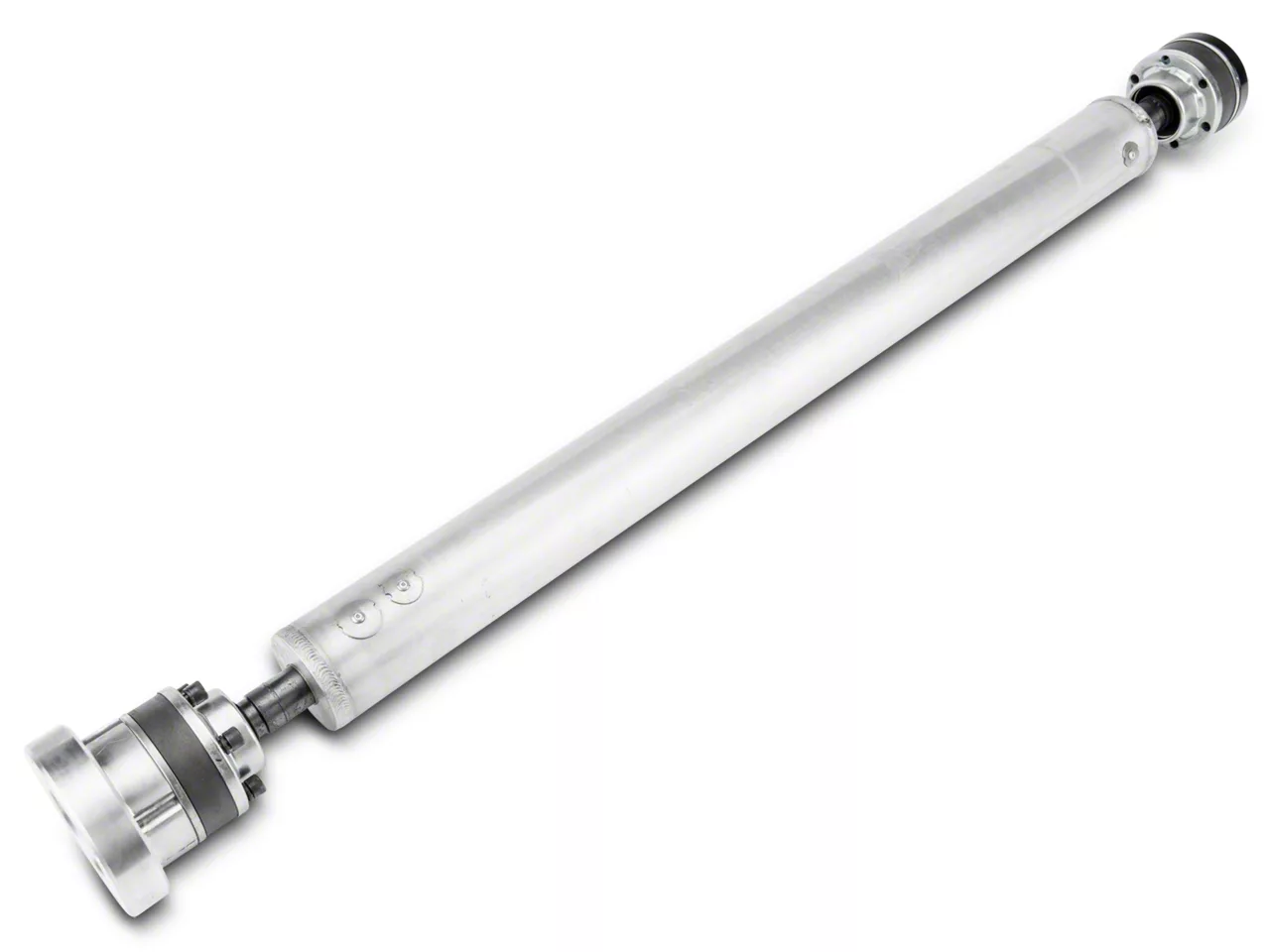

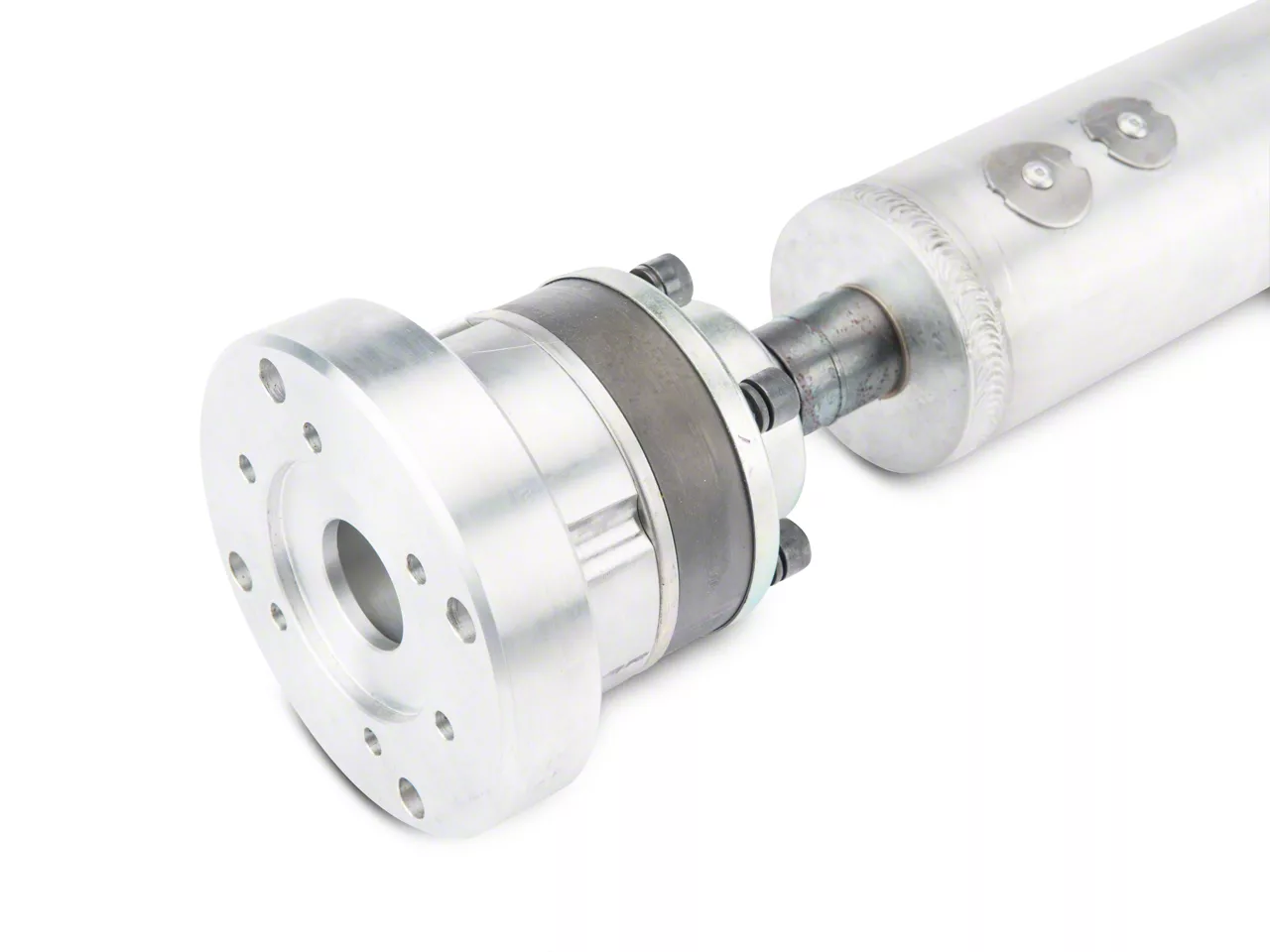

The Drive Shaft Shop FDSH54-A features a direct-fit rear CV design that eliminates the adapter plate at the rear end with a precision ground CV to fit inside the pinion flange just like the factory. This one-piece aluminum driveshaft cuts down quarter-mile and 60-foot times by reducing rotational mass, helping your S550 Mustang put power to the ground faster off the line.

Key Features:

  • Constructed from 3.5-inch diameter 6061-T6 aluminum tubing rated for 3,450 ft-lbs of torque
  • Weighs approximately 18 lbs, significantly lighter than the factory 2-piece driveshaft
  • Designed to hold over 1,000+ horsepower for extreme engine modifications
  • Billet aluminum endcaps and 300M chromoly spline plugs
  • High-speed precision ground CV joint with chromoly internals
  • Spicer 1350 series solid U-joint
  • High-speed balanced up to 9,500 RPM on sophisticated balancing machines
  • 3.5-inch diameter provides extra clearance to avoid interference on lowered Mustangs

This design sheds weight from adapter plates while increasing power holding ability and drivetrain response. Important: Rear subframe/cradle lock-out kit must be installed prior to installation of this one-piece driveshaft, as failure to properly reinforce the rear cradle will void the warranty.
