Drive Shaft Shop 610105 1000HP Aluminum Driveshaft 2004 Pontiac GTO

Manufacturer

Part Number

610105
Sale Price

$1,020.42

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

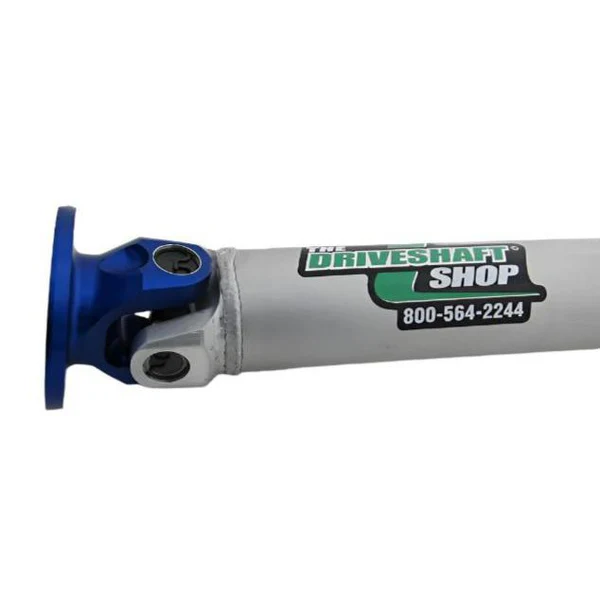

The Drive Shaft Shop 610105 is a high-performance 1-piece aluminum driveshaft engineered specifically for 2004 Pontiac GTO models with 6-speed manual or automatic transmissions. This driveshaft is constructed from 3.5-inch diameter 6061-T6 aluminum tubing with .125 wall thickness, replacing the failure-prone factory 2-piece design.

Direct Bolt-On Installation:

The driveshaft features a machined 7075-T6 aluminum 1350 u-joint flange that bolts directly to the factory 3-finger differential flange, eliminating the need for adapter plates and preserving the factory pinion lash settings. Installation is straightforward—simply unbolt the factory 2-piece shaft, install the 1-piece shaft with included hardware, and go. The only required modification is grinding down the tip of the rear seatbelt bolt for adequate clearance.

Performance Benefits:

  • Rated to handle 1000HP and capable of 997 lb-ft of torque
  • Weighs approximately 21 lbs, significantly lighter than the factory unit
  • Eliminates the problematic factory carrier bearing that moves violently under hard acceleration
  • Improved throttle response and smoother power delivery
  • Reduces drivetrain power loss and eliminates wheel hop
  • Maximum top speed rating of 155 MPH

This driveshaft upgrade is one of the most noticeable performance enhancements available for the 2004 GTO, providing enhanced durability and improved power transfer throughout the drivetrain. Includes all necessary mounting hardware for installation.
