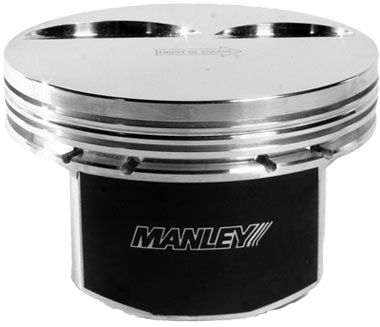

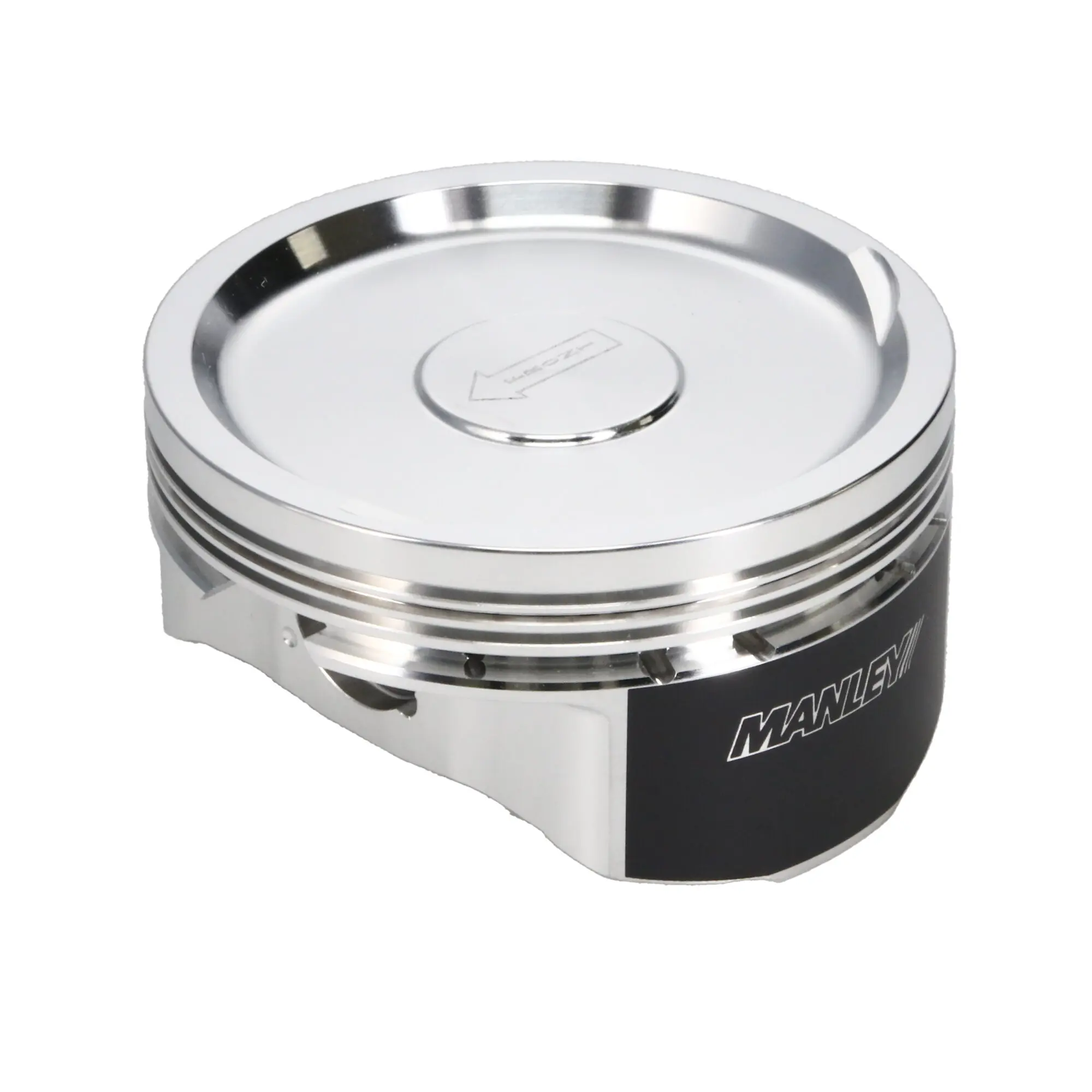

Manley 596770CE-8 Extreme Duty Forged Dish Pistons 4.070 Bore LS Engine

Manufacturer

Part Number

596770CE-8
Black Friday Price

$1,124.07

2 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 596770CE-8 Extreme Duty Piston Set is engineered for high-performance Chevrolet LS1, LS2, LS3, LS6, LS7, and LS9 engine builds. These forged pistons feature a 4.070-inch bore, 1.065-inch compression height, and a 31cc dish design for optimized compression ratios in forced induction and naturally aspirated applications.

Key Specifications:

  • Bore: 4.070 inches
  • Compression Height: 1.065 inches
  • Dish Volume: -31cc
  • Piston Weight: 416 grams each
  • Recommended Stroke: 4.100 inches
  • Recommended Rod Length: 6.125 inches
  • Ring Package: 1.5mm / 1.5mm / 3mm (rings sold separately)

Premium Construction and Features:

  • Forged from high-strength 2618 aluminum alloy for extreme durability
  • Upgraded 9310 alloy tool steel wrist pins with .210-inch wall thickness (2.300-inch length)
  • Moly-coated skirts reduce friction and wear
  • Offset wrist pin design for quieter operation
  • Pressure balance grooves for optimal ring seal
  • Round wire locks included
  • Unique one-fixturing manufacturing ensures perfect ring groove to skirt squareness

This complete set includes 8 pistons with all necessary hardware. Compression ratios are calculated at 0.00-inch deck clearance with a 9.240-inch deck height and .042-inch compressed head gasket. Ideal for street performance, racing, and power-adder applications where strength and reliability are critical.

Products specifications

Piston Quantity

8

Weight

416

Make

Chevrolet

Engine

LS

Bore Diameter

4.070

Compression Height

1.065

Engine Type

ICE

Product Type

Engine Piston Kit

Piston Volume

-31.00

Piston Series

Platinum Series

Piston Sub-Series

Extreme Duty

Title

Manley Piston Set, PIST-4.070/1.065CD/31ccDISH E/D
