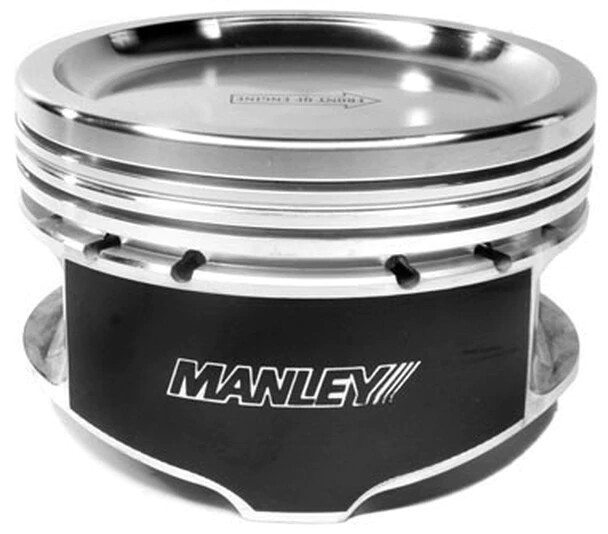

Manley 599060CE-8 Platinum Series Extreme Duty Tall Deck LS Piston Set 4.185" Bore -11cc Dish

The Manley 599060CE-8 is a Platinum Series Extreme Duty forged piston set designed for tall deck Chevrolet LS stroker engine builds.

Machined from high-strength 2618 alloy forgings, these Extreme Duty (CE) pistons deliver the durability needed for power-adder, forced induction, and high-output naturally aspirated builds. The included 9310 alloy wrist pin (P/N 42528, 2.500" x .210" wall) provides additional strength over standard chrome moly pins.

Key Features:

• Bore: 4.185"
• Compression Height (CD): 1.315"
• Crown Volume: -11cc Dish
• Pin Diameter: .927"
• Series: Platinum Extreme Duty (CE)
• Forged from domestic 2618 high-strength alloy for maximum durability in extreme applications
• Offset wrist pin design reduces piston slap and noise at startup
• Proprietary single-fixturing manufacturing method ensures precise ring groove-to-skirt squareness for optimal ring seal
• Moly-coated skirts reduce friction and extend service life
• 1.5mm / 1.5mm / 3mm ring groove configuration
• 9310 alloy wrist pin included (Extreme Duty upgrade over standard chrome moly)
• Round wire locks and pressure balance grooves included
• Designed for LSX block, RHS, and tall deck LS applications with 4.250" stroke

The Manley Platinum Series remains the choice of professional engine builders worldwide for its precise tolerances, superior alloy materials, and proven performance in both street and competition environments. Piston rings are sold separately.
