Manley 39565RH Big Block Chevy CID Rotating Assembly Stroke Bore Dome - 565 4.250 4.600 43cc

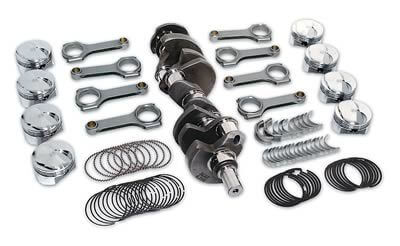

The Manley 39565RH is a high-compression rotating assembly engineered for Big Block Chevy applications, displacing 565 cubic inches with a 4.250-inch stroke and a 4.600-inch bore. Designed for serious street, strip, and race engine builds, this kit delivers everything needed for a precision bottom-end foundation in a single matched package.

At the heart of this assembly is a 4340 forged steel crankshaft paired with 4340 forged steel H-beam connecting rods featuring 7/16-inch ARP 8740 cap screws (rated to 900 hp), with an upgrade path to ARP 2000 cap screws for applications requiring up to 1,500 hp. The pistons are 2618 forged aluminum Platinum Series units with Premium Chrome Moly wrist pins and a +43cc dome configuration, delivering high-compression performance suitable for naturally aspirated race applications. The dome pistons are laterally gas ported for improved ring seal under high-boost or high-RPM conditions.

Key Features:

• 4340 forged steel crankshaft — 4.250-inch stroke
• 4340 forged steel H-beam connecting rods — 6.385-inch length with 7/16-inch ARP 8740 cap screws
• 2618 forged aluminum Platinum Series pistons — 4.600-inch bore, +43cc dome, laterally gas ported
• Premium Chrome Moly wrist pins included
• Horsepower range: 900 hp (ARP 8740) / up to 1,500 hp (optional ARP 2000 cap screws)
• Compression ratio: 14.9:1 with 58cc heads / 14.0:1 with 64cc heads / 13.2:1 with 76cc heads
• Fits 9.800-inch short deck Big Block Chevy blocks
• Kit is precision internally balanced by Manley in-house

Manley Performance has been a trusted name in high-performance engine components since 1966, bringing race-proven engineering to both professional and enthusiast builders. The 39565RH rotating assembly is an ideal choice for anyone building a high-displacement, high-compression Big Block Chevy for street/strip or all-out competition use.
