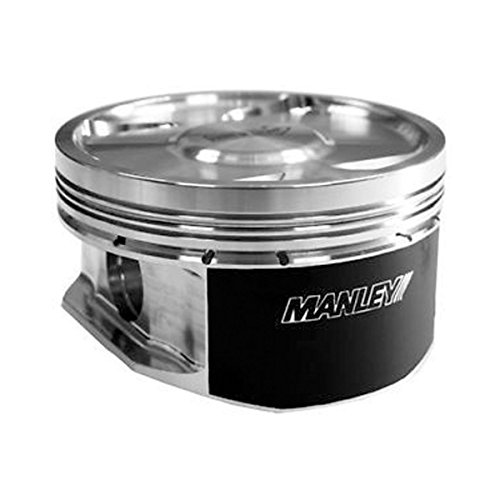

Manley 596575C-8 Platinum Series Piston Set 4.075" Bore 1.065" Compression Height LS Engine

The Manley 596575C-8 Platinum Series Piston Set is engineered for high-performance Chevrolet LS engine builds, featuring a 4.075-inch bore diameter and 1.065-inch compression height. This 8-piston set features a -10cc dish design with moly skirt coating for reduced friction and enhanced durability.

Premium Construction and Materials:

• Forged from domestic 2618 alloy for superior high-temperature strength and fatigue resistance
• Precision cam and barrel skirt profiles for maximum power while protecting cylinder walls
• Premium chrome moly wrist pins included (.927" diameter, 2.300" length)
• Round wire locks and pressure balance grooves included
• Piston weight: 415 grams

Advanced Manufacturing Features:

• Unique single-operation fixturing ensures perfect ring groove to skirt squareness
• Multi-step ring groove machining for enhanced ring seal and increased power
• Contour forgings with no grain-interrupting internal milling
• Designed for 6.125" connecting rod length and 4.100" stroke applications
• Valve pocket depth: .185" intake / .130" exhaust

Trusted by professional engine builders and elite tuners worldwide, Manley Platinum Series pistons deliver exceptional reliability and performance for demanding LS engine applications. Compatible with Manley ring set part number 46117-8.
