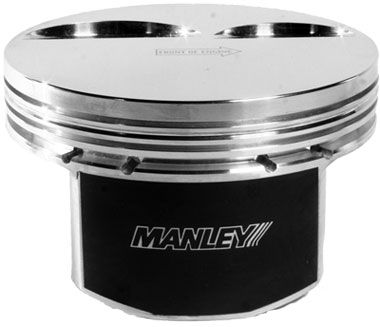

Manley 566070C-8 Turbo Tuff LS Forged Piston Set 4.070 Bore -20cc Dish

Manufacturer

Part Number

566070C-8
Black Friday Price

$968.15

2 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 566070C-8 Turbo Tuff pistons are machined from high strength 2618 material and are designed for extreme duty applications. This 8-piston set is engineered specifically for Chevrolet LS engines including LS-1, LS-2, LS-3, LS-6, and LS-92, offering exceptional durability for turbocharged, supercharged, and high-boost applications.

Key Specifications:

  • Bore: 4.070 inches
  • Compression Height: 1.065 inches
  • Rod Length: 6.125 inches (compatible)
  • Stroke: 4.100 inches (compatible)
  • Dish Volume: -20cc
  • Piston Weight: 456 grams each
  • Wrist Pin Size: 0.927 inch diameter
  • Ring Package: 1.5mm/1.5mm/3.0mm (rings not included)

Turbo Tuff Features:

  • 2618 high strength material forgings for extreme duty applications
  • Offset wrist pin design for reduced piston rock and quieter operation
  • Machined for reluctor wheel clearance on LS engines
  • Mahle coated skirts for reduced friction and wear
  • Increased corner cross section and thicker skirt walls for enhanced strength
  • Forced pin oiling and pressure balance grooves
  • Round wire locks included with each piston
  • 0.175 inch valve trough depth for performance valve clearance

The Turbo Tuff series represents Manley's most robust piston design, engineered to withstand the extreme cylinder pressures generated by forced induction systems. The -20cc dish configuration helps manage compression ratios in boosted applications, making this set ideal for serious street and racing LS builds running turbos, superchargers, or nitrous oxide systems.

Note: Piston rings sold separately. Round wire wrist pin locks are included with this set.

Products specifications

Piston Quantity

8

Weight

456

Make

Chevrolet

Engine

LS

Bore Diameter

4.070

Compression Height

1.065

Engine Type

ICE

Product Type

Engine Piston Kit

Piston Volume

-20.00

Piston Sub-Series

Standard

Piston Series

Turbo Tuff?

Title

Manley Piston Set, PIST-4.070/1.065CD/20ccDISH
