QA1 52622-D750 Front Coilover Crossmember Conversion System 1963-72 C10 Double Adjustable 750lb Springs

(1963-1972 Chevrolet C10 Pickup)

Manufacturer

Part Number

52622-D750
Black Friday Price

$4,790.95

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

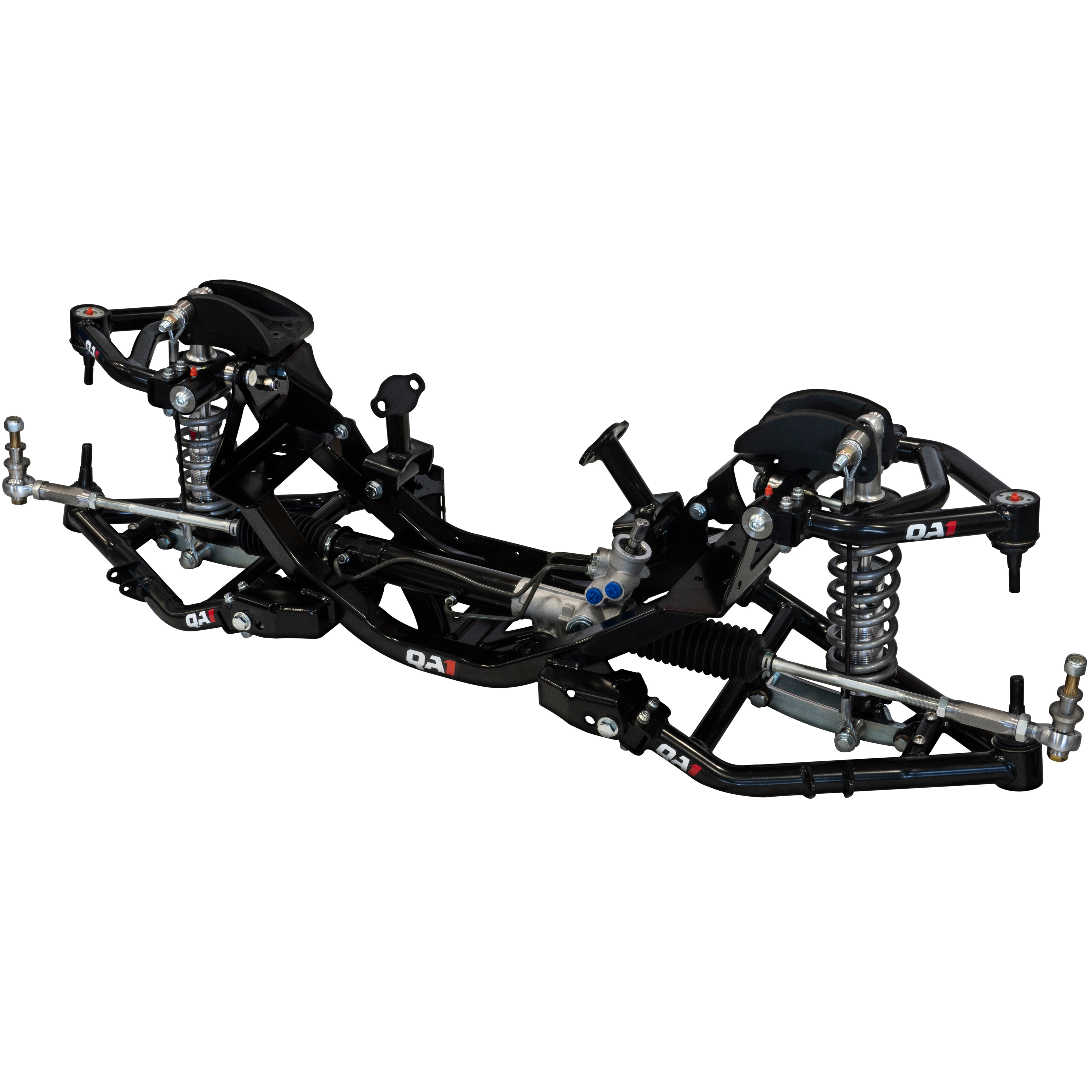

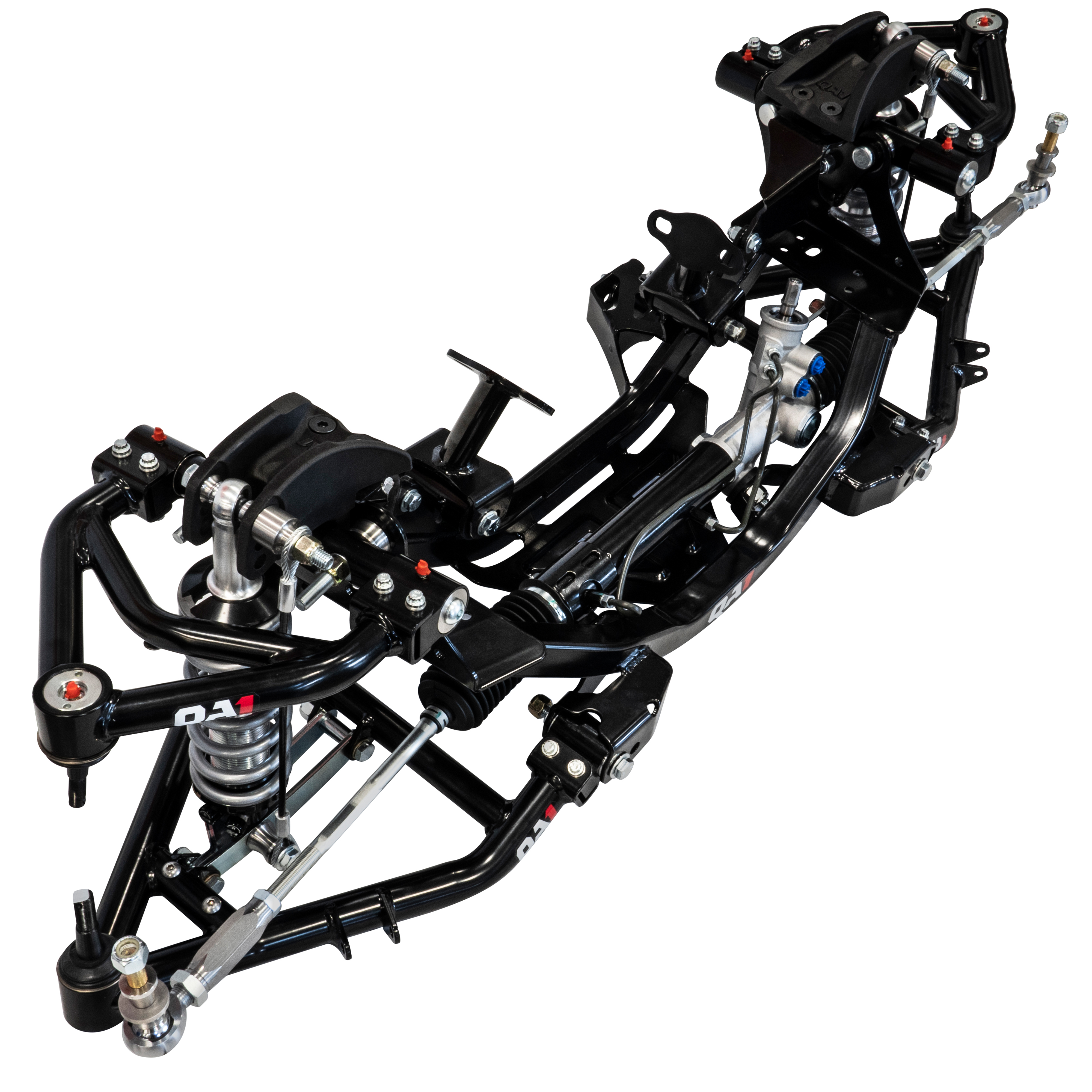

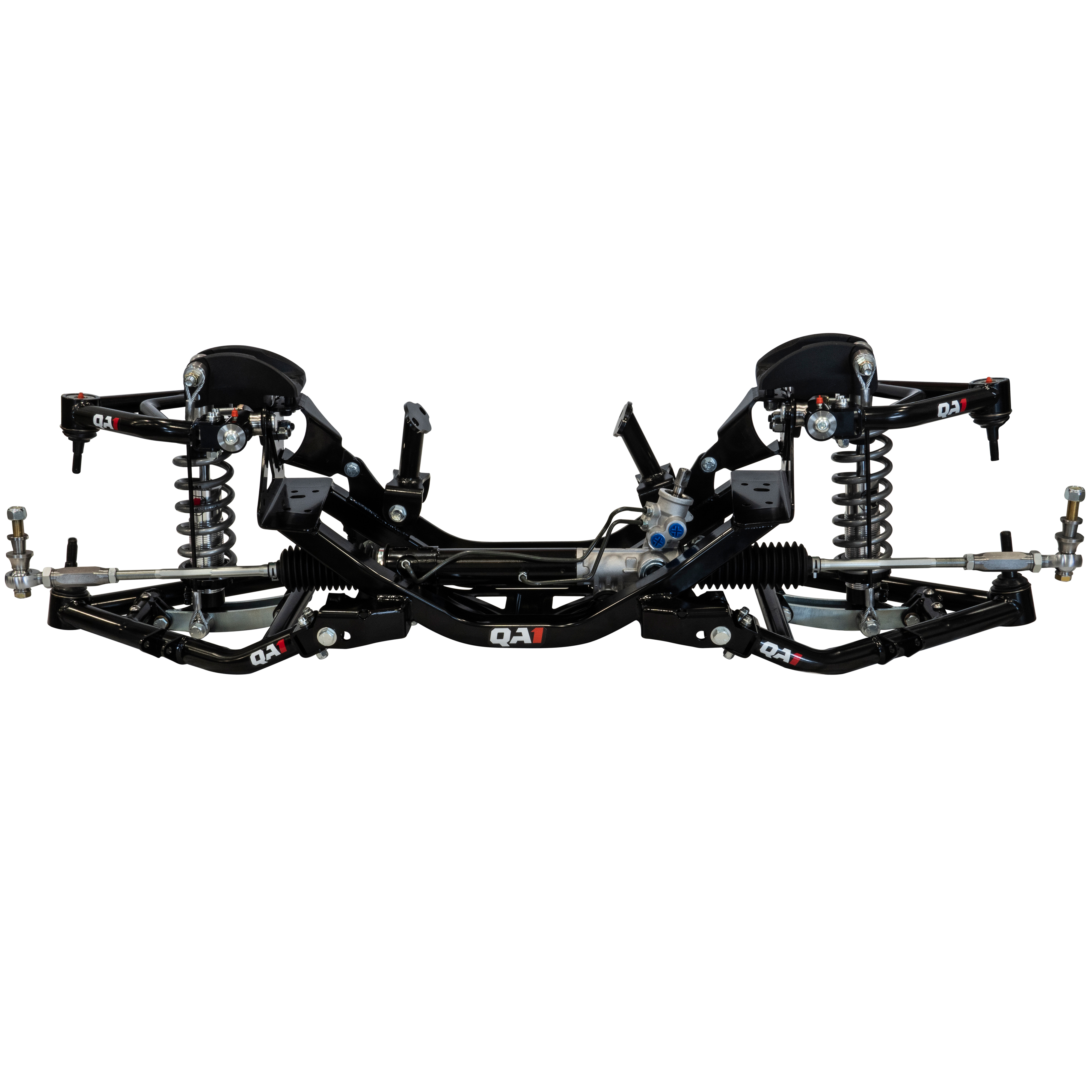

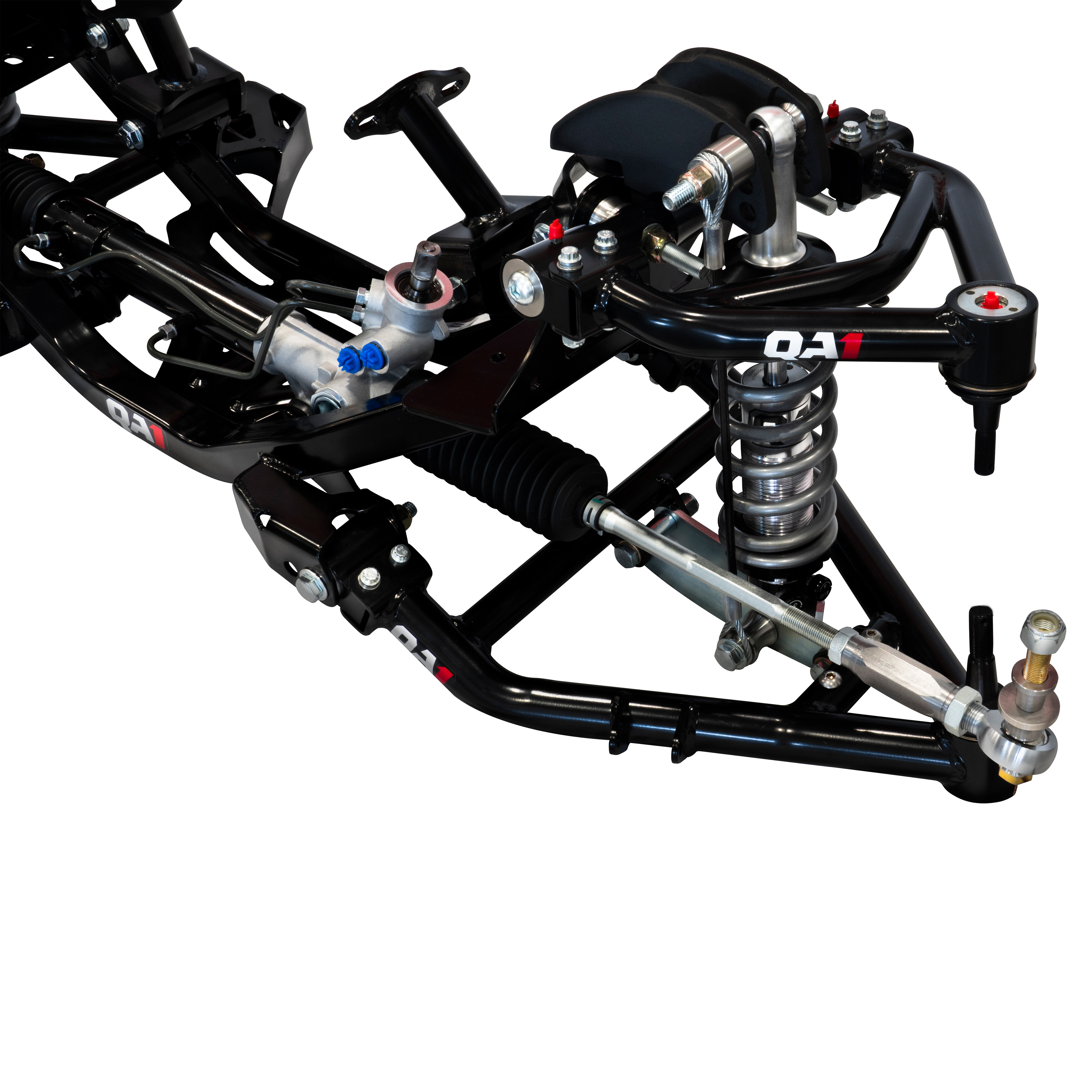

The QA1 52622-D750 is a complete front suspension conversion system that transforms your 1963-1972 Chevy C10 or GMC C-15 pickup with coilover suspension, a tubular crossmember, and hydraulic power rack-and-pinion steering. This comprehensive kit delivers adjustable ride height with up to 8 inches of drop while reducing weight by 140 pounds compared to stock components.

Key Features:

  • Double-adjustable coilover shocks with independent rebound and compression tunability, featuring 18 clicks of adjustment per knob for precise suspension tuning
  • 750 lb/in coilover spring rate with black finish springs
  • Tubular steel upper and lower control arms with black powder coat finish
  • Black powder coated steel crossmember with hydraulic power assist aluminum rack-and-pinion steering
  • Includes upper and lower ball joints for complete installation
  • Bolt-in installation with no cutting or welding required

Performance Benefits:

  • Powered rack-and-pinion steering provides quicker, tighter steering response with increased steering angle for larger wheels and tires
  • Raised crossmember design makes the undercab frame rails the truck's lowest point with increased upper shock travel for excellent ride quality even at lowered heights
  • Compatible with 15-inch and larger wheels, though 18-inch wheels are recommended to optimize bump steer settings

What's Included: This complete kit includes tubular upper and lower control arms, double-adjustable coilover shocks, 750 lb/in coilover springs, upper shock brackets, tubular crossmember, hydraulic power rack-and-pinion steering assembly, ball joints, and all necessary mounting hardware.

Installation Notes: Requires 1973-1987 C10 spindles (not included). Compatible with optional modular engine mounts sold separately for small block Chevy, big block Chevy, and LS engine applications. QA1 double-adjustable shocks are eligible for a limited lifetime warranty when registered at QA1.net/Warranty. Proudly made in Lakeville, Minnesota.

Products specifications

Fits

1963-1972 Chevrolet C10 Pickup

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
