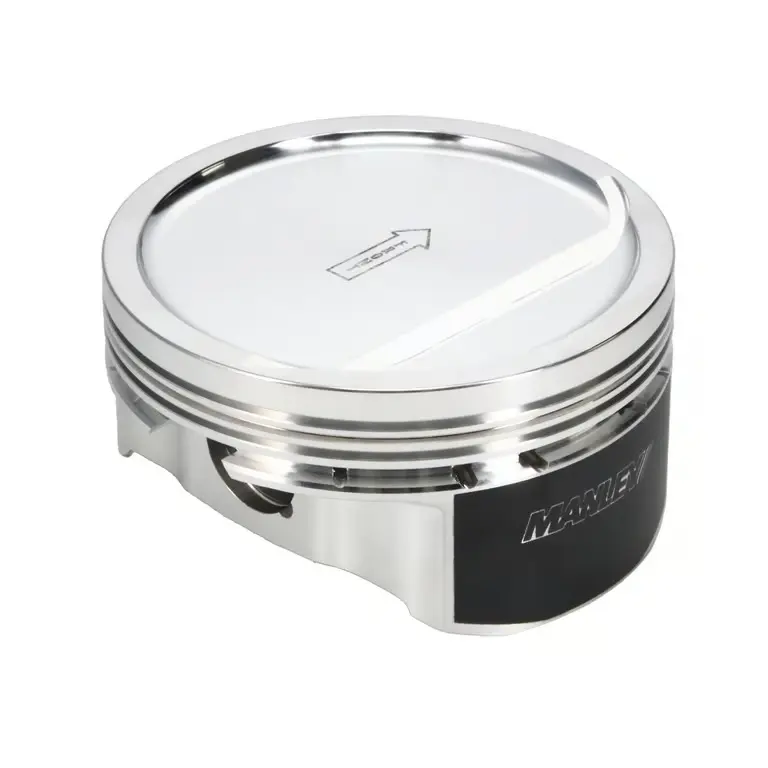

Manley 596340CE-8 Platinum Series Extreme Duty Forged Piston Set 4.165in Bore 18cc Dish

Manufacturer

Part Number

596340CE-8
Black Friday Price

$1,124.07

2 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 596340CE-8 is an 8-piece Platinum Series Extreme Duty (E/D) forged piston set featuring a 4.165-inch bore diameter, 1.115-inch compression distance, and an 18cc dish top design. Built for high-performance and power-adder applications, these pistons are a top choice for serious engine builders seeking durability and precision in large-bore builds.

Key Features:

  • Bore Diameter: 4.165 inches
  • Compression Distance (Pin Height): 1.115 inches
  • Top Configuration: 18cc Dish
  • Series: Extreme Duty (E/D) — upgraded 9310 alloy wrist pin included
  • Forged from 2618 high-strength aluminum alloy for superior resistance to heat and stress
  • Contour Forgings provide an optimal balance of strength and weight without internal milling that disrupts grain structure
  • Proprietary multi-step top ring groove machining for precise groove geometry, flatness, and finish — maximizing ring seal and efficiency
  • Lateral gas ports for improved ring sealing under high-boost or nitrous conditions
  • Full banded skirt design with anti-friction coating for enhanced skirt stability and reduced friction
  • Pressure balance groove for consistent ring performance
  • Wrist pins and locks included

The Extreme Duty designation indicates these pistons include a premium 9310 alloy wrist pin (P/N 42528, 2.500" x .210" wall), engineered for large-bore applications in the 4.125"–4.185" range. Ideal for supercharged, turbocharged, and nitrous-fed engines demanding the highest level of internal component reliability.

Products specifications

Piston Quantity

8

Weight

460

Make

Chevrolet

Engine

LS

Bore Diameter

4.165

Compression Height

1.115

Engine Type

ICE

Product Type

Engine Piston Kit

Piston Volume

-18.00

Piston Series

Platinum Series

Piston Sub-Series

Extreme Duty

Title

Manley Piston Set, PIST-4.165/1.115CD/18ccDISH E/D
