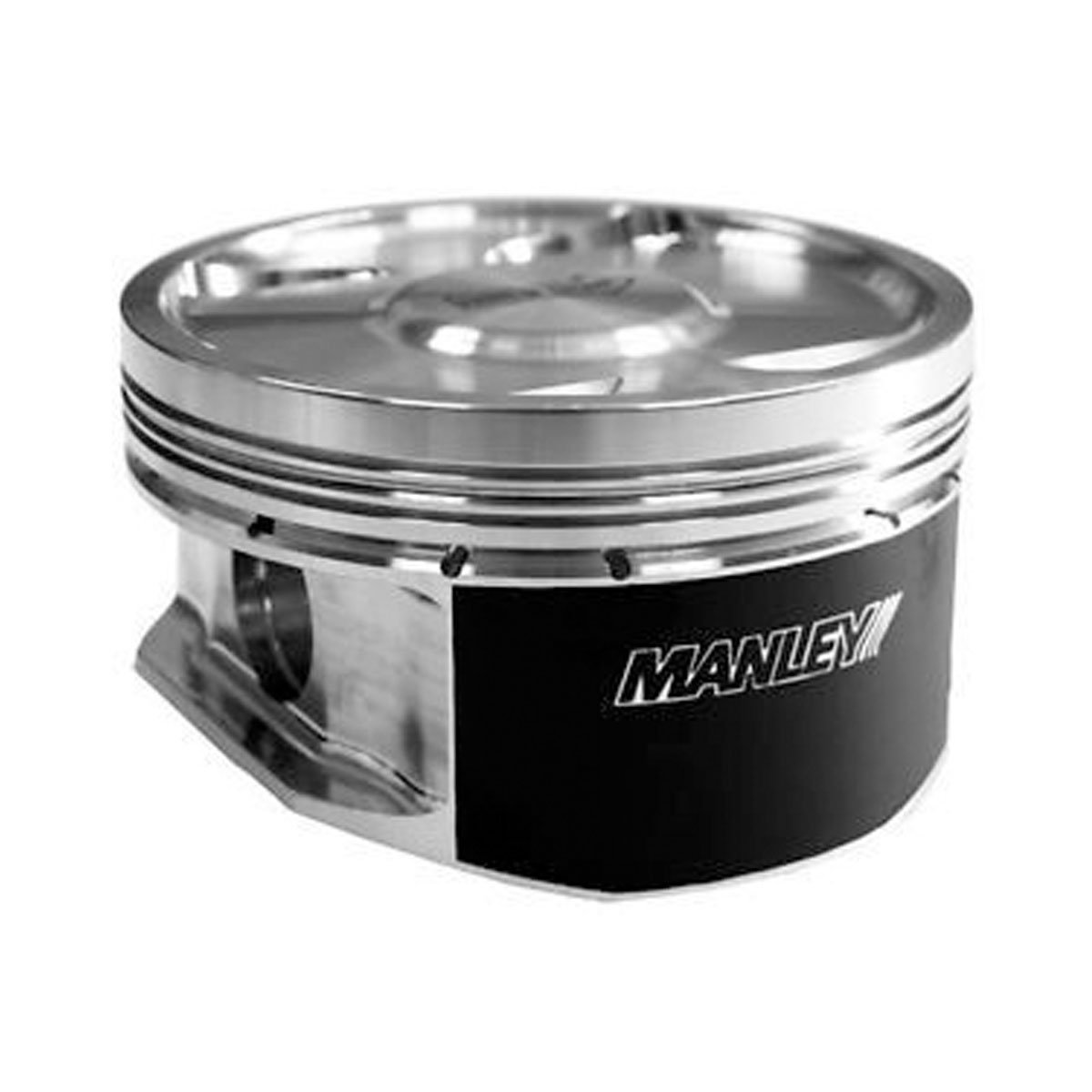

Manley 594530CE-8 Extreme Duty Forged Piston Set 3.582in Bore Dish Top

The Manley 594530CE-8 is an Extreme Duty Series forged piston set featuring a 3.582-inch bore diameter and 1.220-inch compression distance with a dish-top combustion chamber design.

Key Features:

• 3.582" Bore Diameter with precision-machined tolerances for optimal ring seal
• 1.220" Compression Distance (CD) for precise deck clearance tuning
• Dish-Top Crown Design to manage compression ratio in high-boost or power-adder builds
• Extreme Duty (E/D) Series construction using high-strength 2618 aluminum alloy forging
• Contour Forging process delivers optimal strength-to-weight ratio without grain-interrupting internal milling
• Manley's proprietary multi-step top ring groove machining for precise groove geometry, flatness, and finish
• Includes wrist pins and lock rings

Manley's Extreme Duty Series pistons are purpose-built for forced induction, nitrous oxide, and other power-adder applications. The 2618 alloy construction provides superior fatigue resistance compared to 4032 alloy, making these pistons an excellent choice for demanding race and high-performance street builds.
