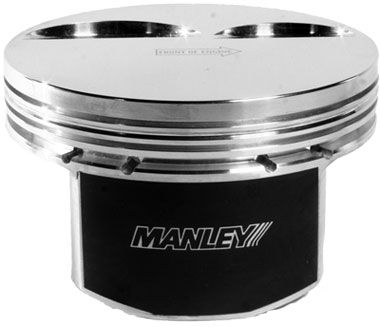

Manley 596505CE-8 Platinum Series Forged Piston Set LS Bore Dish - 4.005 10cc

Manufacturer

Part Number

596505CE-8
Black Friday Price

$1,124.07

In Stock (10)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 596505CE-8 is a Platinum Series Extreme Duty forged piston set engineered for LS-1, LS-2, LS-3, LS-6, and LS-92 engines. These high-performance pistons feature a 4.005" bore diameter with a -10cc dish design and 1.065" compression distance, making them ideal for performance builds requiring precise compression control.

Premium Construction: Manufactured from domestic 2618 aluminum alloy forgings, these pistons deliver superior strength and thermal stability for demanding applications. The forged construction provides exceptional durability for naturally aspirated, supercharged, turbocharged, and nitrous oxide applications.

Advanced Engineering Features: Manley's unique fixturing process machines the skirt and ring grooves in a single operation, ensuring perfect ring groove to skirt squareness for maximum ring seal and horsepower. The pistons feature proven cam and barrel skirt profiles that maximize power while remaining gentle on cylinder walls, plus moly-coated skirts for reduced friction and enhanced wear resistance.

The pistons accommodate a 1.5mm, 1.5mm, 3mm ring package with .185"/.130" valve pocket depths, supporting maximum valve sizes of 2.165" intake and 1.625" exhaust. Each piston weighs approximately 395 grams.

Technical Specifications: Designed for 6.125" rod length and 4.100" stroke applications with a .927" wrist pin diameter. The offset wrist pin design ensures quiet operation during startup. Compression ratios should be calculated at 0.00" deck clearance with a 9.240" deck height and .042" thick compressed head gasket. Piston rings are sold separately.

Products specifications

Piston Quantity

8

Weight

395

Make

Chevrolet

Engine

LS

Bore Diameter

4.005

Compression Height

1.065

Engine Type

ICE

Product Type

Engine Piston Kit

Piston Volume

-10.00

Piston Series

Platinum Series

Piston Sub-Series

Extreme Duty

Title

Manley Piston Set, PIST-4.005/1.065CD/10ccDISH E/D
