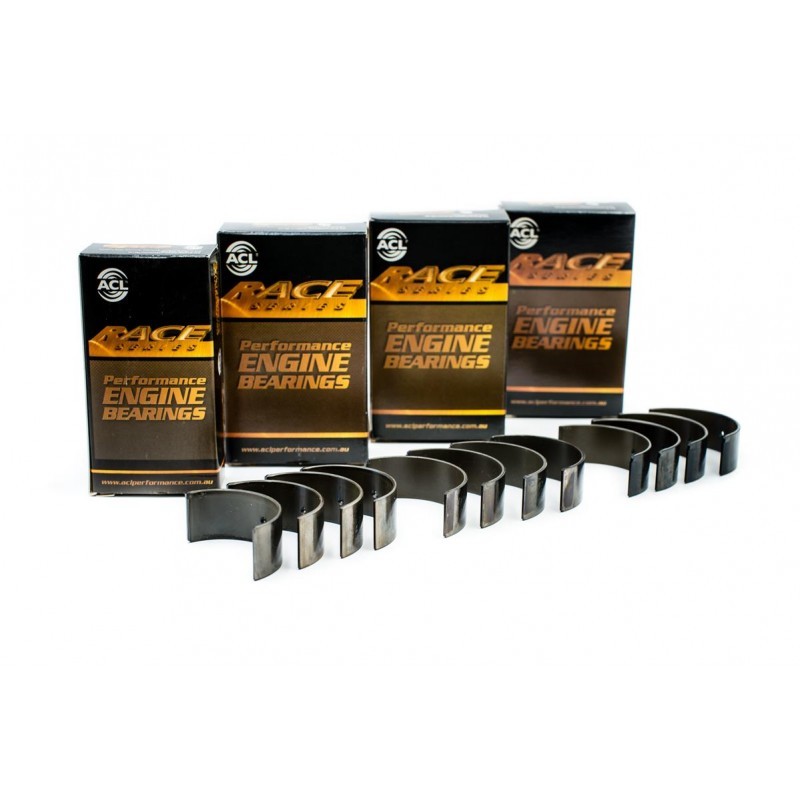

ACL Bearings 5M8088HX-STD Race Series Main Bearing Set for Toyota/Lexus 1UZ/2UZ/3UZ V8 Engines

Manufacturer

Part Number

5M8088HX-STD
Black Friday Price

$199.79

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL Bearings 5M8088HX-STD is a high-performance Race Series main bearing set engineered for Toyota and Lexus V8 engines, including the 1UZFE (3969cc/4.0L), 2UZFE (4664cc), and 3UZFE (4293cc) applications. This standard size bearing kit is designed for extreme endurance under demanding racing conditions and high-RPM applications.

HX Series Extra Clearance Design:

The "HX" designation indicates this set provides an additional 0.001" (0.025mm) of oil clearance compared to standard H-series bearings, making it ideal for high-performance builds running increased RPM, forced induction, or extreme power levels. The bearing wall thickness is 0.0005" thinner than standard H-series bearings to achieve this enhanced clearance while maintaining all other performance characteristics.

Advanced Tri-Metal Construction:

  • Multi-layered tri-metal copper alloy with lead, tin, copper, and nickel for superior strength and seizure resistance
  • High-strength overlay plate with reduced thickness for improved fatigue properties
  • Hardened steel backing for enhanced support and bearing retention
  • Elimination of flash plating on bearing backs for improved heat transfer and grip

Race-Proven Engineering Features:

  • Increased crush for improved bearing retention in the housing
  • Increased eccentricity to compensate for bore distortion at high RPM
  • Extended 3/4 groove design optimizes bearing load surface area and oil flow
  • Enlarged inner diameter chamfers accommodate large fillet radius performance crankshafts
  • Manufactured to exact tolerances for reliable fit and consistent clearances

ACL is a trusted Original Equipment supplier whose bearings are found in countless performance and racing applications worldwide. This Race Series bearing set supersedes part number 5M8092H and represents the premium choice for engine builders demanding maximum reliability under the harshest racing conditions. Professional measurement of bearing tolerances is required before installation.
