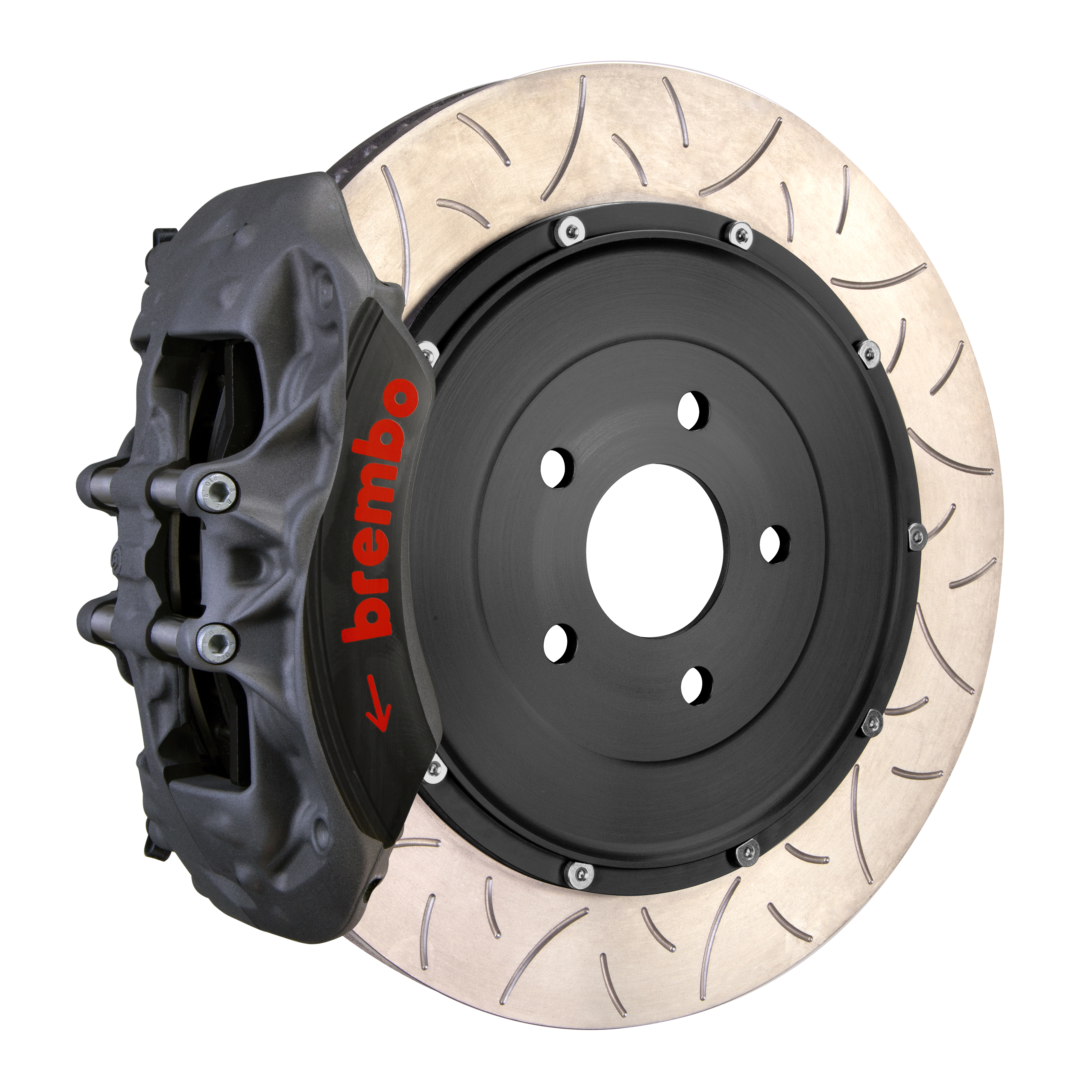

Brembo 3K3.9059AX PISTA 6-Piston Front Racing Brake Kit 380x35mm 2-Piece TY3 Discs

The Brembo PISTA 3K3.9059AX is a professional-grade racing brake system designed for serious track and competition use. This complete front axle kit features forged 6-piston calipers paired with 380x35mm 2-piece Type 3 (TY3) slotted brake discs, delivering exceptional stopping power and thermal management for high-performance applications.

Key Features:

• Forged 2-piece caliper construction with 6-piston configuration for maximum clamping force
• 380mm diameter x 35mm thick 2-piece disc assembly with lightweight aluminum bell/hat
• 53mm annulus height (53a specification) for optimal heat capacity
• Type 3 (TY3) slotting pattern derived from GT endurance racing for superior pad bite and consistent performance
• Advanced high-carbon alloy disc material with corrosion-resistant plating
• 72-vane curved ventilation design for enhanced heat dissipation
• Floating D-bobbin mounting system allows controlled thermal expansion
• Includes proprietary Brembo stainless steel braided brake lines by Goodridge
• CNC-machined billet caliper mounting adapters and all necessary installation hardware included
• Pre-assembled for ease of installation

Racing-Proven Technology:

The TY3 Type 3 slotting pattern features variable groove geometry engineered through CFD analysis to continuously refresh the pad friction surface, evacuate gases at high temperatures, and maintain optimal disc-pad contact. This results in improved initial bite, increased pedal sensitivity, greater fade resistance, and more progressive braking modulation under extreme racing conditions.

This is a complete front axle brake system designed for competition use and requires professional installation. Some applications may require modification or removal of OEM dust shields or backing plates.
