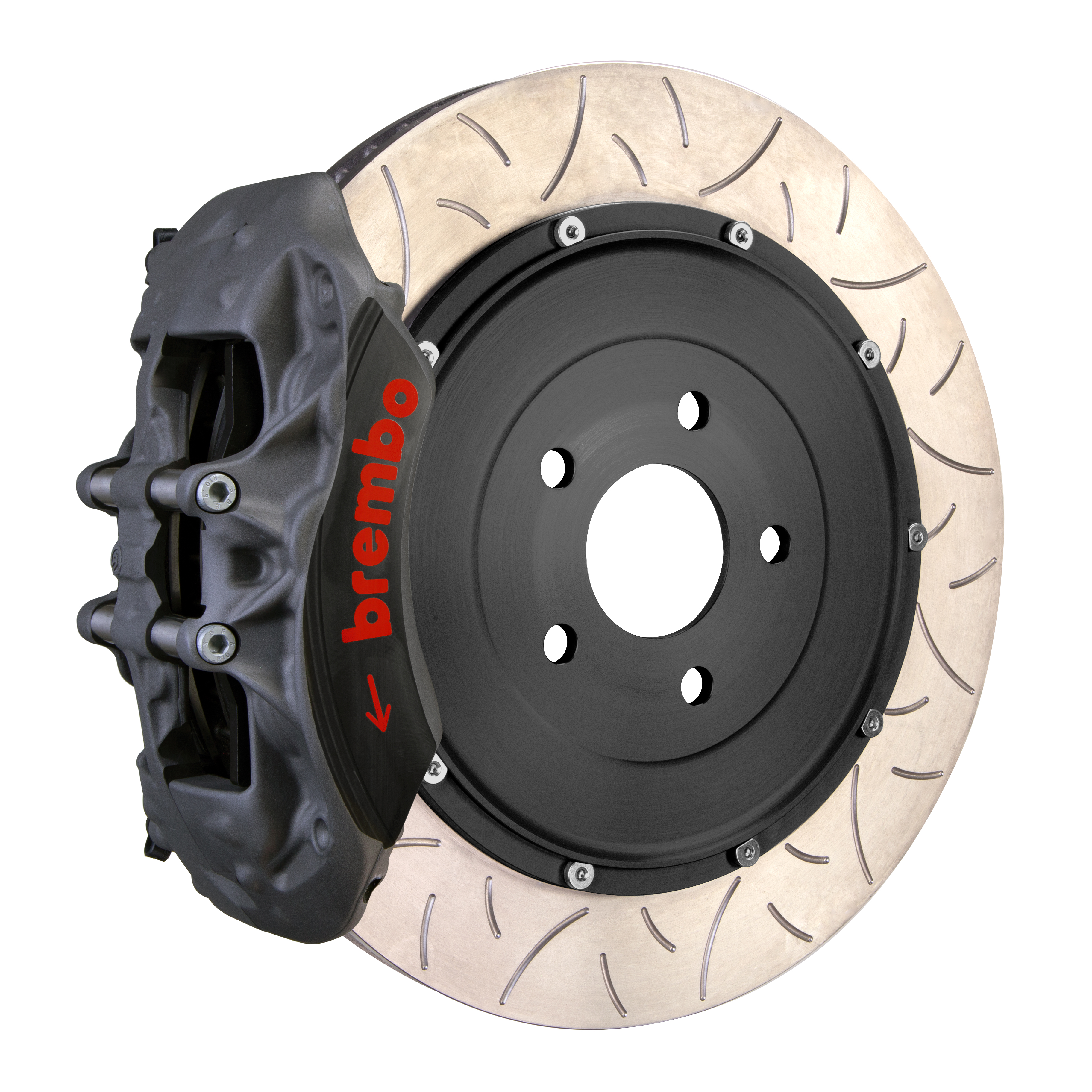

Brembo 3K3.9058AZ PISTA Front Brake Kit 380x35x53mm TY3 2-Piece Rotors 6-Piston

The Brembo PISTA 6 TY3 front brake system represents professional-grade racing brake technology engineered for serious track use and competitive motorsports. This complete axle set features forged 2-piece calipers paired with advanced 2-piece brake rotors designed to deliver exceptional stopping power and thermal management under extreme racing conditions.

Caliper Specifications:

• Forged 2-piece caliper body combines the appearance of monobloc design with cost-effective construction
• 6-piston configuration with inner pressure seal and stainless steel inserts
• Radial mount design for optimal caliper positioning and rigidity
• Hard anodized finish for corrosion resistance and heat dissipation

Rotor Specifications:

• 380mm diameter x 35mm width x 53mm annulus (15-inch rotors)
• TY3 slotting pattern derived from GT and endurance racing, including the 24 Hours of Le Mans
• 2-piece construction with high-carbon alloy iron rotor ring and aluminum hat
• Floating D-bobbin mounting system allows thermal expansion without deformation
• 72-vane curved vane design for maximum heat dissipation
• Corrosion-resistant plating for durability

Key Features:

• Type 3 slotting continuously refreshes pad surface, removes glazing, and maintains consistent bite
• Pre-assembled complete kit includes proprietary Brembo stainless steel braided brake lines
• All necessary mounting hardware included for installation
• Designed for professional racing applications meeting SCCA, NASA, Grand-Am, and PCA requirements

The TY3 disc design features aggressive grooves of varying sizes and orientations that optimize disc-to-pad contact under race conditions. This proven motorsport technology ensures high initial bite with excellent modulation throughout extended track sessions. The 2-piece rotor construction significantly reduces unsprung weight while providing superior thermal capacity compared to OEM systems.

Note: Many PISTA systems require modification or removal of OEM dust shields or backing plates. Professional installation recommended for proper brake system integration and bleeding.
