The Fox Racing Shocks 981-30-604-3 is a Factory Race Series Coil-Over Internal Bypass shock that packages Fox's patented Internal Bypass technology in a coil-over architecture to provide position sensitive damping while simultaneously suspending the vehicle's weight in a single shock, making it an ideal solution for extreme off-road applications where fitment is critical or class rules require a single shock per corner.
Advanced Internal Bypass Technology:
Fox Internal Bypass Coilovers use a unique design that allows for a high flow piston and tube with reed valves to provide position sensitive damping – just like a 3-tube bypass shock. This innovative design delivers race-proven damping performance in a compact, easy-to-mount package that combines suspension control with integrated spring support.

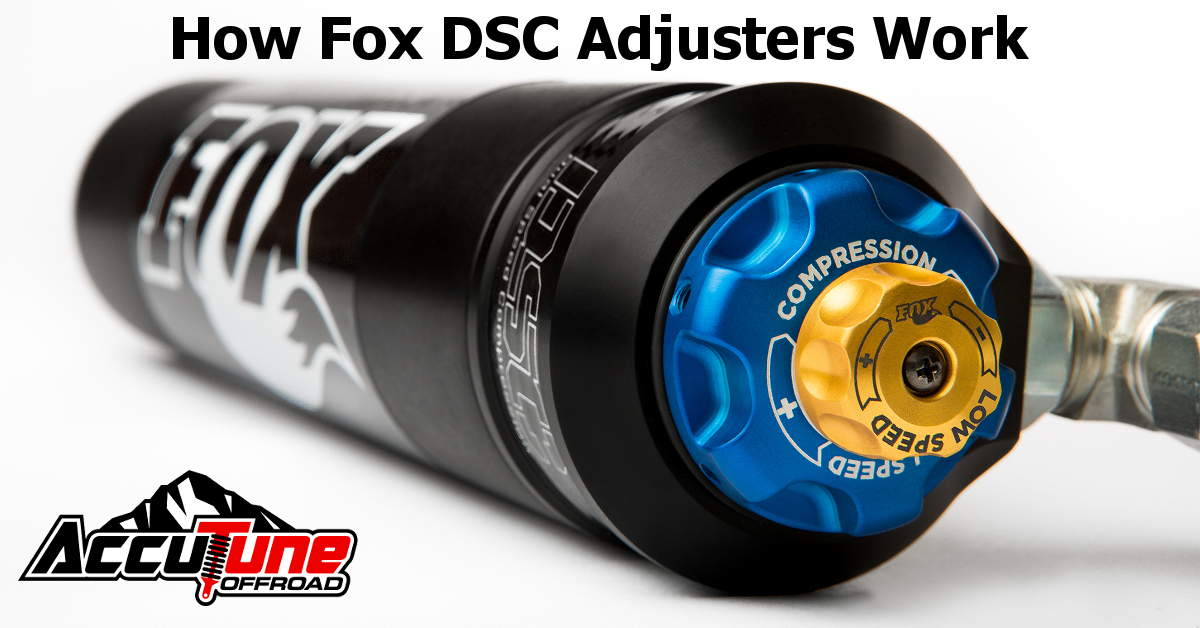

Dual Speed Compression (DSC) Adjuster:
The DSC adjuster features separate knobs for low-speed and high-speed compression tuning, allowing 10 separate low-speed and 12 high-speed compression levels with a simple twist of the adjuster knobs. This provides tool-free adjustment to fine-tune suspension performance for varying terrain, vehicle weight, and driving conditions.
Premium Construction Features:
- Dual coated body with proprietary FOX Grey Cerakote protective ceramic coating over zinc plated basecoat for improved corrosion resistance and durability
- 7/8" hard chrome plated 17-4 H900 stainless steel shafts for maximum strength and rock damage resistance
- Black anodized, CNC machined 6061-T6 billet aluminum components throughout
- Orange anodized billet aluminum FAV cap
- Black anodized aluminum reservoir increases cooling efficiency
- 3.0" body diameter with 16" travel length
Adjustability:
- Dual Speed Compression adjustment (low-speed and high-speed)
- Spring preload adjustment
- Dual-rate spring crossover point adjustment
- Rebound and compression piston valving
This shock absorber is designed for serious off-road racing and high-performance applications, utilizing the same technology found in trophy truck suspension systems. The remote reservoir design provides superior heat dissipation for consistent performance during extended high-speed runs. Coil springs sold separately.
