Fox Racing Shocks 981-25-409-L Factory Race 2.5 x 12 External Bypass 3-Tube Remote Shock Left

Manufacturer

Part Number

981-25-409-L
Black Friday Price

$1,509.95

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

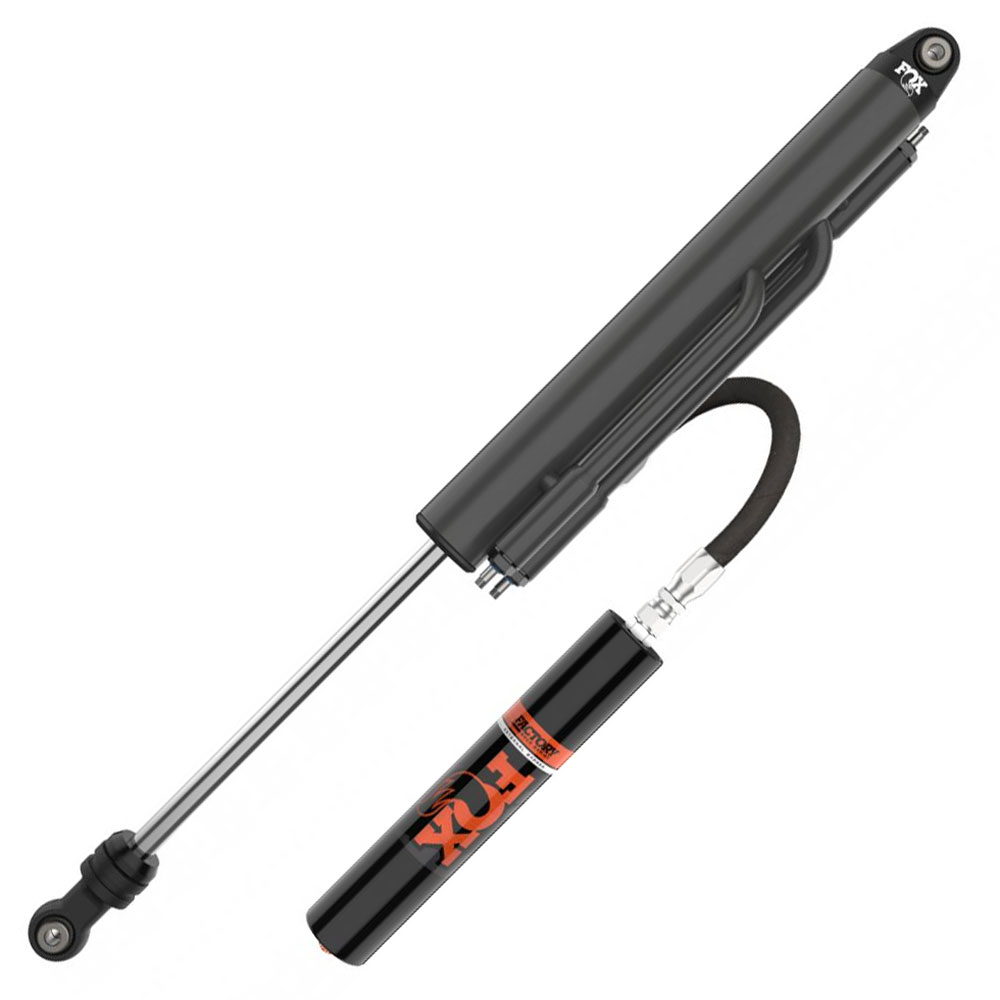

The Fox Racing Shocks 981-25-409-L is a Factory Race Series 2.5-inch external bypass shock absorber featuring 12 inches of travel, a 3-tube bypass configuration, and a remote reservoir — sold individually as the left-side unit. Engineered for serious off-road racing and high-performance off-road use, this shock delivers position-sensitive damping through externally adjustable bypass tubes, giving drivers precise control over suspension behavior at every point in the stroke.

The 3-tube external bypass setup includes 2 compression adjusters and 1 rebound adjuster, allowing independent tuning of the damping curve to match vehicle weight, terrain, and speed. The remote reservoir is connected via a 28-inch hose and houses a 2.5 x 10-inch reservoir to maximize oil and nitrogen capacity for consistent fade-free performance during extended high-speed runs.

Key Features:

  • Dual-coated body finish — proprietary FOX Grey Cerakote® protective ceramic coating over a zinc-plated basecoat for superior corrosion resistance and long-term durability
  • 17-4 H900 hard chrome plated stainless steel shaft for maximum strength and wear resistance
  • Revised Gen 2 clicker adjusters for 3/4-inch bypass tubes with black-anodized adjuster housings and color-coded seals for compression, rebound, and gold valves
  • Black-anodized billet aluminum reservoir clamp and components throughout
  • 2.5-inch shock body diameter with seamless steel construction
  • 0.875-inch shaft diameter with 1.50-inch mounting width between tabs; uses 1/2-inch shock bolts
  • Standard valving: 2,1 Compression / 70 Rebound (custom valving options available)
  • Fully rebuildable and serviceable — custom valving layouts available through FOX
  • Left and right shocks are mirrored from each other

Dimensions:

  • Travel: 12.0 inches
  • Extended Length: 32.500 inches
  • Collapsed Length: 20.550 inches
  • Hose Length: 28 inches
  • Reservoir: 2.5 x 10 inches

The Fox Racing Factory Race Series external bypass shock is the cornerstone of a competition-proven suspension system, refined through decades of desert racing, rock crawling, and off-road competition worldwide. Whether built for a race truck, prerunner, or purpose-built off-road vehicle, the 981-25-409-L delivers the damping precision and durability that race wins demand.

Products specifications

Mounting

1/2 x 1-1/2

Series

Factory Race

Title

FACTORY RACE 2.5 X 12 EXTERNAL BYPASS (3 TUBE) REMOTE SHOCK (LEFT)

Hose

-10 x 28.00

Bypass Tubes

3

Fox Catalog

OFFROAD

Reservoir Dimensions

2.55 x 10.00
