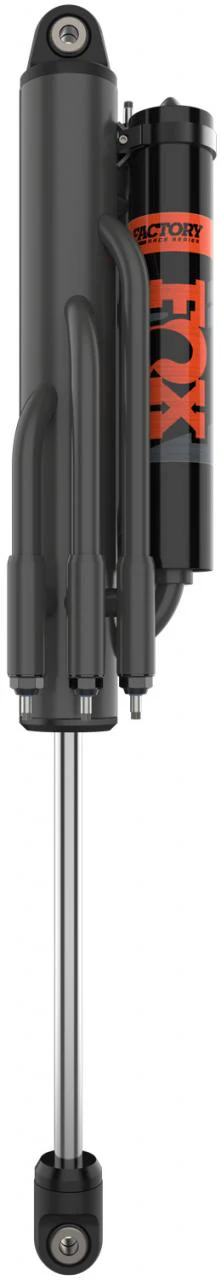

Fox Racing Shocks 981-30-423-L Factory Race 3.0 x 16 External Bypass 4-Tube Piggyback Shock Short Course Left

Manufacturer

Part Number

981-30-423-L
Black Friday Price

$2,184.95

Estimated ship date Wednesday, December 09

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Fox Racing Shocks 981-30-423-L is a Factory Race Series 3.0" x 16" External Bypass Piggyback shock absorber purpose-built for short course off-road racing competition. Sold individually as the left-side unit, this shock is application-specific and tuned to meet short course spec requirements, delivering the race-winning damping performance that Fox Factory Race shocks are known for worldwide.

Fox's external bypass design provides externally adjustable, position-sensitive damping that eliminates cavitation on compression and produces a progressive damping curve. The 4-tube bypass configuration gives racers a wider range of tuning zones across the stroke, allowing precise control over compression and rebound behavior through every section of the course. This results in improved handling predictability, reduced harshness over rough terrain, and better high-speed stability.

Key Features:

  • 3.0" bore body with 16" stroke for maximum travel and damping capacity
  • 4-tube external bypass configuration for advanced, multi-zone position-sensitive damping adjustment
  • Piggyback reservoir with black anodized billet aluminum reservoir clamp for increased oil volume and heat dissipation
  • Dual-coated steel body featuring proprietary FOX Grey Cerakote® ceramic coating over a zinc-plated basecoat for superior corrosion resistance and durability
  • 17-4 H900 stainless steel piston rod — twice as strong as standard high-carbon steel rods, providing exceptional resistance to rock chip damage and bending
  • Viton seals standard — premium sealing material with low friction, low wear, and high-temperature properties for extended service life in racing conditions
  • Gen 3 clicker adjuster with black anodized adjuster housings and color-coded seals for compression, rebound, and gold valves
  • Rotating body cap design allows the bypass tubes and piggyback reservoir to be repositioned for optimized clearance during installation
  • Short course spec tuning — valved and configured specifically for short course racing applications
  • Sold as a single left-side shock (mirrored from right-side unit)

Built on decades of race development, the Fox Factory Race 3.0 External Bypass platform has proven itself across desert racing, short course, and ultra-4 competition worldwide. The 981-30-423-L is an application-specific component intended for racers who demand consistent, repeatable damping performance under the most demanding race conditions.

Products specifications

Mounting

5/8 x 1-1/2

Series

Factory Race

Title

FACTORY RACE 3.0 X 16 EXTERNAL BYPASS (4 TUBE) PIGGYBACK SHOCK - SHORT COURSE (LEFT)

Bypass Tubes

4

Fox Catalog

OFFROAD

Reservoir Dimensions

2.55 x 16.00
