ICON Vehicle Dynamics K93131T Stage Suspension System Lift Ford - 1 2.75-3.5 Kit for 2021-2023 F-150 4WD

The ICON Vehicle Dynamics Stage 1 Suspension System is engineered for 2021-2023 Ford F-150 4WD trucks, delivering enhanced performance both on-road and off-road. This comprehensive system provides 2.75-3.5 inches of adjustable front lift height, allowing for larger wheel and tire combinations while maintaining factory towing capacity.

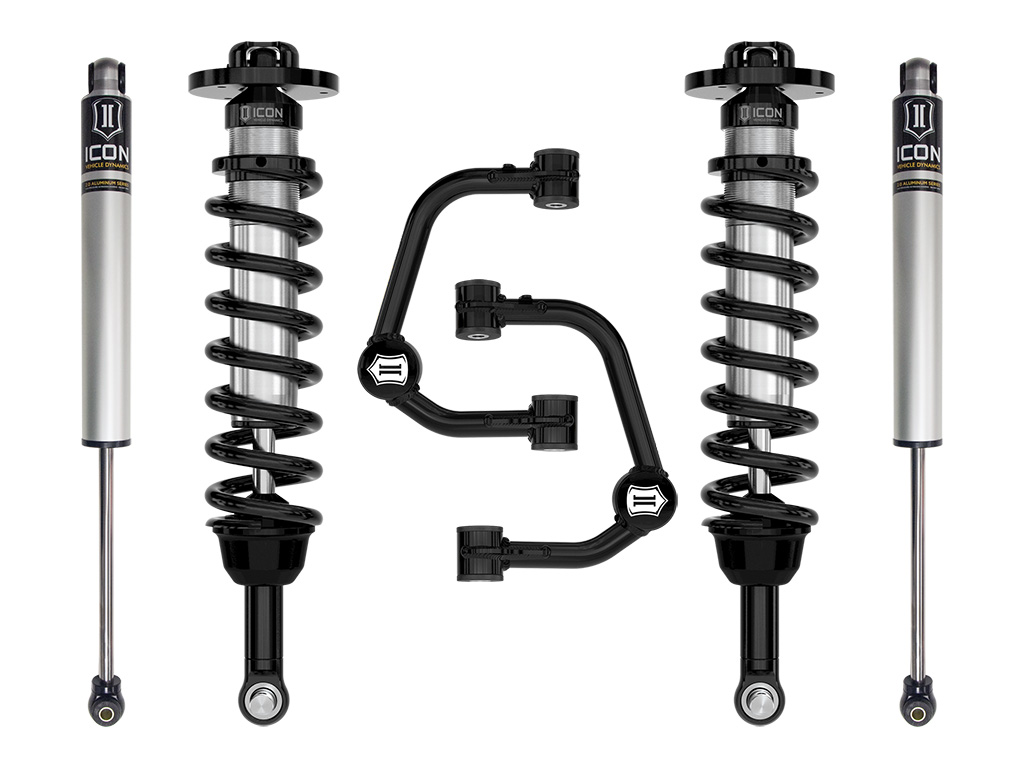

Key Components:

• 2.5" Coilover Shocks: Vehicle-specific tuned coilovers with internal reservoir for superior cooling properties and height adjustability
• Tubular Upper Control Arms: Feature ICON's patented Delta Joint PRO ball joints with 90 degrees of articulation for maximum bind-free suspension movement
• 2.0 Aluminum Series Rear Shocks: Monotube design with vehicle-specific valving to balance front-to-rear performance
• ICON-Engineered Coil Springs: Provide superior vehicle feel throughout the entire range of travel

Performance Features:

• Corrosion-resistant CAD plated coilover bodies with heavy-duty 7/8" shafts
• FK rod end bearings for extended longevity and minimal deflection
• Increased wheel travel and ride quality over stock suspension
• Improved caster angle and retention of factory alignment specifications

Delta Joint PRO Technology:

The tubular upper control arms feature ICON's innovative Delta Joint PRO, combining the durability of factory ball joints with motorsports-level performance. This rebuildable design uses a larger ball with 56% more bearing surface than standard Delta Joints, along with a chromoly ball and shaft hardened to Rockwell C 55. The graphite-impregnated sintered metal races and improved lubrication system ensure maximum strength, durability, and longevity.

This Stage 1 system is ideal for drivers seeking to maximize their F-150's capabilities on pavement and trails alike, with increased ground clearance, improved suspension articulation, and enhanced vehicle control.
