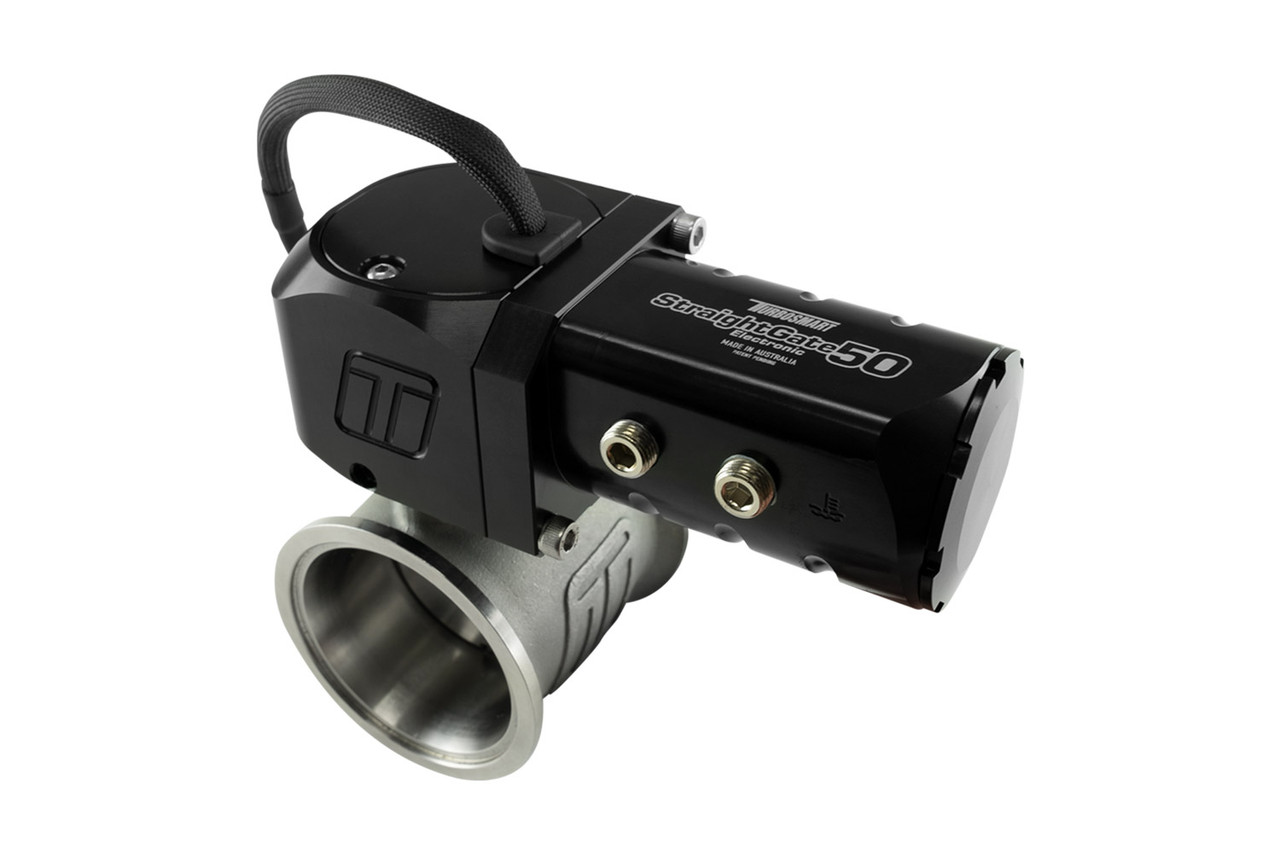

The Turbosmart TS-0565-3002 is a genuine Turbosmart spare or accessory component designed for use with the award-winning eSG50 StraightGate50 Electronic External Wastegate system. Turbosmart's StraightGate50 platform is the world's first electronically actuated butterfly-style external wastegate, engineered to deliver a new standard of boost control for turbocharged performance applications.
The eSG50 StraightGate50 family features a 50mm zero-offset butterfly valve design that flows more than any conventional 60mm poppet-style valve, while delivering almost linear boost control response across the entire operating range. The fully electronic actuation system eliminates boost reference hoses, springs, and diaphragms in favor of a precision servo motor paired with Turbosmart's patented zero-backdrive gearbox — resulting in lower current demands and exceptional stability even under extreme exhaust drive pressures.
eSG50 StraightGate50 System Features:
- 50mm (1.97 in) butterfly valve — outflows conventional 60mm poppet-style valves
- Full electronic control via servo motor and zero-backdrive gearbox
- Liquid actuator cooling provision for thermal management
- Strap-type V-band clamps for secure, leak-free sealing
- User-adjustable actuator position with three clocking options
- Onboard (0–5V) actuator temperature sensor
- Onboard (0–5V) valve position sensor (analog and digital output)
- 7-wire unterminated flying lead loom
- 1/8 NPT port
- Self-balancing butterfly valve — equal exhaust drive pressure on both sides for reduced actuation effort
- Compatible with programmable ECUs via PWM, 0–5V analog, or CAN-based control
Turbosmart's zero-backdrive gearbox technology ensures the valve holds its commanded position without power applied, providing stability and control independent of boost reference signals or mechanical springs. This enables a tuning window spanning from zero boost (where manifold priority allows) to maximum available boost.
Note: TS-0565-3002 is a component within the Turbosmart eSG50 StraightGate50 product family. Please verify fitment with the complete wastegate assembly prior to ordering. Compatible spare and accessory part numbers include the TS-0503-3002 stainless inlet/outlet weld flange, TS-0555-3004 V-band clamp, TS-0550-3124 replacement motor, and TS-0550-3123 replacement onboard sensor. The optional TS-0305-1001 BlackBox Electronic Controller is available separately.
Not CARB legal — not for sale in California.
