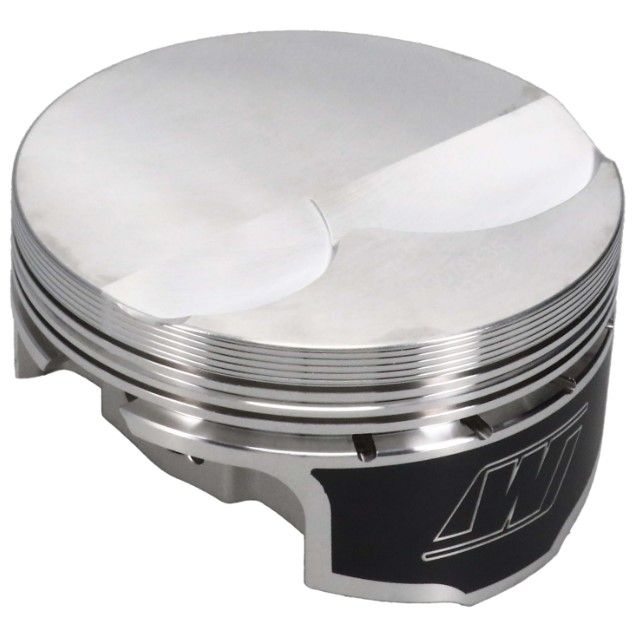

Wiseco RED0078X65 RED Series Forged Piston Set Chevy LS Flat Top 2618 Aluminum

Manufacturer

Part Number

RED0078X65
Black Friday Price

$899.99

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco RED0078X65 is a RED Series forged piston set engineered for Chevrolet LS V8 applications. Built using Wiseco's Race Engineered Design™ (RED) philosophy, these pistons are forged and CNC-machined in the USA from 2618 aluminum alloy, delivering the tensile strength required for performance racing and power-adder applications. This set includes 8 pistons with rings.

Key Features:

  • 2618 Forged Aluminum Construction – High-strength alloy provides superior durability under the extreme heat and cylinder pressure of performance and forced-induction LS engines
  • Race Engineered Design™ (RED) – Dedicated, engine-specific forgings with an optimized strutted design maximize strength-to-weight characteristics
  • ArmorGlide® Skirt Coating – Reduces operating friction and noise while minimizing skirt and cylinder wall wear for extended service life
  • Horizontal Slot Pin Bore Oiling – Maintains optimal wrist pin and small-end rod lubrication, critical for longevity under high-RPM conditions
  • Accumulator Groove – Helps maintain consistent ring seal and power output across the full RPM range
  • Premium Rings Included – Each set ships complete with rings; no need for separate ring sourcing
  • Flat Top / Low-CC Dome Design – Optimized for popular LS compression ratio targets in naturally aspirated and boosted builds

Wiseco RED Series piston sets are a trusted choice for domestic V8 performance builds ranging from drag racing to circle track competition. The RED0078X65 delivers the ultimate balance of performance and value for serious LS engine builders.

Products specifications

Piston Quantity

8

Rod Length

6.125

Stroke

4.000

Wrist Pin Retainer Material

Chrome silicon

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Engine

LS

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.065

Oil Ring Thickness

3.00

Compression Height

1.105

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Engine - Web

LS

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Piston Volume

-4.00

Product Series

RED Series

Wrist Pin Quantity

8

Wrist Pin Retainer Quantity

16

Title

RED Series - Chevrolet, LS, 4.065 in. Bore, Piston Set of 8

Ring Quantity

8

Make - Web

Chevy

Ring Set Part Number

4067GFX

Wrist Pin Part Number

S736

Wrist Pin Retainer Part Number

W5595

Title - Web

RED Series Chevy LS Piston Set of 8 - 4.065 in. Bore - 1.105 in. CH, -4.00 CC
