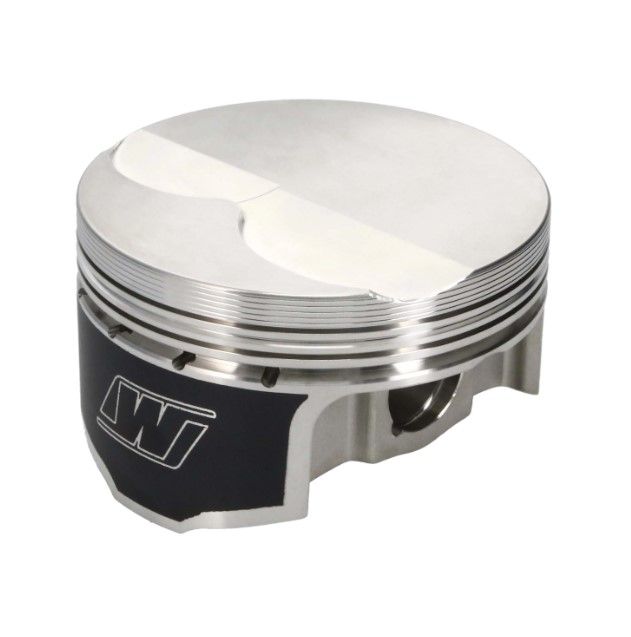

Wiseco RED0076X45 RED Series Chevy LS Forged Piston Set 4.045 in. Bore

Manufacturer

Part Number

RED0076X45
Black Friday Price

$899.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco RED0076X45 is a RED Series forged piston set engineered for the Chevrolet LS platform, featuring a 4.045-inch bore. RED™ stands for Race Engineered Design™ — a program built to deliver the strength, durability, and precision that domestic V8 performance engines demand, from drag racing to circle track competition.

Key Features:

  • 4.045 in. Bore | 3.622 in. Stroke | 6.125 in. Rod Length
  • Flat Top crown, -4.0cc for optimized compression ratio tuning
  • 1.294 in. Compression Height | 0.927 in. Wrist Pin Diameter
  • 2618 aluminum alloy — forged, engineered, and machined in the USA for the tensile strength required in performance racing and power-adder applications
  • Dedicated engine-specific forgings with optimized strutted design to maximize strength-to-weight characteristics
  • ArmorGlide® skirt coating reduces operating friction and noise while minimizing skirt and cylinder wear
  • Horizontal slot oiling in pin bores maintains optimal wrist pin and small-end lubrication for long service life
  • Accumulator groove helps maintain consistent ring seal and power output

The Wiseco RED Series piston kit is the ideal choice for builders seeking a precision, USA-made forged piston solution for high-performance Chevy LS engine builds, including naturally aspirated, nitrous, turbocharged, and supercharged applications.

Products specifications

Piston Quantity

8

Rod Length

6.125

Stroke

3.622

Wrist Pin Retainer Material

Chrome silicon

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Engine

LS

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.045

Oil Ring Thickness

3.00

Compression Height

1.294

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Engine - Web

LS

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Piston Volume

-4.00

Product Series

RED Series

Wrist Pin Quantity

8

Wrist Pin Retainer Quantity

16

Title

RED Series - Chevrolet, LS, 4.045 in. Bore, Piston Set of 8

Ring Quantity

8

Make - Web

Chevy

Title - Web

RED Series Chevy LS Piston Set of 8 - 4.045 in. Bore - 1.294 in. CH, -4.00 CC

Ring Set Part Number

4047GFX

Wrist Pin Part Number

S736

Wrist Pin Retainer Part Number

W5595
