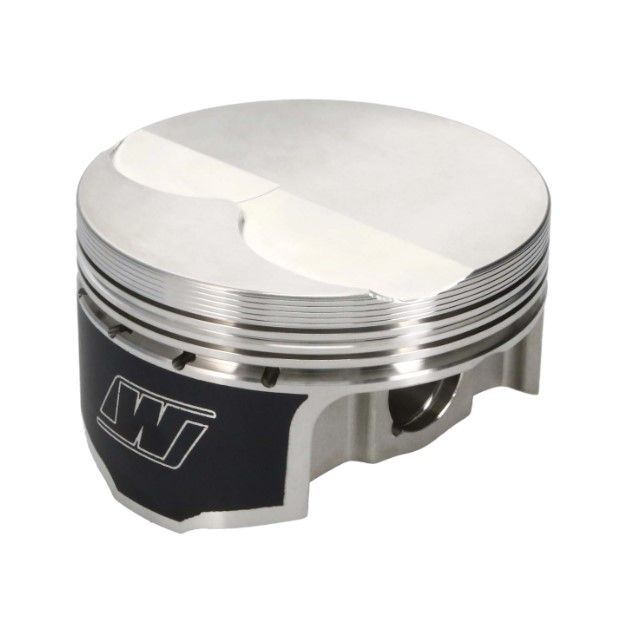

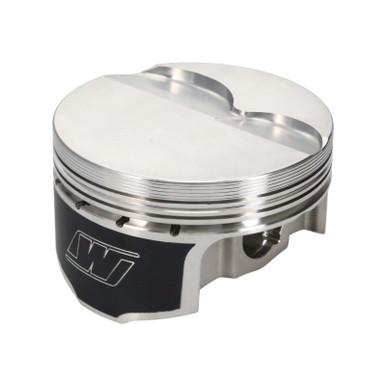

Wiseco RED0076X4 RED Series Chevy LS Flat Top Forged Piston Set 4.040 in. Bore

Manufacturer

Part Number

RED0076X4
Black Friday Price

$899.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco RED0076X4 is a complete 8-piece RED Series forged piston kit for the Chevrolet LS engine platform. Featuring a 4.040-inch bore, -4.0cc flat top design, and a 1.294-inch compression height, this kit is engineered for performance racing and power-adder applications including forced induction and nitrous.

Key Specifications:

  • Bore: 4.040 in.
  • Stroke: 3.622 in.
  • Rod Length: 6.125 in.
  • Compression Height: 1.294 in.
  • Head Volume: -4.0cc (Flat Top)
  • Wrist Pin Diameter: 0.927 in.
  • Material: 2618 forged aluminum alloy

RED Series Features:

  • Engineered, forged, and machined in the USA from 2618 aluminum for the tensile strength required in performance racing and power-adder applications
  • Dedicated forgings allow for an optimized, engine-specific strutted design to maximize strength-to-weight characteristics
  • ArmorGlide® skirt coating reduces operating friction and noise while minimizing skirt and cylinder wear
  • Horizontal slot oiling in pin bores maintains optimal wrist pin and small-end lubrication for long service life
  • Accumulator groove helps maintain consistent ring seal and power output
  • Premium ring pack included — no additional sourcing required

The Wiseco RED Series — short for Race Engineered Design — is purpose-built for domestic V8 platforms and delivers the ideal balance of performance and value for applications ranging from drag racing to circle track competition.

Note: This product is not CARB compliant and is not for sale in California (Proposition 65).

Products specifications

Piston Quantity

8

Rod Length

6.125

Stroke

3.622

Wrist Pin Retainer Material

Chrome silicon

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Engine

LS

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.040

Oil Ring Thickness

3.00

Compression Height

1.294

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Engine - Web

LS

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Piston Volume

-4.00

Product Series

RED Series

Wrist Pin Quantity

8

Wrist Pin Retainer Quantity

16

Title

RED Series - Chevrolet, LS, 4.040 in. Bore, Piston Set of 8

Ring Quantity

8

Make - Web

Chevy

Title - Web

RED Series Chevy LS Piston Set of 8 - 4.040 in. Bore - 1.294 in. CH, -4.00 CC

Ring Set Part Number

4042GFX

Wrist Pin Part Number

S736

Wrist Pin Retainer Part Number

W5595
