Wiseco Pistons RED0076X2 RED Series Forged Flat Top Piston Set Bore Chevy LS - 4.020

Manufacturer

Part Number

RED0076X2
Black Friday Price

$899.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

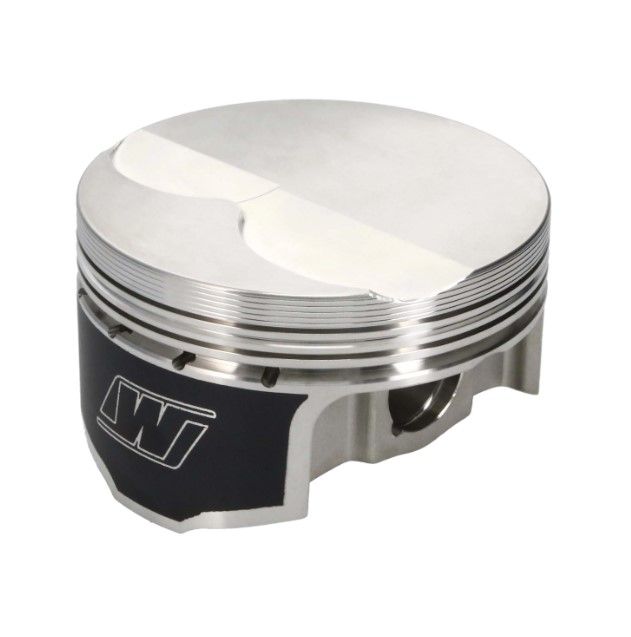

The Wiseco RED0076X2 is a complete forged piston and ring set engineered specifically for Chevrolet LS engine builds. This 8-piston kit features Wiseco's RED Series design, which utilizes Race Engineered Design technology to deliver the strength and durability that high-performance domestic V8 engines demand.

Specifications:

  • Bore: 4.020 inches
  • Stroke: 3.622 inches
  • Rod Length: 6.125 inches
  • Compression Height: Flat top with -4.0cc dish
  • Wrist Pin Diameter: 0.927 inches

Key Features:

  • Forged from 2618 aluminum alloy for maximum tensile strength in racing and power adder applications
  • ArmorGlide skirt coating reduces friction, noise, and wear on both piston skirts and cylinder walls
  • Horizontal slot oiling in pin bores ensures optimal wrist pin and small-end lubrication for extended service life
  • 0.150-inch wall pins with wire locks included
  • Dedicated forgings with engine-specific strutted design maximize strength-to-weight characteristics
  • Engineered, forged, and machined in the USA

Wiseco's RED Series piston kits offer the ultimate balance of performance and value, making them ideal for racing applications from drag racing to circle track. Each piston is precision-machined using advanced 3D design and finite element modeling to ensure optimal strength and minimal weight.

Products specifications

Piston Quantity

8

Rod Length

6.125

Stroke

3.622

Wrist Pin Retainer Material

Chrome silicon

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Engine

LS

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.020

Oil Ring Thickness

3.00

Compression Height

1.294

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Engine - Web

LS

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Wrist Pin Retainer Included

Yes

Wrist Pin Retainer Style

Wire Lock

Piston Volume

-4.00

Product Series

RED Series

Wrist Pin Quantity

8

Wrist Pin Retainer Quantity

16

Title

RED Series - Chevrolet, LS, 4.020 in. Bore, Piston Set of 8

Ring Quantity

8

Make - Web

Chevy

Title - Web

RED Series Chevy LS Piston Set of 8 - 4.020 in. Bore - 1.294 in. CH, -4.00 CC

Ring Set Part Number

4022GFX

Wrist Pin Part Number

S736

Wrist Pin Retainer Part Number

W5595
