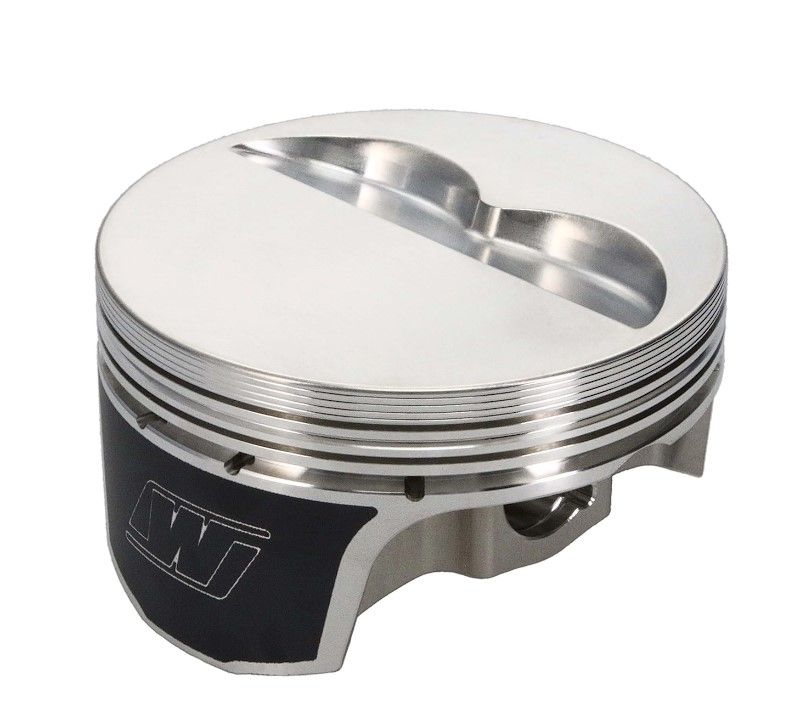

Wiseco RED0018X4 RED Series Forged Piston Set 4.040 in. Bore SB Chevy

Manufacturer

Part Number

RED0018X4
Black Friday Price

$899.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco RED0018X4 is part of the RED™ Series (Race Engineered Design™) forged piston kit lineup, purpose-built for Chevrolet Small Block 23-degree V8 engines competing in demanding performance and racing applications. This set delivers a flat-top design with a 4.040-inch bore, -5.7cc dish volume, a 9.5:1 compression ratio, and a 0.927-inch wrist pin diameter—engineered to complement a 3.480-inch stroke with a 6.125-inch rod length. Each kit includes 8 pistons and a full premium ring set, eliminating the need for additional ring sourcing.

Key Features:

  • 2618 Aluminum Construction: Engineered, forged, and machined in the USA for the tensile strength required in high-performance racing and power-adder applications
  • Dedicated Forgings: Engine-specific strutted design optimizes strength-to-weight characteristics for the SBC platform
  • ArmorGlide® Skirt Coating: Reduces operating friction and noise while minimizing skirt and cylinder wall wear for extended engine life
  • Horizontal Slot Pin Bore Oiling: Maintains optimal wrist pin and small-end lubrication, critical for long service life under high-load conditions
  • Accumulator Groove: Helps maintain consistent ring seal and power output throughout the power cycle
  • Complete Kit: Each part number includes a premium ring set — no additional sourcing required

Specifications:

  • Bore: 4.040 in.
  • Compression Ratio: 9.5:1
  • Top Shape: Flat Top (-5.7cc)
  • Wrist Pin Diameter: 0.927 in.
  • Stroke: 3.480 in.
  • Rod Length: 6.125 in.
  • Head Chamber Angle: 23 Degrees
  • Material: 2618 Forged Aluminum
  • Manufactured: USA

The Wiseco RED Series piston kit is an ideal choice for Small Block Chevy builders targeting circle track, drag racing, or street/strip performance builds requiring proven forged durability with race-ready precision at a competitive value.

Products specifications

Piston Quantity

8

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.040

Oil Ring Thickness

3.00

Compression Height

1.125

Industry

Automotive

Product Market

Domestic

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.20

Engine

Small Block

Engine Type

ICE

Wrist Pin Material

5115

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Engine - Web

Small Block Gen I

Make - Web

Chevrolet

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Piston Volume

-5.70

Title

RED Series - Chevrolet, Small Block, 4.040 in. Bore, Piston Set of 8

Product Series

RED Series

Title - Web

RED Series Chevy Small Block Piston Set of 8 - 4.040 in. Bore - 1.125 .in CH, -5.70 CC

Ring Set Part Number

4042GFX
