ICON Vehicle Dynamics K53216TS Stage 6 Suspension System 2-3.25" Lift Kit for 2022-2023 Toyota Tundra TRD

Manufacturer

Part Number

K53216TS
Black Friday Price

$8,985.74

$10,571.46 Save 15%

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

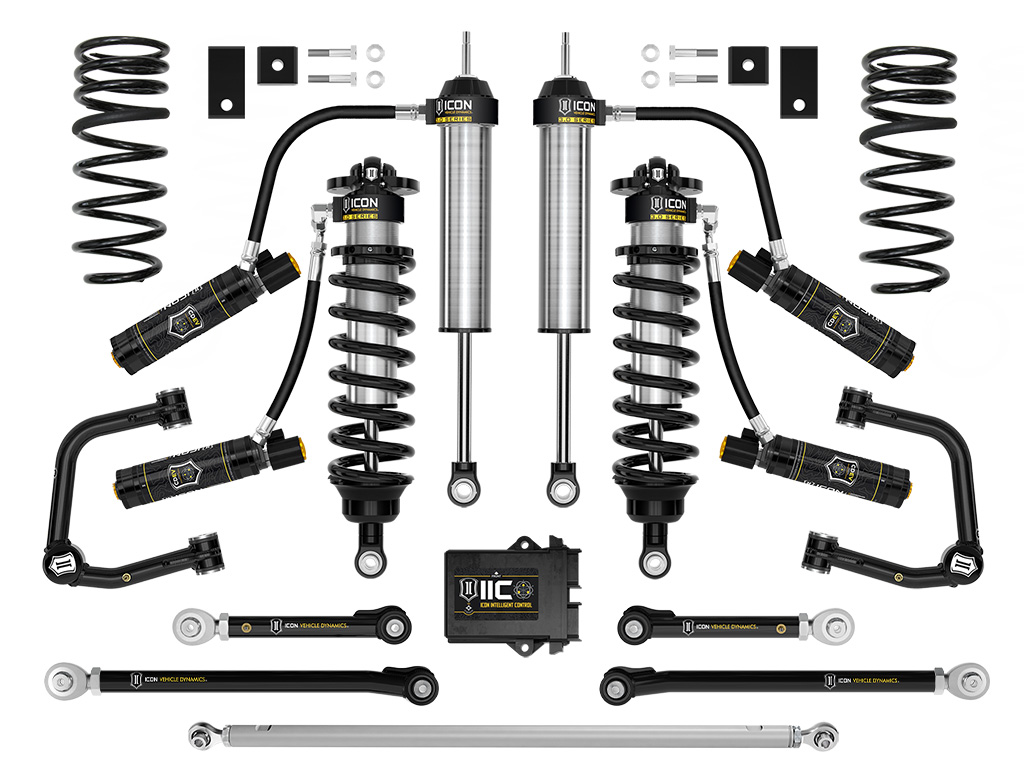

The ICON Vehicle Dynamics Stage 6 suspension system delivers complete front and rear suspension transformation for 2022-2023 Toyota Tundra vehicles equipped with TRD suspension packages. This comprehensive kit combines advanced damping technology with precision-engineered geometry correction components to provide 2-3.25 inches of adjustable front lift and improved performance both on and off-road.

3.0 Series Front Coilovers with ICON Intelligent Control (IIC):

The system features vehicle-specific 3.0 Series remote reservoir front coilovers with Compression Damping Electronic Valves (CDEV). These coilovers offer 50% more piston surface area in the ride zone and 100% more in the "Bump Zone" compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance through the last 40% of travel, providing exceptional control during hard impacts. ICON Intelligent Control uses onboard sensors to monitor G-forces and chassis movement, making near-instantaneous compression damping adjustments automatically. Control the system wirelessly through the IIC smartphone app with user-defined settings. Vehicle-specific shock lengths provide up to 40% more travel than stock components.

Tubular Upper Control Arms with Delta Joint PRO:

Included tubular steel upper control arms correct front-end geometry while adding built-in caster for improved handling. The serviceable and rebuildable ICON Delta Joint PRO replaces the OE ball joint, eliminating bind and allowing full bump and droop travel of the front suspension. These arms also improve component clearance for larger tire fitment.

Rear Suspension Components:

  • Triple-rate rear coil springs engineered to provide 0.75 inches of rear lift on TRD-equipped Tundras (1.25 inches on non-TRD models)
  • Softer droop and ride rates with firmer overload rates for on-road comfort and excellent bottoming resistance
  • 3.0 Series remote reservoir rear shocks with CDEV valves for active compression damping adjustment
  • Tubular steel adjustable upper and lower links made from 1-3/4 inch x 0.313-inch wall DOM tubing with multi-stage black powder coat finish
  • PTFE-lined FK rod ends for increased articulation and reduced deflection
  • Multi-durometer bushings for noise-free operation without periodic greasing
  • CNC-machined billet aluminum adjustable track bar for axle centering with easy on-vehicle length adjustment

Additional Components:

  • Front sway bar drop kit to minimize link bind and allow full suspension travel
  • All necessary hardware and brackets for complete installation

This Stage 6 system enables fitment of up to 35-inch tires while maintaining proper alignment specifications and delivering balanced performance from front to rear. The combination of adjustable ride height, active damping control, and geometry correction creates an exceptional driving experience for both daily driving and aggressive off-road use.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2022-2023 Toyota Tundra
