ICON Vehicle Dynamics K53216S Stage 6 Suspension System 2022-2023 Toyota Tundra 3.0 IIC Billet

Manufacturer

Part Number

K53216S
Black Friday Price

$10,508.69

$12,363.16 Save 15%

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 6 3.0 complete suspension system transforms the 2022-2023 Toyota Tundra with a comprehensive performance upgrade featuring ICON Intelligent Control (IIC) technology. This premium system delivers adjustable lift heights from 1.25-3.25 inches in the front and includes billet aluminum upper control arms, triple-rate rear coil springs, adjustable links, and 3.0 Series CDEV coilovers and shocks with remote reservoirs.

Key Features:

  • 3.0 Series front coilovers with multi-stage tunable hydraulic Bump Zone and 50% more piston surface area than 2.5 Series
  • ICON Intelligent Control (IIC) uses onboard sensors and app control to actively adjust compression damping in real-time based on terrain
  • Adjustable front lift from 1.25-3.25 inches over stock accommodates up to 35-inch tires
  • Billet aluminum front upper control arms with ICON Delta Joint PRO for improved geometry, caster/camber adjustment, and full articulation
  • Triple-rate rear coil springs provide 0.75 inch lift on TRD models or 1.25 inches on non-TRD models with progressive spring rates
  • CNC machined 6061 aluminum adjustable rear upper and lower links with PTFE-lined FK rod ends and double adjuster system
  • Billet aluminum adjustable rear track bar to center axle after lift installation
  • 3.0 Series CDEV rear remote reservoir shocks with active compression damping adjustment
  • Front sway bar drop brackets minimize link bind and maximize wheel travel
  • Up to 40% increase in suspension travel over stock for enhanced off-road capability

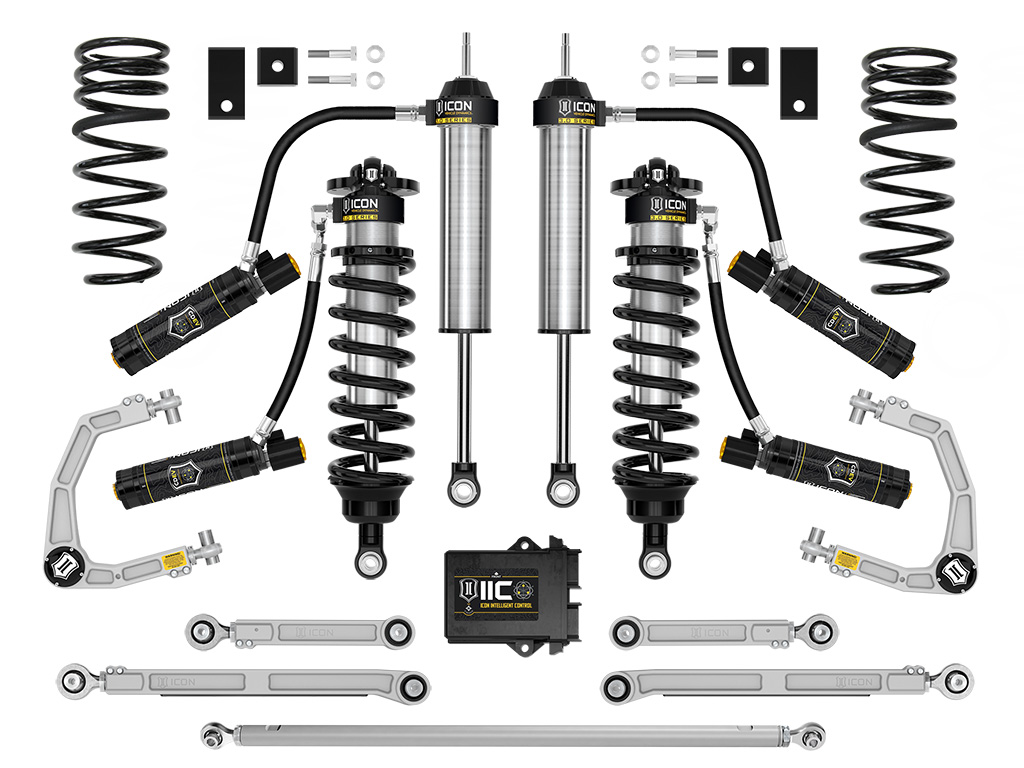

System Components:

  • Front: 3.0 Series CDEV remote reservoir coilovers with IIC technology
  • Rear: 3.0 Series CDEV remote reservoir shocks with IIC technology
  • Billet aluminum front upper control arms with Delta Joint PRO
  • Billet aluminum adjustable rear upper and lower links
  • Adjustable billet aluminum rear track bar
  • Triple-rate rear coil springs (TRD-specific)
  • Front sway bar drop bracket kit

The hydraulic Bump Zone progressively increases bottom-out resistance through the last 40% of shock travel, protecting against hard impacts and unexpected obstacles. The larger 3.0 Series shocks provide superior heat dissipation and fade resistance compared to smaller diameter shocks, maintaining consistent performance during demanding use. Control the entire system wirelessly through the IIC smartphone app with user-defined settings that allow the system to function autonomously once configured.

This complete Stage 6 system is specifically engineered for 2022-2023 Toyota Tundra models equipped with TRD suspension packages, delivering exceptional on-road comfort and aggressive off-road capability with balanced front-to-rear vehicle control.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2022-2023 Toyota Tundra
