ICON Vehicle Dynamics K53216 Stage 6 Suspension System 2022-2023 Toyota Tundra 1.25-3.25" Lift

Manufacturer

Part Number

K53216
Black Friday Price

$10,489.23

$12,340.27 Save 15%

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

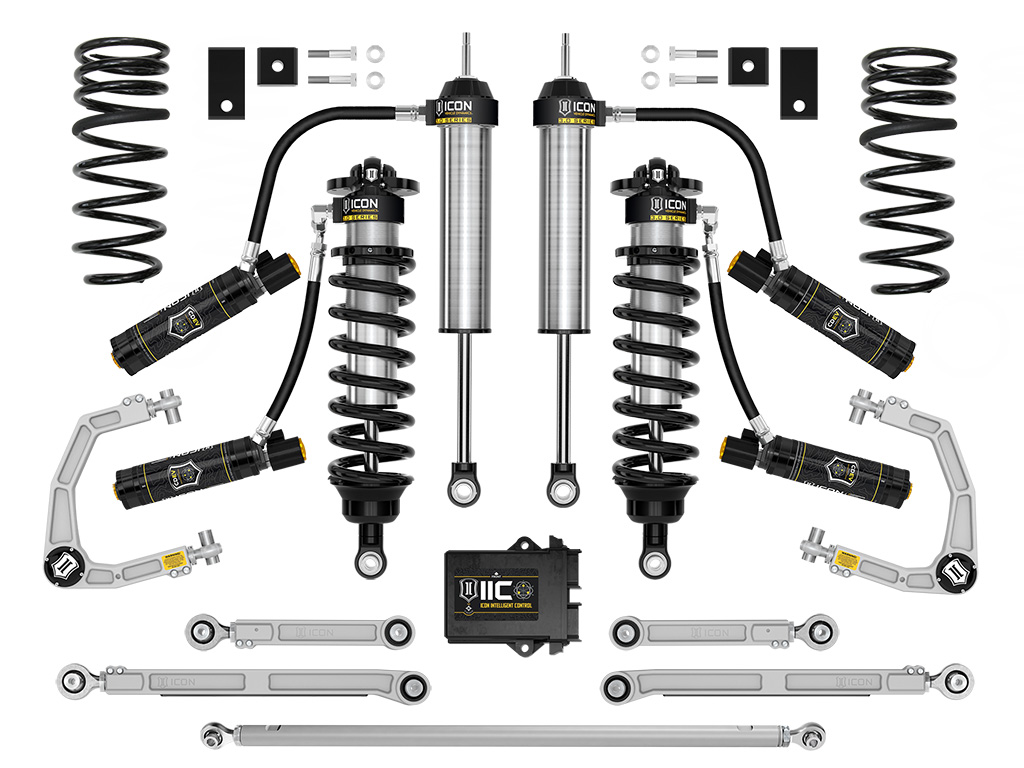

The ICON Vehicle Dynamics Stage 6 3.0 complete suspension system transforms your 2022-2023 Toyota Tundra with advanced performance technology and comprehensive componentry. This vehicle-specific system delivers adjustable lift heights from 1.25-3.25" with the capability to fit up to 35" tires, combining cutting-edge electronic damping control with race-proven mechanical design.

ICON Intelligent Control (IIC) System:

The standout feature of this Stage 6 system is ICON's Intelligent Control technology, which uses onboard sensors to monitor G-forces and chassis movement. The system makes near-instantaneous compression damping adjustments through Compression Damping Electronic Valves (CDEV) at each shock, responding to terrain conditions without driver input. Control everything wirelessly through the IIC smartphone app with user-defined settings that optimize performance for your driving style.

3.0 Series Front Coilovers:

  • Remote reservoir design with CDEV valves for active damping adjustment
  • 50% more piston surface area in ride zone compared to 2.5 Series shocks
  • 100% more piston area in the Bump Zone for superior bottom-out resistance
  • Multi-stage hydraulic Bump Zone engages in final 40% of travel
  • Vehicle-specific shock length provides up to 40% increase in travel over stock
  • Adjustable lift range of 1.25-3.25" when paired with included billet UCAs

Billet Aluminum Upper Control Arms:

  • CNC machined from high-strength billet aluminum for maximum durability
  • On-vehicle caster and camber adjustment for optimized alignment
  • Corrected front-end geometry for lifted applications
  • ICON Delta Joint PRO - serviceable and rebuildable ball joint replacement
  • Eliminates suspension bind through full range of motion
  • Improved clearance for suspension components

Rear Suspension Components:

  • Triple-rate rear coil springs with progressive spring rates for comfort and control
  • Softer droop and ride rates with firm overload rate for bottoming resistance
  • Designed for 0.5" lift on non-TRD models, maintains height on TRD-equipped trucks
  • 3.0 Series remote reservoir rear shocks with CDEV valves
  • Matched damping characteristics front-to-rear for balanced vehicle dynamics

Billet Aluminum Rear Links:

  • CNC machined from 6061 aluminum with anodized finish
  • Upper and lower link kit included
  • PTFE-lined FK rod ends for increased articulation and reduced deflection
  • Double adjuster system for on-vehicle length adjustment
  • Multi-durometer bushings for quiet operation and maximum angularity
  • Maintenance-free design requires no periodic greasing

Adjustable Rear Track Bar:

  • Centers rear axle properly with lifted suspension
  • CNC machined from solid 6061 aluminum bar stock
  • Anodized finish matches billet link arms
  • On-vehicle adjustment without disassembly
  • Rod end design allows precise fine-tuning

Additional Components:

  • Front sway bar drop brackets minimize link bind through suspension travel
  • Allows full wheel travel without overstressing OE components
  • Helps suspension move more freely for improved articulation

Performance Benefits:

  • Superior on-road comfort with aggressive off-road capability
  • Active damping adjustment optimizes control for any terrain
  • Increased heat dissipation and fade resistance under hard use
  • Maintains vehicle stability during extreme compression events
  • Accommodates up to 35" tires with proper stance
  • Improved alignment specifications for better tire wear and handling

This complete Stage 6 system represents ICON's most advanced offering for the 2022-2023 Toyota Tundra, combining electronically controlled damping, maximum adjustability, and premium billet construction throughout. Every component is engineered specifically for this platform to deliver the ultimate balance of daily-driver comfort and extreme off-road performance.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2022-2023 Toyota Tundra

Very easy

Happy camper

There were quite a few spots where tge paint was chipped and also where it has came off due to the box being opened when I received it. I had to buy $25 in spray paint and primer to remedy this.

FINE

Good price
