ICON Vehicle Dynamics K53204S Stage 14 TRD 2.5 Billet Suspension System 1.25-3.5" Lift

(2022-2023 Toyota Tundra)

Manufacturer

Part Number

K53204S
Black Friday Price

$9,165.69

$10,783.16 Save 15%

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics K53204S Stage 14 (TRD) Complete Suspension System is a premium 2.5 Series lift kit delivering 1.25–3.5" of adjustable front lift and improved rear ride height. Building upon the Stage 13 platform, this system adds triple-rate rear coil springs and an adjustable rear track bar for enhanced on- and off-road capability. Designed to accommodate up to 35" tires, the Stage 14 delivers a proper lifted stance with refined alignment geometry and balanced front-to-rear damping performance.

Key Features:

  • 2.5 Series CDEV Front Coilovers with Remote Reservoirs — Vehicle-specific valving and a larger 2.5" shock body provide up to 40% more suspension travel over stock. Remote reservoirs increase oil volume and heat dissipation to prevent damper fade under hard use.
  • ICON Intelligent Control (IIC) — Onboard sensors monitor G-forces and chassis movement, making near-instantaneous compression damping adjustments via the Compression Damping Electronic Valve (CDEV). Fully configurable through the IIC smartphone app; operates autonomously once configured.
  • Billet Aluminum Front Upper Control Arms (UCAs) — CNC-machined for corrected front-end geometry with increased on-vehicle camber and caster adjustability. Includes the serviceable and rebuildable ICON Delta Joint PRO ball joint replacement for full bump and droop travel without bind.
  • Front Sway Bar Drop Brackets — Minimize sway bar link bind throughout the suspension travel range, allowing full wheel travel without overstressing OEM components.
  • Triple-Rate Rear Coil Springs — Softer droop and ride rates with a firmer overload rate for on-road comfort and excellent off-road bottoming resistance. Delivers approximately 0.75" rear lift on TRD-equipped Tundras or 1.25" rear lift on non-TRD models.
  • 2.5 Aluminum Series CDEV Rear Remote Reservoir Shocks — Larger diameter shocks with remote reservoirs for sustained damping performance and cooler operating temperatures. Feature an internal Bump Zone providing an additional 20% damping force to control hard bottom-outs. CDEV-equipped for active in-vehicle compression damping adjustment.
  • Billet Aluminum Adjustable Rear Upper & Lower Links — CNC-machined from 6061 aluminum and anodized for corrosion resistance. PTFE-lined FK rod ends provide increased articulation and reduced deflection. Double adjuster system allows on-vehicle link length adjustability. Multi-durometer bushings deliver noise-free operation with no periodic greasing required.
  • Billet Aluminum Adjustable Rear Track Bar — CNC-machined from solid 6061 aluminum and anodized to match ICON billet components. Rod end thread design allows easy on-vehicle fine adjustment without full disassembly, properly centering the rear axle after lift installation.

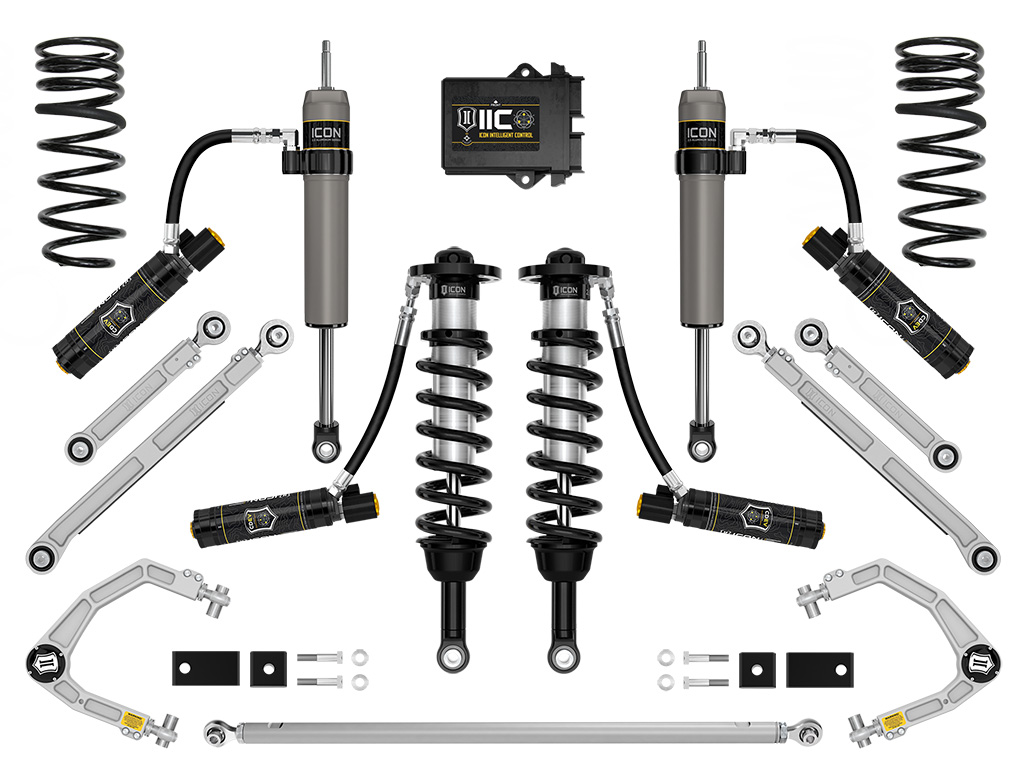

System Includes: VS 2.5 Series CDEV remote reservoir front coilovers, billet aluminum front UCAs with Delta Joint PRO, front sway bar drop brackets, triple-rate rear coil springs, 2.5 Aluminum Series CDEV rear remote reservoir shocks, billet aluminum adjustable rear upper and lower links, and a billet aluminum adjustable rear track bar.

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Products specifications

Fits

2022-2023 Toyota Tundra
