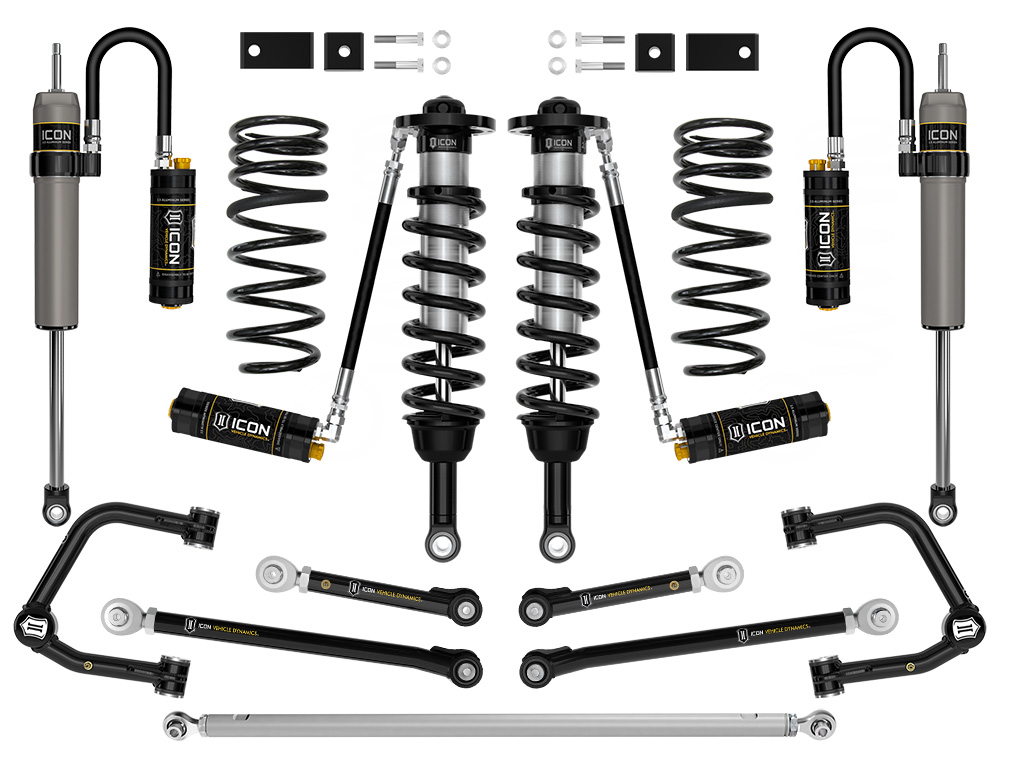

The ICON Vehicle Dynamics Stage 11 Complete Suspension System transforms your 2022-2023 Toyota Tundra with a comprehensive lift solution designed for superior on-road comfort and aggressive off-road performance. This advanced system delivers 2-3.5 inches of adjustable front lift and features premium 2.5 Series remote reservoir coilovers with CDC Valves, tubular upper control arms, billet aluminum rear links, triple-rate rear coil springs, and an adjustable rear track bar for complete suspension optimization.
Front Suspension Components:
- 2.5 Series front coilovers with remote reservoirs and CDC Valves offering 10 levels of compression damping adjustment
- Remote reservoirs increase shock oil volume and heat dissipation to prevent damper fade during hard use
- Up to 40% increase in wheel travel over stock components
- Tubular upper control arms with corrected geometry, built-in additional caster, and the patented Delta Joint Pro (U.S. Pat. 10,731,700) providing 90 degrees of total articulation
- Sway bar drop brackets to minimize link bind and allow full suspension travel
- Accommodates up to 35-inch tires with proper stance and fitment
Rear Suspension Components:
- Triple-rate coil springs providing 0.75 inches of lift on TRD-equipped models or 1.25 inches on non-TRD models
- Softer droop and ride rates combined with firmer overload rates for comfort and bottoming resistance
- 2.5 Aluminum Series remote reservoir shocks with CDC Valves and internal Bump Zone technology for 20% additional damping force
- Tubular steel adjustable upper and lower links made from 1-3/4 x .313 wall DOM tubing with multi-stage black powder coat finish
- PTFE-lined FK rod ends for increased articulation and reduced deflection
- Multi-durometer bushings for noise-free operation without periodic maintenance
- CNC-machined billet 6061 aluminum adjustable track bar with double adjuster threads for easy on-vehicle adjustment
Key Benefits:
- Vehicle-specific design engineered exclusively for 2022-2023 Toyota Tundra
- Adjustable compression damping for fine-tuned performance in any terrain
- Improved alignment specifications and corrected suspension geometry for better drivability
- Serviceable and rebuildable Delta Joint Pro eliminates bind throughout suspension travel
- Balanced front-to-rear damping for exceptional overall driving experience
- Designed specifically for TRD suspension package models
This complete Stage 11 system provides everything needed to elevate your Tundra's capability with professional-grade components engineered for durability, performance, and adjustability. The combination of advanced damping technology, improved geometry, and heavy-duty construction delivers a suspension system ready for daily driving, weekend adventures, and serious off-road use.
