ICON Vehicle Dynamics K53201 Stage Suspension System Toyota Tundra Lift - 11 2022-2023 1.25-3.5 Kit

(2022-2023 Toyota Tundra)

Manufacturer

Part Number

K53201
Black Friday Price

$7,649.12

$8,998.97 Save 15%

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

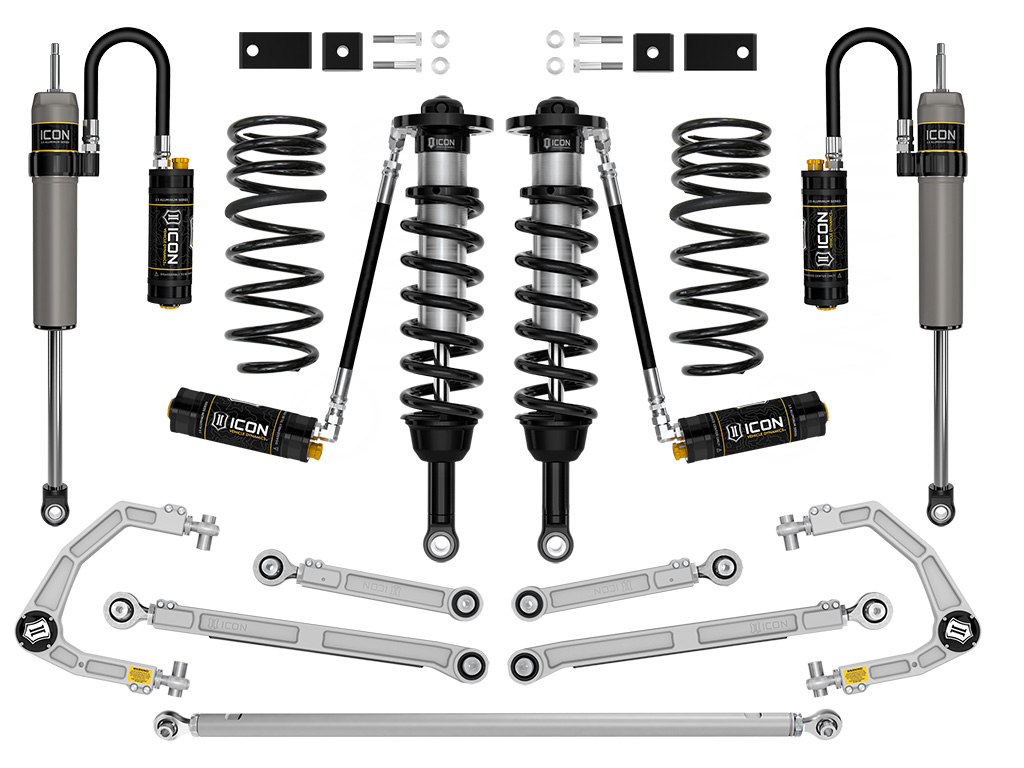

The ICON Vehicle Dynamics Stage 11 complete suspension system delivers premium off-road performance and adjustable lift capabilities for the 2022-2023 Toyota Tundra. This comprehensive kit combines advanced coilover technology, billet aluminum components, and adjustable damping to transform your truck's handling both on and off the pavement.

Front Suspension Components:

  • 2.5 Series remote reservoir front coilovers with CDC Valves offering 10 levels of compression damping adjustment
  • Adjustable front lift range from 1.25" to 3.5" over stock height
  • Billet aluminum upper control arms with patented Delta Joint PRO (U.S. Pat. 10,731,700) providing 90 degrees of total articulation
  • On-vehicle caster and camber adjustment for optimized alignment and tire wear
  • Sway bar drop brackets to minimize link bind and maximize suspension travel
  • Up to 40% increase in front suspension travel over stock components

Rear Suspension Components:

  • 2.5 Aluminum Series remote reservoir rear shocks with CDC Valves for 10-position compression damping adjustment
  • Triple-rate coil springs engineered for .5" lift on non-TRD models or stock height on TRD-equipped trucks
  • Billet aluminum adjustable upper and lower links with PTFE-lined FK rod ends for increased articulation
  • Adjustable rear track bar to center the axle after lifting
  • Internal Bump Zone technology provides 20% additional damping force to control hard bottom-outs

Performance Features:

  • Remote reservoirs on front and rear shocks increase oil volume and heat dissipation to prevent damper fade during hard use
  • Vehicle-specific valving and shock lengths optimized for the 2022-2023 Tundra platform
  • CNC machined 6061 aluminum construction with anodized finish for corrosion resistance
  • Allows fitment of up to 35" tires with proper stance
  • Multi-durometer bushings in link arms for noise-free operation without periodic maintenance
  • Double adjuster system enables on-vehicle length adjustment without component removal

This Stage 11 system builds upon the Stage 10 with the addition of triple-rate rear coil springs and an adjustable rear track bar, delivering a complete front-to-rear suspension upgrade that balances street comfort with exceptional off-road capability. The externally adjustable compression damping allows you to fine-tune the suspension for different driving conditions and load requirements.

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2022-2023 Toyota Tundra
