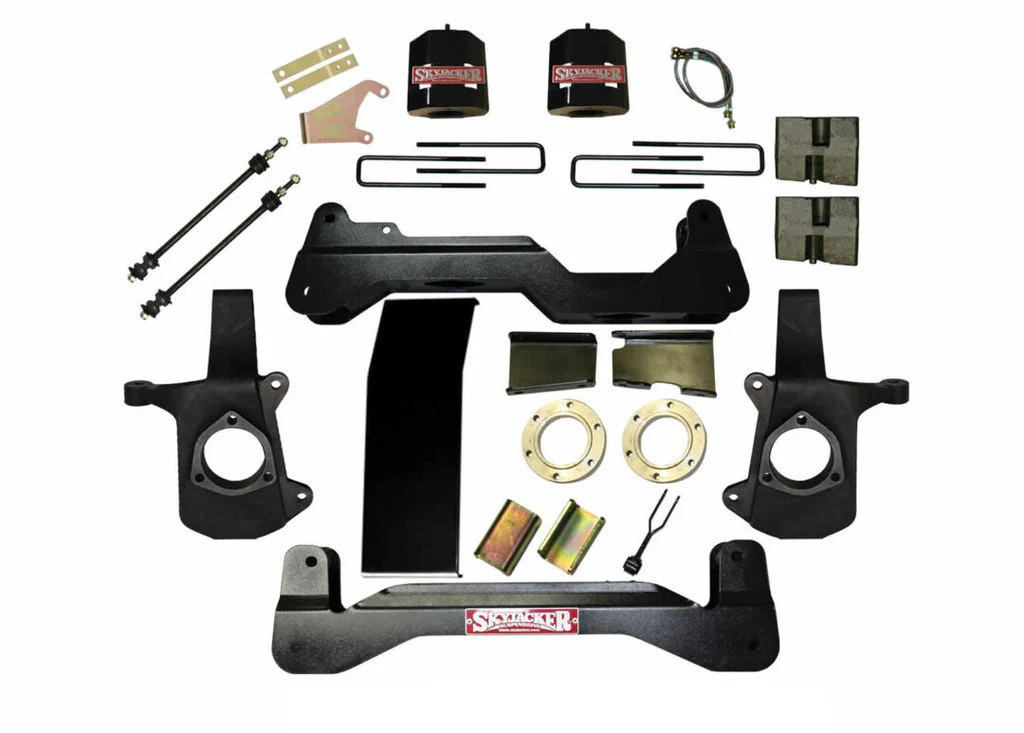

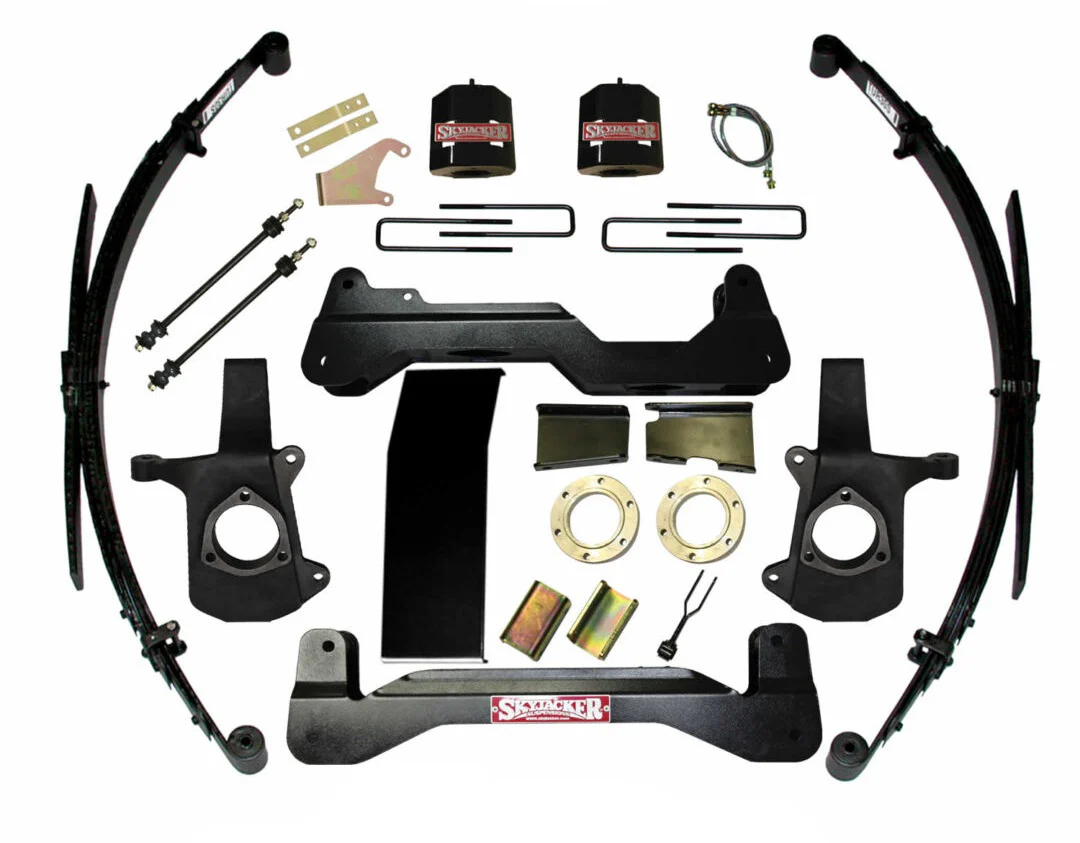

Skyjacker C7660PKS-X 6 In. Suspension Lift System with ADX 2.0 Remote Reservoir Shocks

The Skyjacker C7660PKS-X is a complete 6-inch suspension lift system designed for the K1500 platform, pairing front strut spacer technology with premium ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks for a balanced blend of aggressive lift height and refined ride quality both on and off the road.

At the heart of this kit are the ADX 2.0 Remote Reservoir Shocks, which feature a race-inspired, full-displaced valving system engineered to deliver unmatched damping performance. The external remote reservoir separates nitrogen gas from the shock oil using an Internal Floating Piston (IFP), preventing the two from mixing or foaming (cavitation). This nitrogen-charged IFP technology results in the quickest possible shock reaction time, keeping the suspension responsive whether you're crawling trails or driving at higher speeds.

Key Features:

• Full 6-inch suspension lift using front strut spacer design
• ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks
• Race-inspired full-displaced valving system for superior damping
• Internal Floating Piston (IFP) prevents oil foaming and cavitation
• CNC machined steering knuckles to maintain factory steering geometry
• Front and rear crossmembers included
• CV axle spacers and factory-style sway bar links
• Front brake lines and rear brake line relocation bracket included
• 4.5-inch rear lift blocks with U-bolts and nuts
• Compatible with factory StabiliTrak system
• No cutting or permanent frame modification required
• Complete hardware and detailed installation instructions included
• Backed by Skyjacker's limited lifetime warranty

This lift system maintains factory rack-and-pinion steering geometry and is engineered to preserve the structural integrity of the stock drivetrain. The lower control arm offset is designed for proper positive caster alignment, keeping the truck tracking straight and true after installation. All necessary hardware is included for a complete installation.
