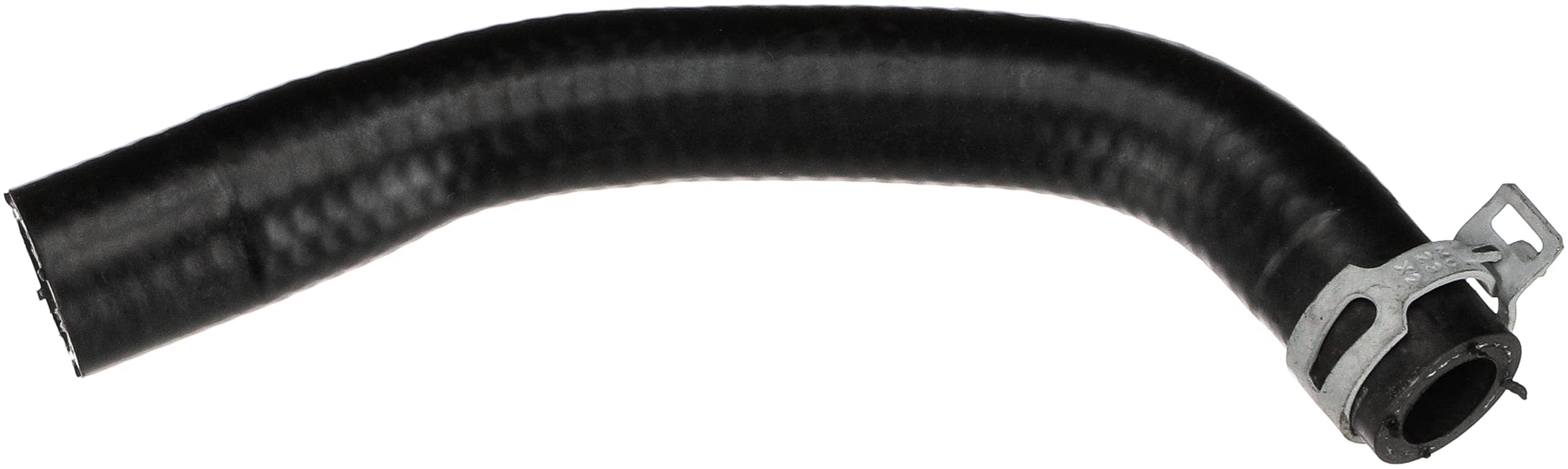

Gates 12487 Premium Molded Heater Hose 23/32" x 19/32" x 8-5/8"

The Gates 12487 Premium Molded Heater Hose is a factory-molded, pre-formed heater hose engineered to deliver OE-quality performance and a precise, reliable fit in your vehicle's cooling system. Measuring 23/32" x 19/32" x 8-5/8", this hose is purpose-built for heater hose applications where a specific molded shape is required for proper routing and sealing.

Key Features:

• EPDM Construction — Features an EPDM rubber tube, synthetic fiber reinforcement, and EPDM outer cover for exceptional durability and heat resistance
• Electrochemical Degradation Resistance — Engineered to resist ECD, the leading cause of hose failure, preventing micro-cracks and premature breakdown
• Wide Temperature Range — Rated for -40°F to +275°F (-40°C to +135°C) for reliable performance in extreme operating conditions
• SAE Compliant — Meets SAE 20R3 EC Class D1 specifications for quality and safety assurance
• OE-Grade Materials — Manufactured to OE specifications for a factory-quality fit at aftermarket value
• Coolant & Water Compatible — Unaffected by most coolants and non-oil-based coolant additives

Specifications:

• Inside Diameter (End 1): 23/32"
• Inside Diameter (End 2): 19/32"
• Length: 8-5/8"
• Material: EPDM tube, synthetic fiber reinforcement, EPDM cover
• Temperature Range: -40°F to +275°F
• Cross References: 12487, 326-12487, 42572588

Caution: Not for use in fuel or oil transfer applications. For coolant and water/air applications only.
