The ICON Vehicle Dynamics Stage 8 Suspension System transforms the 2019-2021 Ford Ranger with a comprehensive performance upgrade designed to dramatically improve both on-road comfort and off-road capability. This complete system delivers 0-3.5" of adjustable front lift height while maintaining proper suspension geometry and maximizing wheel travel for superior vehicle control in any terrain.

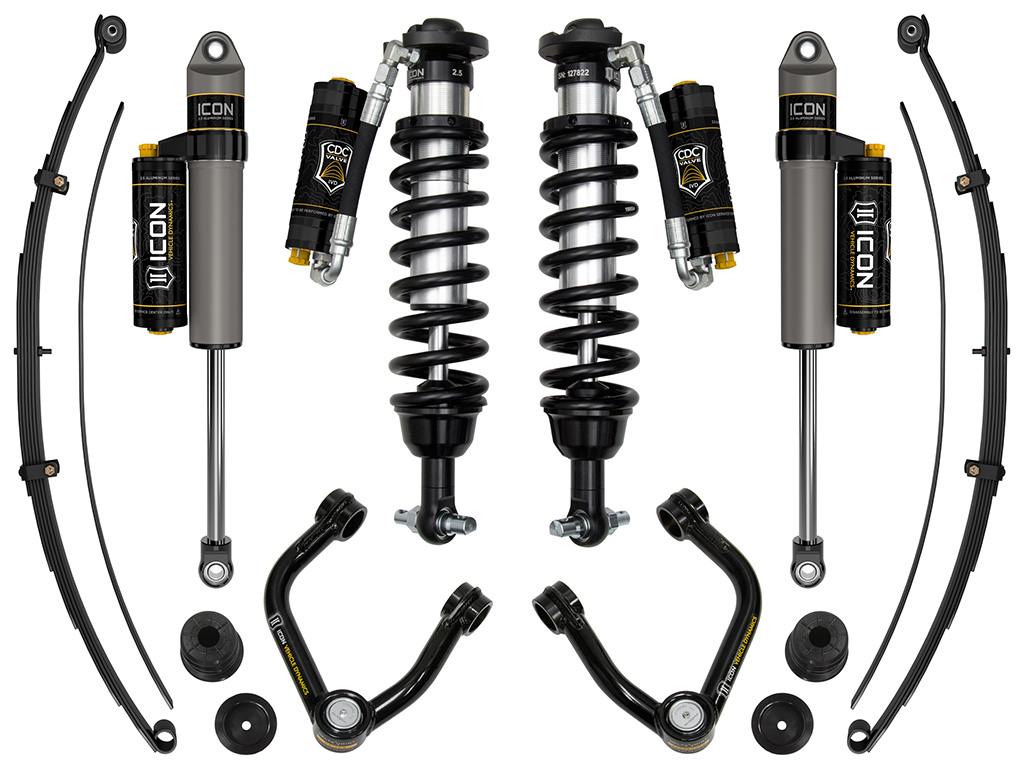

System Includes:
- Vehicle-specific tuned CDCV 2.5 Series extended travel coilover shocks with remote reservoirs
- ICON-engineered coil springs optimized for superior ride quality through full range of travel
- Tubular steel upper control arms with patented Delta Joint technology
- CDCV 2.5 Aluminum Series piggyback reservoir rear shocks with vehicle-specific valving
- Multi-rate rear leaf pack with lower spring rate and additional leaf for increased payload capacity
- Rear foam bump stop kit for enhanced compliance
Key Features:
- Height-adjustable coilovers provide 0-3.5" of front lift for larger, more aggressive tire fitment
- CDCV technology enables quick and easy compression damping adjustment without tools
- Remote reservoir design provides exceptional cooling properties for consistent performance
- Delta Joint combines ball joint durability with uniball articulation for bind-free suspension movement
- Tubular upper control arms correct front-end geometry and add caster for improved handling
- Greaseable Delta Joint features zinc-plated housing and tough grease seal for corrosion resistance
- Balanced front-to-rear valving ensures optimal performance across entire vehicle
- Fits both 2WD and 4WD applications
Delta Joint Technology:
ICON's patented Delta Joint represents a breakthrough in suspension design, addressing the limitations of traditional uniballs used in performance applications. While uniballs excel at articulation, they suffer from exposure to environmental elements in daily-driven vehicles. The Delta Joint features metal-on-metal construction with a protective zinc-plated housing and robust grease seal that keeps contaminants out while allowing noise-free operation. This design delivers greater angularity than conventional ball joints while providing superior durability and weather resistance compared to uniballs.
Performance Benefits:
ICON engineers focused on maximizing wheel travel and damping ability to extract maximum performance from the Ford Ranger platform. The extended travel shocks work in harmony with optimized spring rates to deliver outstanding vehicle control and ride quality both on pavement and off-road. The adjustable multi-rate leaf pack accommodates both lightly equipped and fully outfitted vehicles, while the foam bump stops increase rear compliance for a more controlled ride over harsh terrain.
The Stage 8 system is the ideal choice for Ranger owners seeking to enhance their truck's capabilities for daily driving, weekend adventures, and serious off-road use. This complete suspension solution provides the perfect balance of comfort, control, and capability.
