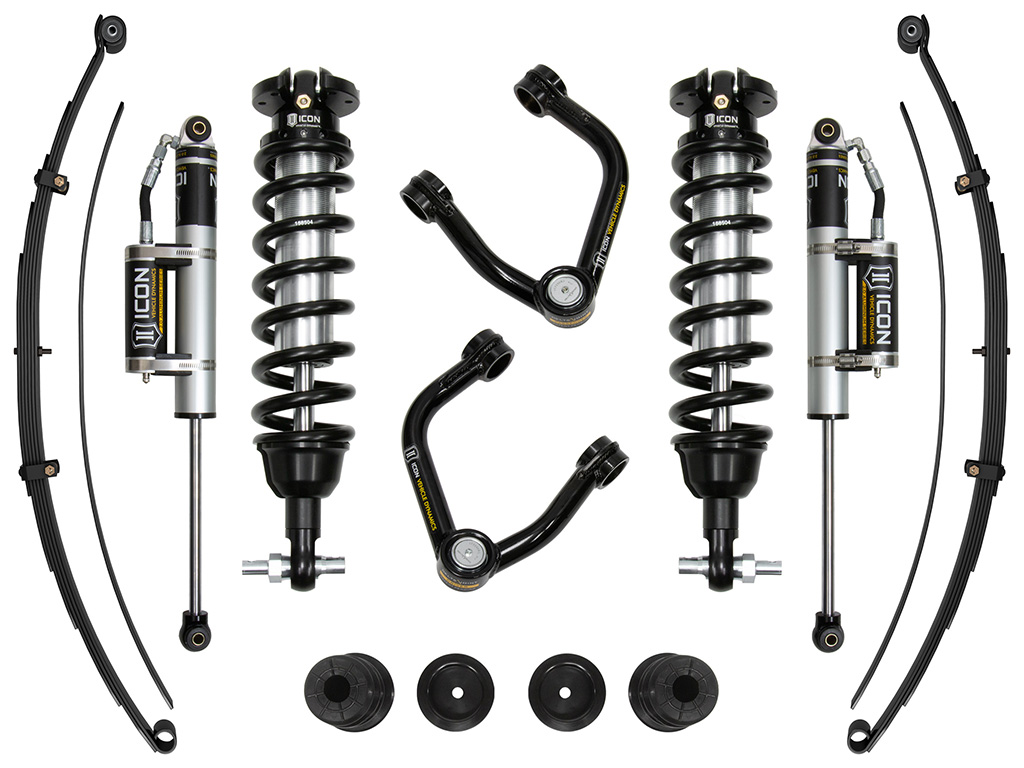

The ICON Vehicle Dynamics K93206TS Stage 6 Suspension System is a comprehensive front and rear suspension upgrade engineered for the 2020–2023 Ford Ranger. Designed for both 2WD and 4WD applications, this system delivers a height-adjustable lift range of 0–3.5 inches, dramatically improving on-road comfort and off-road capability while accommodating larger, more aggressive wheel and tire combinations.
Key Features:
- 2.5 Series Extended Travel Coilover Shocks — Vehicle-specific tuned with an internal reservoir for exceptional heat dissipation and consistent damping performance
- Height-Adjustable Design — Coilovers provide 0–3.5" of front lift height adjustment to suit your build and tire requirements
- ICON Tubular Steel Upper Control Arms (UCA) — Corrects front-end geometry, adds built-in caster, and increases suspension component clearance over OEM arms
- ICON Delta Joint — Replaces the OE ball joint; a heavy-duty, high-angle unit combining ball joint durability with uniball-level articulation while eliminating bind at full bump and droop travel
- Delta Joint Corrosion Protection — Features a zinc-plated housing, tough grease seal, metal-on-metal construction, and a greaseable design for long service life and noise-free operation
- ICON 2.0 Aluminum Series Rear Remote Reservoir Shocks — Corrosion-resistant anodized shock body with a 5/8" shaft; vehicle-specific valving balances front-to-rear performance
- Multi-Rate Rear Leaf Packs — Lowered spring rate compared to stock for improved rear compliance; includes an additional leaf that can be added or swapped to handle more heavily outfitted vehicles
- Foam Bump Stop Kit — Increases rear-end compliance and protects against harsh bottom-outs
- Fits 2WD and 4WD — Compatible with both drivetrain configurations on the 2020–2023 Ford Ranger
At the heart of this system's upper control arms is ICON's patented Delta Joint — a proprietary design that outperforms a conventional uniball in daily-driven conditions by shielding internal components from moisture, dirt, and corrosion. Its greaseable, metal-on-metal construction ensures longevity without sacrificing the high angularity needed for aggressive suspension travel. The result is a control arm assembly that articulates freely through the full range of motion without bind, delivering precise front-end feel on the street and maximum performance on the trail.
The rear suspension components are tuned to complement the front, with the Multi-Rate Leaf Pack's adjustable design making this system equally suitable for lightly loaded daily drivers and fully outfitted overland rigs. Whether navigating daily commutes or tackling demanding off-road terrain, the ICON K93206TS Stage 6 system transforms the Ford Ranger's suspension into a high-performance platform.
