ICON Vehicle Dynamics K93205TS Stage Suspension System Lift Tubular UCA Steel Knuckle - 5 0-3.5

(2020-2023 Ford Ranger)

Manufacturer

Part Number

K93205TS
Black Friday Price

$4,031.51

$4,742.95 Save 15%

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

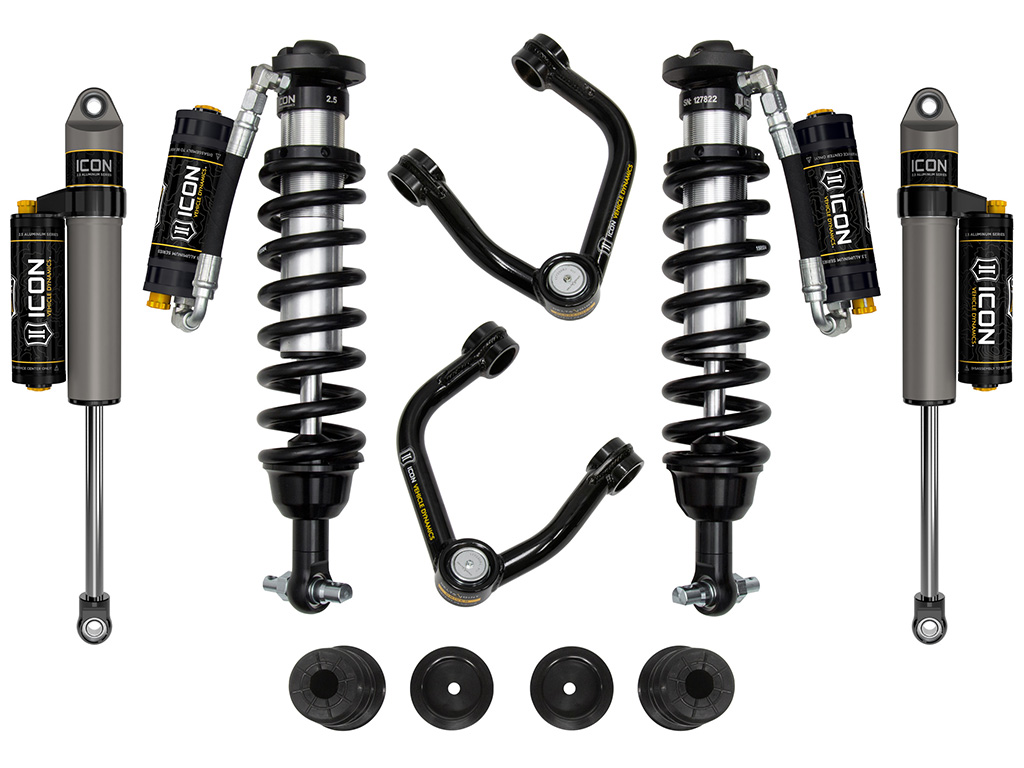

The ICON Vehicle Dynamics K93205TS is a complete Stage 5 front and rear suspension lift system engineered to dramatically improve both on-road comfort and off-road performance. Designed for the 2020–2023 Ford Ranger in 2WD and 4WD configurations with OE steel knuckles, this system delivers up to 3.5 inches of adjustable front lift height while maximizing wheel travel, damping control, and suspension geometry.

Key Features:

  • 0–3.5" Height-Adjustable Front Coilovers — Extended travel 2.5 Series coilover shocks with vehicle-specific tuning and ICON-engineered coil springs deliver superior ride feel across the full range of travel
  • CDC Valve (CDCV) Technology — Compression Damping Control Valves on both front and rear shocks allow quick, tool-free external adjustment of compression damping force for dialing in ride quality on the fly
  • Remote Reservoir Front Coilovers — Piggyback-style remote reservoirs increase shock oil volume and provide enhanced heat dissipation to prevent shock fade during extended off-road use
  • 2.5 Aluminum Series Piggyback Rear Shocks — CDCV-equipped rear shocks feature vehicle-specific valving to balance performance from front to rear, paired with an included foam bump stop kit for improved rear-end compliance
  • Tubular Steel Upper Control Arms (UCA) — Compatible with OE steel steering knuckles; corrects front-end geometry, builds in additional caster, and improves suspension component clearance
  • ICON Patented Delta Joint — A heavy-duty, high-angle ball joint that replaces the OE ball joint, enabling full bump and extended droop travel while eliminating bind. Features a zinc-plated housing, grease seal, and greaseable metal-on-metal construction for corrosion resistance and long-term durability
  • Fits 2WD and 4WD Applications — Designed specifically for 2020–2023 Ford Ranger models equipped with the factory steel steering knuckle
  • Increased Tire Clearance — The added lift height and corrected geometry allow fitment of larger, more aggressive wheel and tire combinations

What sets the Delta Joint apart from a conventional uniball is its weather-sealed design. While uniballs offer excellent articulation with minimal bind, they are vulnerable to the elements in daily-driven applications. The Delta Joint addresses this with a zinc-plated housing for corrosion resistance, a tough grease seal to protect internal components, and a greaseable metal-on-metal construction that supports noise-free, long-lasting operation — bringing the angularity of a uniball together with the durability of a traditional ball joint.

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Products specifications

Fits

2020-2023 Ford Ranger
