ICON Vehicle Dynamics K93204TS Stage Suspension System Lift Tubular UCA Steel Knuckle - 4 0-3.5

(2020-2023 Ford Ranger)

Manufacturer

Part Number

K93204TS
Sale Price

$4,089.10

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics K93204TS is a complete Stage 4 suspension lift system engineered specifically for the 2020–2023 Ford Ranger. Designed to dramatically improve both on-road comfort and off-road capability, this system addresses every element of the Ranger's front and rear suspension to maximize wheel travel, damping performance, and overall vehicle control.

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Front Suspension – Extended Travel 2.5 Series Coilovers:

  • Vehicle-specific tuned, extended travel 2.5 Series coilover shocks with remote reservoirs for superior cooling and consistent damping
  • ICON-engineered coil springs deliver precise vehicle feel throughout the full range of travel
  • Height-adjustable design provides 0–3.5" of front lift, enabling fitment of larger, more aggressive wheel and tire combinations
  • Corrosion-resistant CAD plated shock bodies with heavy-duty 7/8" shafts
  • Compatible with both 2WD and 4WD applications
  • Shocks are fully serviceable

Tubular Steel Upper Control Arm Kit with Patented Delta Joint:

  • Tubular steel upper control arms correct front-end geometry, add built-in caster, and increase suspension component clearance
  • ICON's patented Delta Joint (U.S. Pat. 10,731,700) replaces the OE ball joint, allowing full bump and extended droop travel while eliminating bind
  • The Delta Joint combines the durability of a conventional ball joint with the high-angularity performance of a uniball — without the weather exposure vulnerability of a traditional uniball
  • Zinc-plated housing provides corrosion resistance; tough grease seal protects internal components from the elements
  • Metal-on-metal construction with a greaseable design ensures long-term durability and noise-free operation
  • Delta Joint carries ICON's exclusive 5-year limited warranty
  • Direct bolt-in installation; lifetime guarantee against ICON fabricated component and coil spring breakage or manufacturer defect

Rear Suspension – 2.5 Aluminum Series Piggyback Reservoir Shocks:

  • Vehicle-specific valving balances performance front-to-rear for a cohesive, tuned driving experience
  • One-piece impact-extruded aluminum cylinders deliver excellent corrosion resistance and a consistent finish
  • Included foam bump stop kit improves rear-end compliance over rough terrain

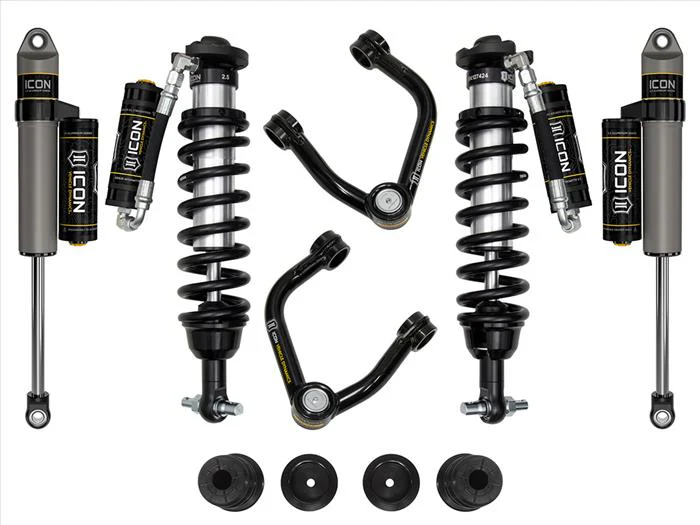

Kit Contents:

  • Qty 1 – 19–23 Ranger Extended Travel 2.5 VS Remote Reservoir Coilover Kit (Part #91355)
  • Qty 1 – 20–23 Ranger Tubular UCA Delta Joint Kit, Steel Knuckle Only (Part #98511DJ)
  • Qty 1 – Universal Foam Bump Stop Kit
  • Qty 1 – 19–23 Ranger Rear 2.5 VS Piggyback Shock Pair

Technical Notes:

  • Compatible with OE steel knuckle models only
  • Ranger XLT or Lariat models equipped with the Tremor package have a front lift range of 0–2.5" over stock
  • Not compatible with Ranger Raptor
  • Minor trimming may be required for recommended tire size
  • Coilover heights indicated are for a stock-equipped vehicle
  • Recommended tire size: 285/70R17 (larger tires may require fender trimming)

Products specifications

Fits

2020-2023 Ford Ranger
