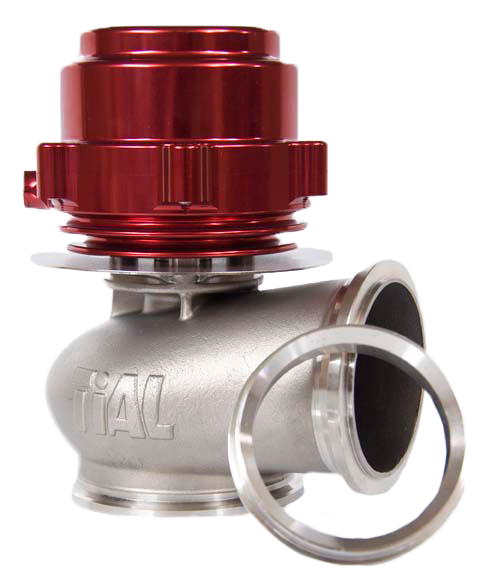

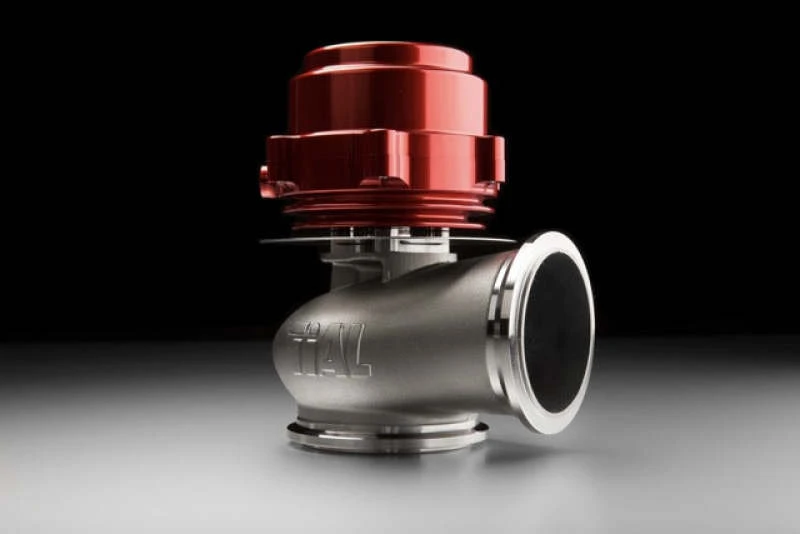

TiAL 005117 V50 External Wastegate 50mm 1.57 Bar 22.77 PSI Red

The TiAL Sport V50 External Wastegate is a high-performance 50mm boost control solution engineered for precision and durability in demanding turbocharged applications. This unit features a 1.57 Bar (22.77 PSI) spring pressure and comes with a red anodized actuator housing.

Key Features:

• 50mm valve diameter for high-flow capacity and precise boost control
• 1.57 Bar (22.77 PSI) base spring pressure
• High-temperature alloy valve with stainless steel valve housing for extended service life
• CNC-machined billet aluminum actuator housing with red anodized finish
• 17-7 PH stainless steel actuator spring maintains consistent pressure at elevated temperatures
• Nomex-reinforced silicone diaphragm for high-temperature durability
• Nitronic 60 stainless steel valve guides and seats for superior wear and galling resistance
• TiAL-specific valve stem coating with rigorously tested wear protection
• Optimized actuator-to-valve area ratio for maximum control and wide dynamic flow range

What's Included:

• V50 wastegate assembly
• Stainless steel V-band clamps and flanges
• All air fittings (CNC-machined stainless steel and aluminum)

The V50 shares the same compact form factor as the legendary V60 but offers a smaller valve size ideal for applications sensitive to exhaust manifold pressure-induced valve lift. A favorite in drag racing and road racing industries, this wastegate delivers dead-on boost accuracy in the most demanding situations.
