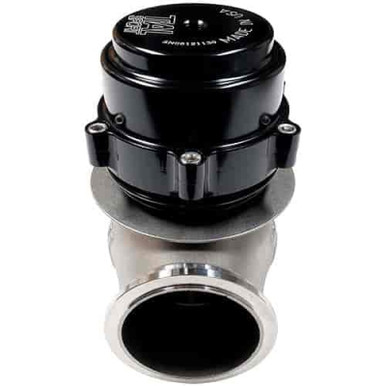

TiAL 005105 V50 50mm External Wastegate 1.4 Bar 20.3 PSI Black

The TiAL 005105 is a high-performance V50 Series 50mm external wastegate designed for turbocharged applications demanding precise boost control. This wastegate features a 1.4 bar (20.3 PSI) spring pressure rating and comes with a black anodized billet aluminum actuator housing.

Construction and Materials:

• High-temperature alloy valve and stainless steel valve housing for extended service life
• CNC-machined billet aluminum actuator housing with black anodized finish
• Nitronic 60 valve guides and seats for superior wear and galling resistance
• 17-7 PH stainless steel actuator spring maintains consistent pressure at elevated temperatures
• Nomex-reinforced silicone diaphragm for high-temperature durability
• Valve stem coated with proprietary wear-resistant coating

Performance Features:

• 50mm valve size optimized for applications sensitive to exhaust backpressure-induced valve lift
• Dual-port diaphragm chamber with M10 signal ports for accurate boost control
• Optimized actuator-to-valve area ratio provides maximum control and wide dynamic flow capacity
• Dead-on boost accuracy in demanding drag racing and road racing conditions

What's Included:

• V50 wastegate assembly with 1.4 bar spring installed
• Stainless steel V-band clamps and flanges
• CNC-machined stainless steel and aluminum air fittings

The TiAL V50 shares the same proven form factor as the legendary V60 wastegate but offers a smaller valve size for applications where controlling exhaust manifold pressure is critical. Fully engineered and manufactured in-house by TiAL Sport, this wastegate is trusted by professional tuners and racing enthusiasts worldwide for its reliability and precision under extreme boost conditions.
