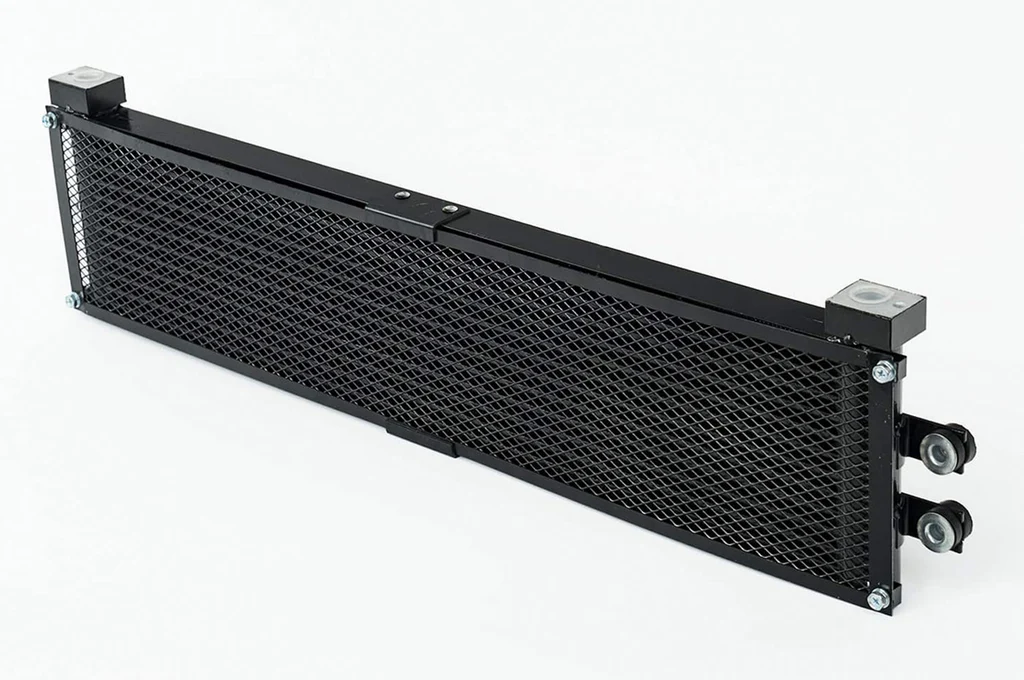

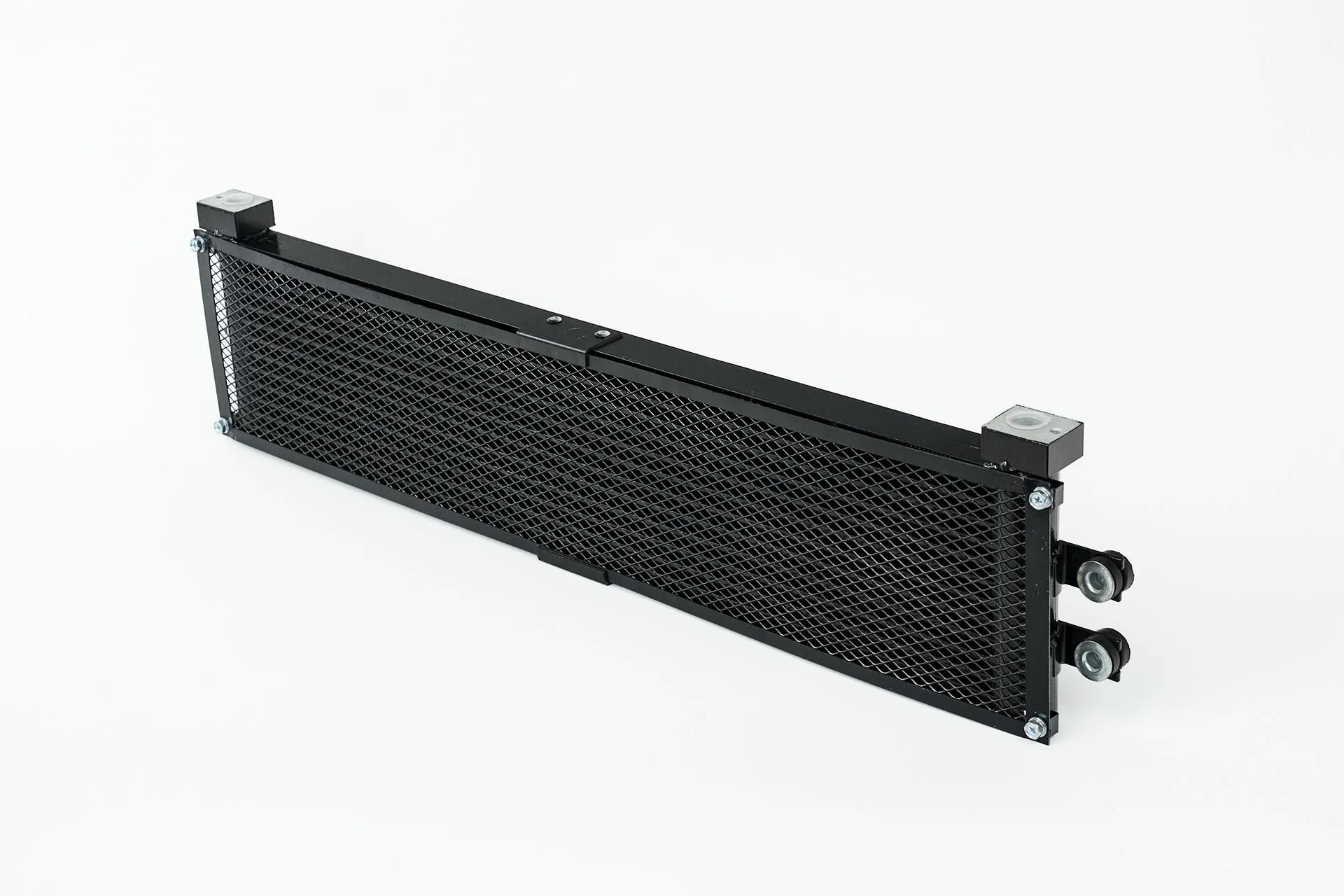

CSF 8220 BMW F8X M3 / M4 / M2 Competition High-Performance Engine Oil Cooler with Rock Guard

The CSF 8220 is a high-performance engine oil cooler engineered specifically for the BMW S55-powered F8X platform. While the factory oil cooler performs adequately in stock form, aggressive driving, increased power levels, and track use quickly expose its limitations. CSF developed this cooler to address those shortcomings while preserving a true drop-in fitment.

AC Condenser Technology & Core Design:

Unlike conventional cooler designs, the CSF 8220 uses CSF's proprietary AC Condenser Technology, incorporating a 1-row super-high-pressure 32mm 10-channel microtube for optimal oil flow and maximum surface area contact. Combined with 5.4mm tall multi-louvered fins (versus the OEM 7mm fins), this design delivers approximately 30% greater cooling efficiency over the factory unit.

Key Features:

• Built using CSF's AC Condenser Technology with a 1-row super-high-pressure 32mm 10-channel microtube
• 5.4mm multi-louvered fins vs. OEM 7mm fins for improved thermal efficiency
• Utilizes OEM-style top and bottom rubber seals to direct airflow through the cooler
• OEM-style inlet/outlet connections for seamless integration
• Drop-in fit — retains factory mounting location and dimensions; no modifications required
• Existing factory ducting and shrouds are fully reused
• Includes a removable and replaceable rock guard to protect against road debris punctures
• Compatible with aftermarket oil cooler guards (e.g., Fall-Line, Turner, etc.)
• Aluminum core construction with black finish
• Ideal for road racing, drag racing, and vehicles with increased performance output or engine tuning
• 2-Year Limited Warranty

What's Included:

• (1) Front-mount engine oil cooler
• (1) Mounting hardware kit

OEM Cross-Reference Part Numbers:

• BMW: 17 21 2 284 540 / 17212284540
• BMW: 17 21 4 802 333 / 17214802333

The CSF 8220 is the ideal upgrade for S55 and S58 engine owners seeking to protect their engine oil system during high-performance street and track driving without sacrificing factory-like integration.
