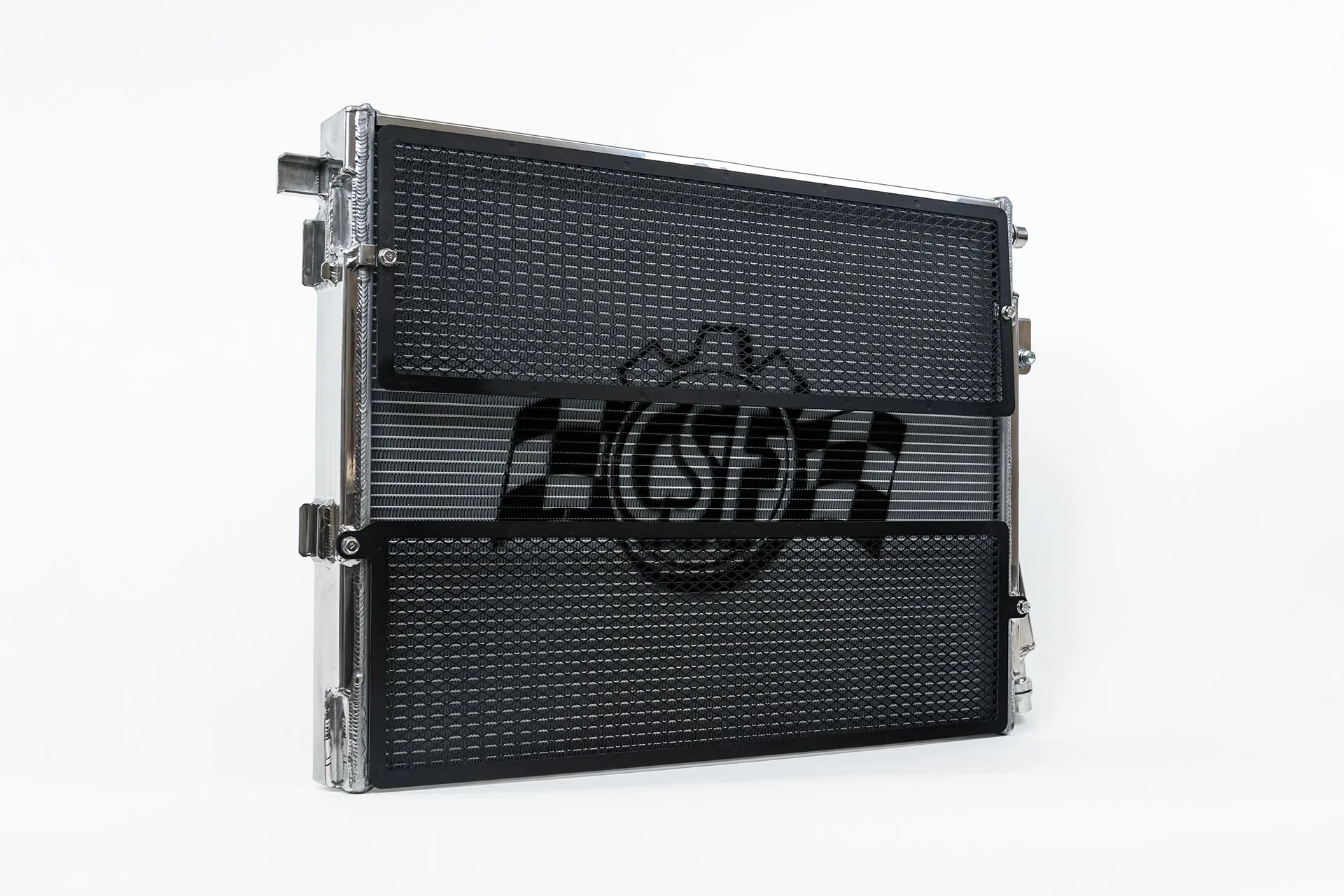

CSF 8215 BMW G8X M3/M4 High-Performance Front Mount Heat Exchanger

The CSF 8215 is a high-performance front mount heat exchanger (charge air cooler water radiator) engineered specifically for the BMW G8X platform equipped with the S58 twin-turbocharged engine. The S58's liquid-to-air charge cooler system relies on a front-mounted heat exchanger to dissipate heat from the charge-air cooling circuit — and under heavy driving or modified conditions, the factory single-row unit becomes a critical bottleneck, causing intake air temperature (IAT) spikes, ECU timing pull, and in extreme cases, limp mode activation. The CSF 8215 is designed to eliminate these issues with a true plug-and-play upgrade that requires absolutely no modifications.

Key Features:

• 2-Row, 42mm Ultra-High-Performance Core — doubles the OEM single-row design for significantly greater heat absorption and dissipation capacity
• CSF Exclusive B-Tube Technology with 6.5mm tall multi-louvered fins for maximum thermal efficiency
• Enlarged End Tanks increase total system fluid volume to further reduce heat soak and improve recovery time
• Improved Secondary Cooling Airflow — the more efficient core improves airflow to the main radiator behind it, benefiting engine coolant and oil temperatures
• CNC Machined Mounting Brackets with OEM-style quick-connect inlet/outlet for seamless fitment
• 100% All-Aluminum TIG-Welded Construction for durability and light weight
• 1-Hour Mirror Finish Hand Polish for a premium appearance
• Includes Black Rock Guards (upper and lower) to protect the core from road debris, especially when used with open-face performance grilles
• Includes Transmission Cooler Mounting Kit — upper and lower rock guards for 6-speed manual; upper rock guard and transmission cooler mounting kit for ZF8 automatic
• True Plug-and-Play Drop-In Fit — no cutting, drilling, or modifications required
• 2-Year Limited Warranty

The CSF 8215 was developed over more than nine months with direct input from North American race teams and performance shops, accumulating over 100 track hours and thousands of road miles of validation. It is compatible with both 6-Speed Manual (6MT) and ZF8 Automatic transmission configurations, and fits AWD and RWD variants. Cross-reference part numbers: CSF-8215, CSF.8215, CSF8215.
