Wiseco K0031B1 SBC Forged Dome Piston Set Bore CH Gas Ported - 18-Degree 4.135 1.125 3cc

Manufacturer

Part Number

K0031B1
Black Friday Price

$1,154.99

Estimated ship date Saturday, December 05

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

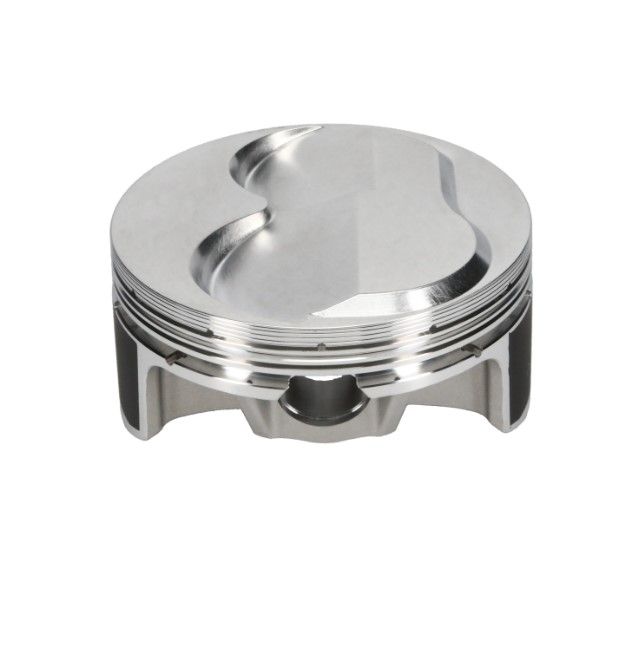

The Wiseco K0031B1 is a high-performance forged piston set from Wiseco's renowned "Lil Quick 16" series, purpose-built for Small Block Chevy (SBC) engines running 18-degree cylinder heads. Engineered for serious racing applications, these solid dome pistons deliver the strength, reliability, and precision tolerances demanded on the track.

Key Features:

  • Application: Small Block Chevy (SBC) with 18-degree cylinder heads
  • Bore: 4.135"
  • Compression Height (CH): 1.125"
  • Dome Volume: +3cc solid dome
  • Stroke: 3.750"
  • Rod Length: 6.000"
  • Wrist Pin Diameter: .927"
  • Compression Ratio: 13.5:1 (based on head volume)
  • Gas Ported: Yes — vertical gas ports for improved ring seal and reduced blowby
  • Skirt Design: Strutted high-strength forged construction

Gas porting promotes superior ring seating by directing combustion pressure behind the top ring, maximizing cylinder pressure retention — a critical advantage in high-RPM naturally aspirated and boosted racing builds. The strutted skirt design provides exceptional strength-to-weight ratio while maintaining tight piston-to-wall clearances for a reliable, race-ready fit.

Built to stock configuration for engines requiring a proven, race-validated piston in a standard build spec. Rings and wrist pins are sold separately.

Products specifications

Piston Quantity

8

Stroke

3.750

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Rod Length

6.000

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.135

Compression Height

1.120

Industry

Automotive

Product Market

Domestic

Engine

Small Block

Engine Type

ICE

Wrist Pin Material

52100

Product Series

Professional

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Engine - Web

Small Block Gen I

Make - Web

Chevrolet

Ring Set Included

No

Skirt Coating

Yes

Wrist Pin Included

Yes

Piston Volume

3.00

Title

Wiseco - Chevrolet, Small Block, 4.135 in. Bore, Piston Set of 8

Title - Web

Professional Chevy Small Block Piston Set of 8 - 4.135 in. Bore - 1.120 .in CH, 3.00 CC
