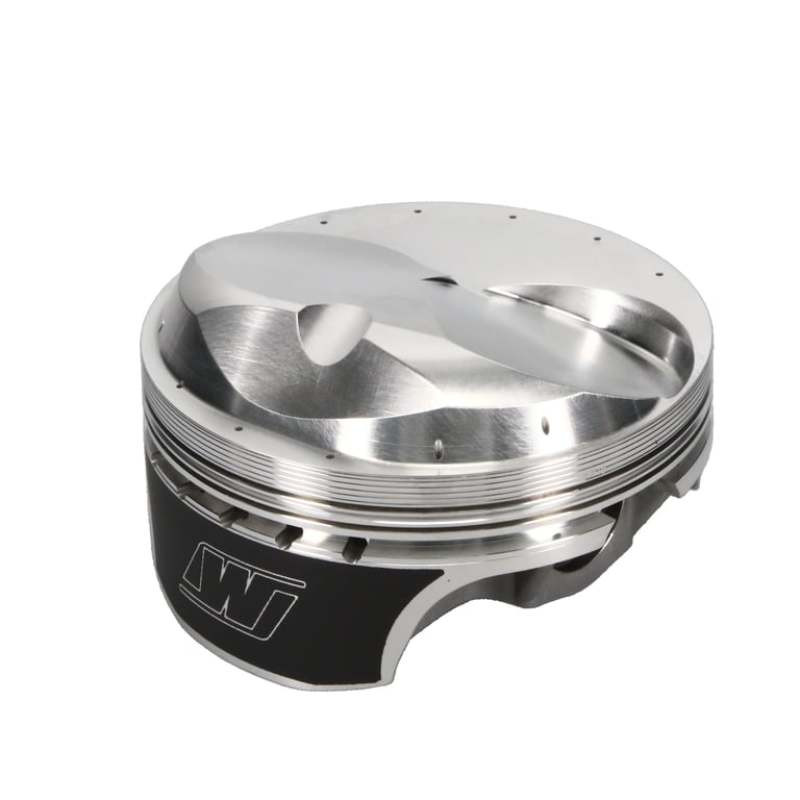

Wiseco K0022B125 BBC Quick 16 Gen II 48.7cc Dome Piston Kit 4.625 in. Bore 1.060 in. Compression Height

Manufacturer

Part Number

K0022B125
Black Friday Price

$1,137.99

Estimated ship date Saturday, December 05

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco K0022B125 is a Professional Series Big Block Chevy (BBC) Quick 16 Gen II forged piston kit, purpose-built for serious drag racing and high-output race engine builds.

Key Features:

  • 2618 High-Temp Aluminum Alloy — strutted-style forging for superior strength-to-weight ratio under extreme thermal and mechanical loads
  • Fully Machined Crown — precision-machined dome for consistent combustion chamber geometry and optimized flame travel
  • ArmorGlide® Skirt Coating — reduces friction, resists seizure, and promotes quieter operation
  • Anti-Detonation Grooves — engineered to control ring seal and combat detonation in high-compression, nitrous, or power-adder applications
  • 15-Degree Pro Stock Pressure Seal Ring Grooves — improved ring seal for maximum cylinder pressure retention
  • Vertical Gas Ports — promote faster ring response and superior sealing at high RPM
  • Reinforced Deck Construction — handles the elevated cylinder pressures common in 500–700+ cubic inch race motors
  • +48.7cc Profile Dome — compatible with conventional-style BBC cylinder heads used in bracket and .90 class racing
  • Build-to-Stock (B125) Sizing — 4.625-inch bore diameter with 1.060-inch compression height for precise engine fitment
  • Engineered, forged, and machined in the USA at Wiseco's Mentor, Ohio facility

The Quick 16 Gen II builds on the original Quick 16 platform with lighter weight, higher compression capability (up to 14.5:1), and refined features developed with input from professional engine builders using Pro Stock technology. These pistons are ideally suited for conventional BBC cylinder head configurations found in high-cubic-inch sportsman drag racing engines. Not CARB compliant — not for sale in California.

Products specifications

Piston Quantity

8

Rod Length

6.535

Stroke

4.375

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.625

Compression Height

1.060

Industry

Automotive

Product Market

Domestic

Engine Type

ICE

Engine

Big Block

Wrist Pin Material

52100

Product Series

Professional

Product Type

Engine Piston Set

Wrist Pin Outer Diameter

0.990

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Engine - Web

Big Block

Make - Web

Chevrolet

Ring Set Included

No

Skirt Coating

Yes

Wrist Pin Included

Yes

Title

Wiseco - Chevrolet, Big Block, 4.625 in. Bore, Piston Set of 8

Piston Volume

48.70

Title - Web

Professional Chevy Big Block Piston Set of 8 - 4.625 in. Bore - 1.060 .in CH, 48.70 CC
