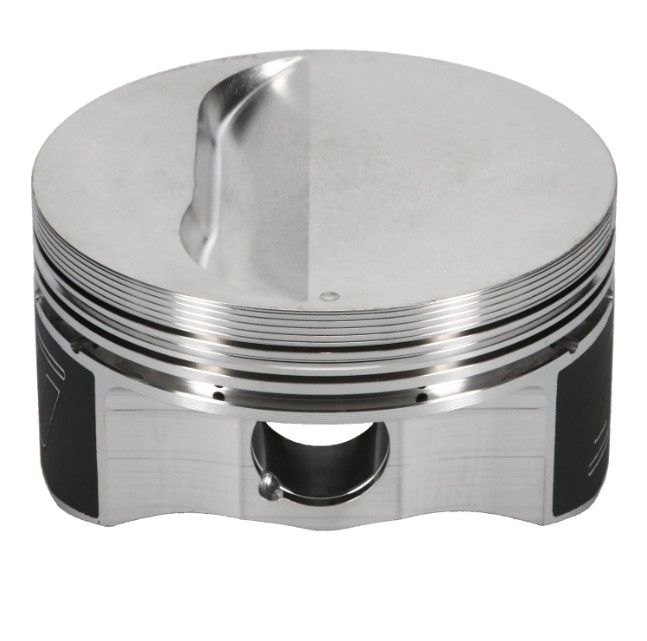

Wiseco KE166M965 Forged Piston Kit Opel 2.4L CIH C24NE 96.50mm +4cc Dome 12.0:1

Manufacturer

Part Number

KE166M965
Black Friday Price

$834.99

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco KE166M965 is a high-performance forged piston kit designed for the Opel 2.4L 8-valve CIH / C24NE engine. Engineered to dramatically increase compression from the stock 9.2:1 ratio up to a high-compression 12.0:1, this kit is purpose-built for motorsport and performance engine builds. The +4cc dome design and precision 96.50mm (3.799") bore — a 0.060" oversize — deliver the tight tolerances and strength demanded by competitive racing applications.

Key Features:

  • Bore: 96.50mm / 3.799" (0.060" oversize)
  • Compression Ratio: 12.0:1 (stock is 9.2:1)
  • Compression Height: 1.240" / 31.5mm
  • Dome Volume: +4cc
  • Stroke: 3.346" / 85mm
  • Rod Length: 5.276" / 134mm
  • Block Height: 8.189" / 208mm
  • Deck Clearance: 0
  • Gasket Thickness: 0.032" / 0.80mm
  • Wrist Pin: 22mm (.866" x 2.500") — Part #S566 included
  • Ring Set: Part #9650XX included
  • Average Piston Weight: 418g

Kit Includes:

  • Wrist pins and wire locks
  • Matched ring set

Wiseco forged pistons are manufactured using advanced forging processes and high-strength aluminum alloys, providing superior durability and heat resistance compared to cast alternatives. Note: Wiseco pistons feature offset wrist pins — pins must be installed with the same offset orientation as OEM for quietest operation. Compression ratio is calculated using a 0.80mm cylinder head gasket.

Products specifications

Piston Quantity

4

Wrist Pin Style

Floating

Piston Material

2618

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

96.50

Make

OPEL

Industry

Automotive

Engine Type

ICE

Oil Ring Thickness

3

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston Set

Wrist Pin Outer Diameter

0.8661

Compression Height

31.50

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Product Market

European

Second Compression Ring Thickness

1.2

Top Compression Ring Thickness

1

EBAY Category ID

33623

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Forging Type

Domed

Make - Web

Opel

Piston Volume

4.00

Engine - Web

C24NE

Title

Wiseco - Opel, C24NE, 96.50 mm Bore, Piston Set of 4

Engine

C24NE

Title - Web

Professional Opel C24NE Piston Set of 4 - 96.50 mm Bore - 31.50 mm CH, 4.00 CC
