Wiseco K0240A3 Big Block Chevy 396/427/454/502 Forged Dome Piston Kit +32cc 4.280 Bore

Manufacturer

Part Number

K0240A3
Black Friday Price

$1,150.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

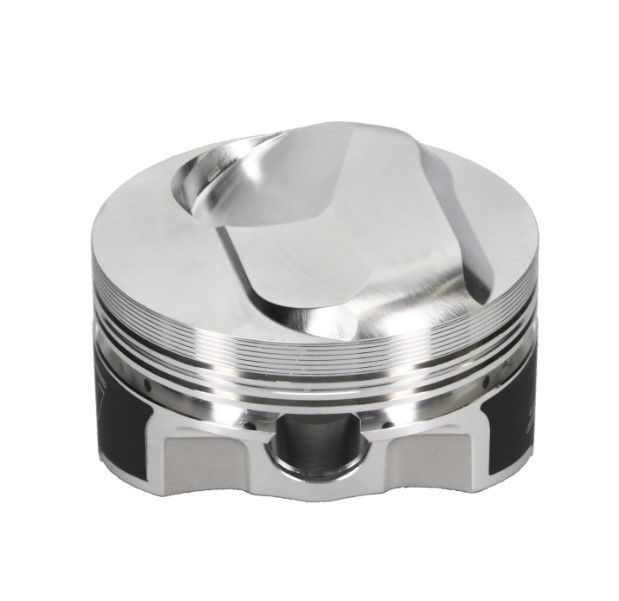

The Wiseco K0240A3 is a Professional Series forged dome piston kit engineered for Chevrolet Big Block engines in the 396, 427, 454, and 502 cubic inch family. Featuring a 4.280-inch bore, +32cc dome volume, and a 1.645-inch compression height, this kit is built to deliver serious compression ratios in performance and race engine builds.

Key Specifications:

  • Bore: 4.280 in.
  • Compression Height: 1.645 in.
  • Dome Volume: +32cc
  • Stroke: 4.000 in.
  • Rod Length: 6.135 in.
  • Zero Deck At: 9.780 in.
  • Standard Deck Height: 9.800 in.
  • Average Weight: 717 grams per piston
  • Wrist Pin: S460 — .990 in. diameter x 2.930 in. length (.150 wall), Double Spirolox® included
  • Compression Ratio @ 96cc chamber: 13.2:1
  • Compression Ratio @ 102cc chamber: 12.4:1
  • Compression Ratio @ 118cc chamber: 10.5:1
  • Compression Ratio @ 121cc chamber: 10.3:1
  • Ring Grooves: 1/16, 1/16, 3/16 (rings sold separately — see J100F8-4280-5)
  • Skirt Style: Slab Sided

Key Features:

  • ArmorGlide® skirt coating for seizure resistance, friction reduction, and quieter operation
  • 2618 high-strength forged aluminum alloy for improved tensile strength and durability under severe duty conditions
  • Vertical gas ports for improved ring seal
  • Anti-detonation and pressure seal grooves for enhanced combustion control
  • .310 top ring land for added strength in high-compression applications
  • Fully machined crown features with precision valve pockets
  • Engineered, forged, and machined in the USA

Rings are sold separately. The Wiseco K0240A3 is an ideal choice for builders targeting high-compression BBC performance builds using stock or near-stock deck heights.

Products specifications

Piston Quantity

8

Rod Length

6.135

Stroke

4.000

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.280

Compression Height

1.645

Industry

Automotive

Product Market

Domestic

Engine Type

ICE

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston Set

Wrist Pin Outer Diameter

0.990

Forging Type

Slab Side

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Engine - Web

Big Block

Make - Web

Chevrolet

Ring Set Included

No

Skirt Coating

Yes

Wrist Pin Included

Yes

Engine

Big Block 396

Title

Wiseco - Chevrolet, Big Block, 4.280 in. Bore, Piston Set of 8

Piston Volume

32.00

Title - Web

Professional Chevy Big Block Piston Set of 8 - 4.280 in. Bore - 1.645 .in CH, 32.00 CC
