Wiseco K0139X35 SBC 360 Sprint Car Forged Dome Piston Set 4.035 Bore 1.225 CH

Manufacturer

Part Number

K0139X35
Black Friday Price

$1,091.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

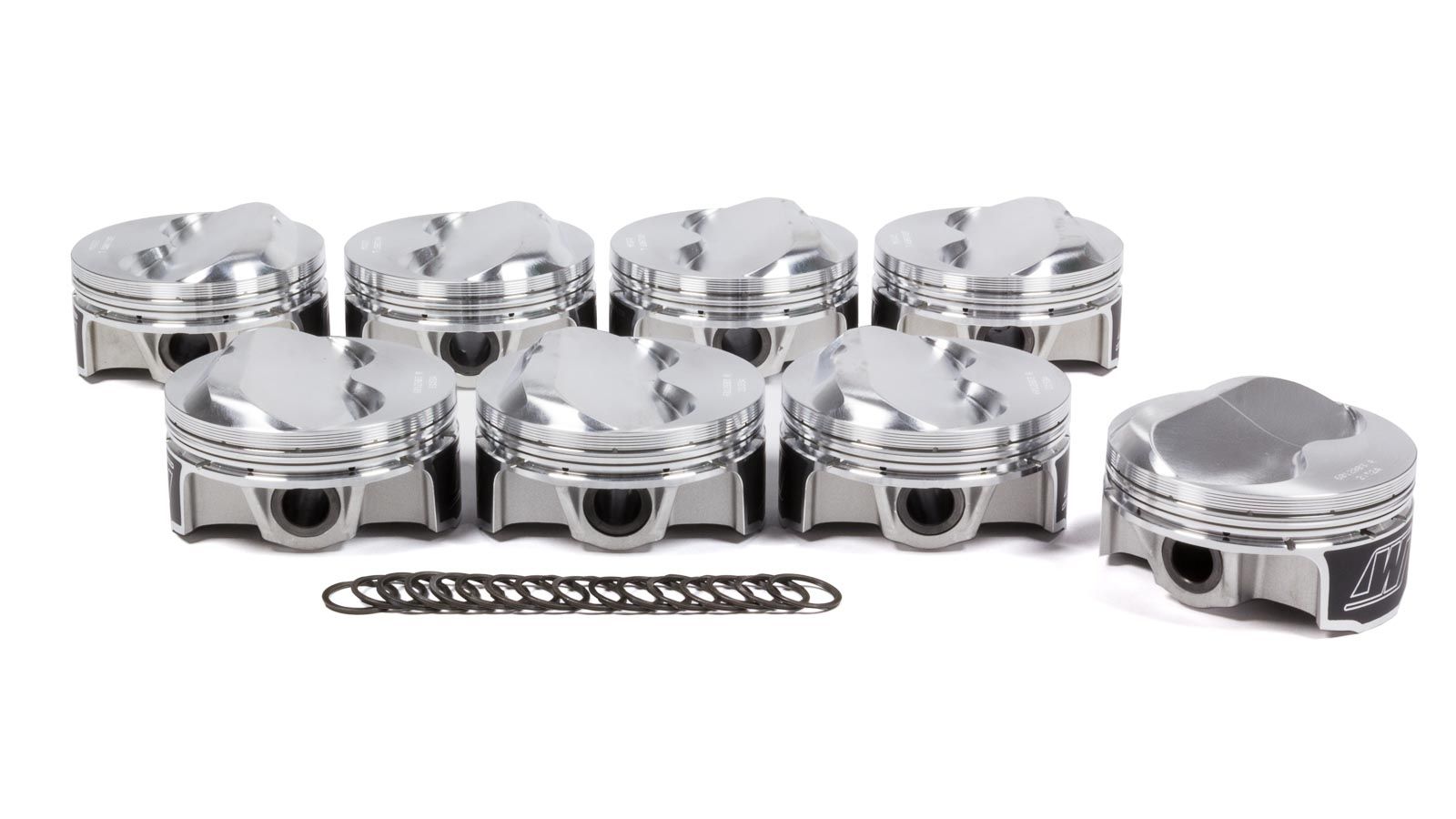

The Wiseco K0139X35 is a professional-grade forged piston kit engineered specifically for small block Chevrolet 360 cubic inch sprint car engines built to ASCS rules using the Brodix 11X cylinder head.

Machined from 2618 high-strength aluminum alloy, these slab-sided dome pistons feature a contoured +15cc dome with valve pockets sized for the 11X head's port configuration. The dome design targets a compression ratio of approximately 13.3:1 at a 66cc chamber (ranging from 15.5:1 at 58cc to 12.7:1 at 70cc), giving builders the flexibility to fine-tune compression to their specific setup.

Key Features:

  • ArmorGlide® skirt coating reduces friction and improves cold-start wear resistance
  • Lateral gas ports improve ring seal and combustion efficiency under high-RPM racing conditions
  • Contoured dome with valve pockets — Int. .320 / Exh. .220
  • 2618 high-strength alloy forging for maximum strength-to-weight ratio
  • .155 wall wrist pin with round wire locks for secure retention
  • Anti-detonation and pressure seal grooves for ring stability
  • Premium 1.2mm / 1.2mm / 3.0mm GFX ring set (P/N 4037GFX) included
  • Wrist pin P/N S795 (.927" x 2.750") included

Specifications:

  • Bore: 4.035"
  • Compression Height: 1.225"
  • Stroke: 3.550"
  • Rod Length: 6.000"
  • 0 Deck at: 9.000" / Std. Deck Height: 9.025"
  • Dome Volume: +15cc
  • Wrist Pin Diameter: .927"
  • Skirt Type: Slab Sided

Wiseco's Professional Series piston kits are engineered, forged, and machined at their Mentor, Ohio manufacturing facility — built for racers, by racers.

Products specifications

Piston Quantity

8

Stroke

3.550

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Rod Length

6.000

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.035

Industry

Automotive

Product Market

Domestic

Engine Type

ICE

Oil Ring Thickness

3.0

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston Set

Forging Type

Full Round

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Second Compression Ring Thickness

0.047

Top Compression Ring Thickness

0.047

EBAY Category ID

33623

Engine - Web

Small Block Gen I

Make - Web

Chevrolet

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Engine

360

Piston Volume

13.00

Title

Wiseco - Chevrolet, 360, 4.035 in. Bore, Piston Set of 8

Compression Height

1.225

Title - Web

Professional Chevy 360 Piston Set of 8 - 4.035 in. Bore - 1.225 .in CH, 13.00 CC
