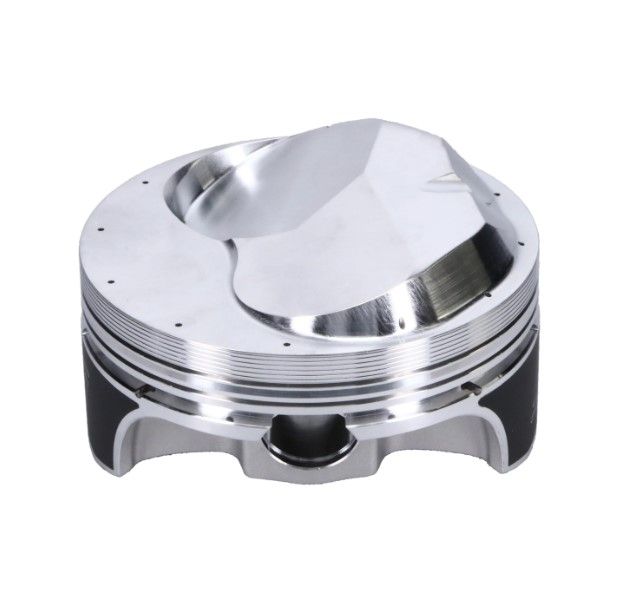

Wiseco K0009B105 BBC Quick 16 Series +45cc Semi-Hollow Dome Piston 4.605 in. Bore 1.155 in. CH

Manufacturer

Part Number

K0009B105
Black Friday Price

$1,137.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco K0009B105 is a Quick 16 Series forged piston engineered for Chevrolet Big Block engines running 24° conventional heads. With a 4.605 in. bore, 1.155 in. compression height, and a +45cc semi-hollow dome, this piston is purpose-built to achieve high compression ratios in the 15:1–17:1 range—ideal for naturally aspirated and nitrous-assisted big block builds targeting maximum power output.

Forged from 2618 high-strength aluminum alloy in the USA, Wiseco's Quick 16 Series pistons are designed for serious street/strip and drag race applications where durability and precision are non-negotiable. The semi-hollow dome design reduces reciprocating weight while maintaining the combustion chamber volume needed for aggressive compression ratios.

Key Features:

  • Series: Quick 16 — designed for 24° conventional cylinder heads
  • Bore: 4.605 in. (B105 shelf stock sizing)
  • Compression Height: 1.155 in.
  • Dome Volume: +45cc semi-hollow dome
  • Material: 2618 high-strength forged aluminum alloy
  • ArmorGlide® skirt coating — reduces operating friction, minimizes wear, and quiets operation
  • Vertical gas ports — improves ring seal and combustion efficiency
  • Anti-detonation and pressure seal grooves for enhanced ring seating
  • Wrist pin included: S726 — 0.990 in. diameter x 2.930 in. length, tool steel wall construction with Double Spirolox® retainers
  • Skirt design: Strutted for optimized strength-to-weight ratio
  • Ring set sold separately (.043 / 1/16 / 3/16)
  • Individual/replacement piston — sold as single unit (shelf stock)
  • Fits standard 9.800 in. BBC deck height
  • Engineered, forged, and machined in the USA

Rings are sold separately. This is a shelf-stock individual piston, making it an excellent option for replacement or matched-set builds. Wiseco's Quick 16 lineup is the go-to choice for BBC engine builders seeking proven forged piston performance without custom lead times.

Products specifications

Piston Quantity

8

Rod Length

6.385

Stroke

4.500

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Compression Height

1.155

Industry

Automotive

Product Market

Domestic

Engine Type

ICE

Engine

Big Block

Wrist Pin Material

52100

Product Series

Professional

Product Type

Engine Piston Set

Wrist Pin Outer Diameter

0.990

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Engine - Web

Big Block

Make - Web

Chevrolet

Ring Set Included

No

Skirt Coating

Yes

Wrist Pin Included

Yes

Piston Volume

45.00

Bore Diameter

4.605

Title

Wiseco - Chevrolet, Big Block, 4.605 in. Bore, Piston Set of 8

Title - Web

Professional Chevy Big Block Piston Set of 8 - 4.605 in. Bore - 1.155 .in CH, 45.00 CC
