ICON Vehicle Dynamics K53213 Stage 3 3.0 Suspension System Billet 1.25-3.25" Lift

(2022-2023 Toyota Tundra)

Manufacturer

Part Number

K53213
Black Friday Price

$9,119.41

$10,728.72 Save 15%

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

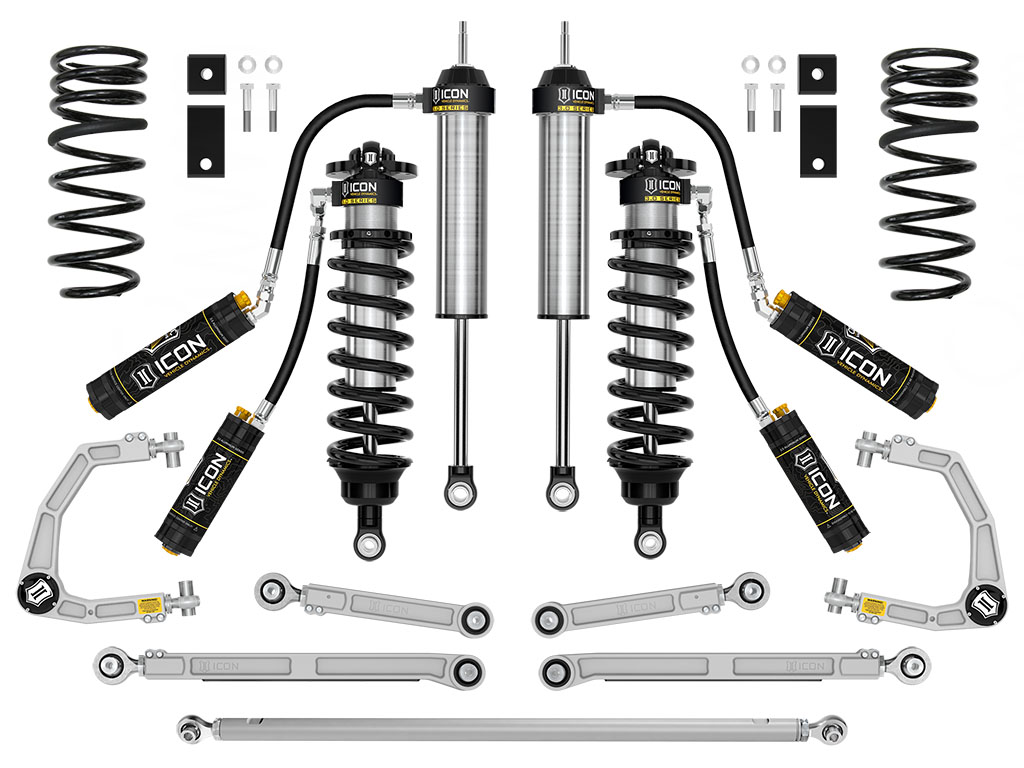

The ICON Vehicle Dynamics K53213 Stage 3 3.0 Suspension System is a complete, vehicle-specific lift and performance suspension package designed for the 2022–2023 Toyota Tundra. Delivering 1.25–3.25" of adjustable front lift over stock, this billet-grade system is engineered to maximize on- and off-road capability while supporting wheel and tire fitment up to 35 inches.

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

3.0 Series CDCV Front Coilovers:

  • Vehicle-specific remote reservoir coilovers with CDC (Compression Damping Control) Valves
  • 10 externally adjustable compression damping settings from soft to firm
  • 50% more piston surface area in the ride zone and 100% more in the Bump Zone vs. 2.5 Series shocks
  • Multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance through the last 40% of shock travel
  • Vehicle-specific shock length provides up to 40% more wheel travel compared to stock

Billet Aluminum Front Upper Control Arms (UCAs):

  • CNC machined billet aluminum construction for superior strength and durability
  • Corrected front-end geometry with on-vehicle camber and caster adjustability
  • Features the patented ICON Delta Joint PRO (U.S. Pat. 10,731,700) with 90° of total articulation
  • Serviceable and rebuildable design eliminates suspension bind through full bump and droop travel

Billet Aluminum Rear Upper & Lower Links:

  • CNC machined 6061 aluminum with anodized finish for corrosion resistance
  • PTFE-lined FK rod ends for increased articulation and reduced deflection
  • ICON double adjuster system allows on-vehicle link arm length adjustment
  • Multi-durometer bushings provide noise-free operation with maximum angularity and no periodic greasing required

Triple-Rate Rear Coil Springs:

  • Soft droop and ride rates with a firmer overload rate for on-road comfort and off-road bottoming resistance
  • Designed to net approximately 0.5" of rear lift on non-TRD Tundra models, or 0" lift on TRD-equipped Tundras seeking improved performance at OE ride height

3.0 Series CDCV Rear Remote Reservoir Shocks:

  • Tailored specifically for the 2022–2023 Tundra for a 20% increase in wheel travel over stock
  • 50% more piston surface area vs. 2.5 Series shocks
  • Remote reservoirs provide increased oil volume, greater heat dissipation, and superior fade resistance under hard use
  • 10-setting CDC Valve compression damping adjustment pairs with front coilovers for balanced front-to-rear vehicle control

Billet Adjustable Rear Track Bar:

  • CNC machined from solid 6061 aluminum billet and anodized to match ICON billet components
  • Properly centers the rear axle on lifted applications
  • Rod end threads enable easy on-vehicle fine adjustment without full removal or disassembly

Front Sway Bar Drop Kit:

  • Minimizes sway bar link bind throughout the suspension travel range
  • Allows full wheel travel range without overstressing OEM components

The ICON K53213 Stage 3 3.0 Suspension System builds upon the Stage 2 platform with the addition of triple-rate rear coil springs, an adjustable rear track bar, and billet rear links — delivering a comprehensive upgrade that transforms the 2022–2023 Tundra's stance, geometry, and capability both on pavement and on the trail.

Products specifications

Fits

2022-2023 Toyota Tundra
