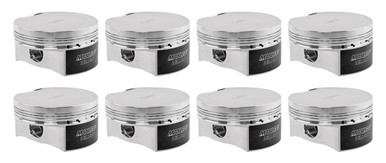

Manley 597500CE-8 Extreme Duty Piston Set 3.917" Bore Flat Top 5.7L HEMI

Manufacturer

Part Number

597500CE-8
Black Friday Price

$1,124.07

4 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 597500CE-8 is an Extreme Duty Series forged piston set designed for 2003-2024 Chrysler 5.7L HEMI engines. This complete 8-piston set features a 3.917" bore diameter with a -1.5cc flat top design, engineered for stock stroke applications using a 3.579" crankshaft and 6.240" connecting rods.

Key Specifications:

  • Bore diameter: 3.917 inches
  • Compression height: -1.5cc flat top
  • Wrist pin diameter: 0.927 inches
  • Stock stroke: 3.579 inches
  • Rod length: 6.240 inches (stock length)
  • Compression ratio: 8.6:1 with 2003-2008 85cc heads, 10.7:1 with 2009+ 65cc heads

Premium Construction and Features:

  • Forged from high-strength 2618 aluminum alloy for superior durability
  • Includes heavy-duty 9310 alloy wrist pins with 0.210" wall thickness (P/N 42542)
  • Pressure balance grooves for reduced stress and increased reliability
  • Forced pin oiling and precision pin fitting for optimal lubrication
  • Perfect ring groove to skirt squareness via unique one-fixturing manufacturing method
  • Roundwire locks included at no additional charge

High-Performance Ring Set Included:

  • Top ring: High-performance ductile iron with plasma moly inlay or premium steel with Chrome Nitride face coating
  • Second ring: Reverse twist cast iron design
  • Oil ring: Three-piece standard tension with full oil return
  • Engineered for minimal blow-by and increased horsepower while maintaining cooler, cleaner oil

The Extreme Duty Series is built for demanding applications requiring maximum strength and reliability. Compression ratios are calculated at 0.003" deck clearance with a 3.941" head gasket ID and 0.028" compressed thickness. This piston set is ideal for performance builds, forced induction, and high-output naturally aspirated 5.7L HEMI engines.

Products specifications

Piston Quantity

8

Compression Height

1.220

Engine Type

ICE

Product Type

Engine Piston Kit

Engine

5.7L Hemi

Bore Diameter

3.917

Piston Volume

-1.50

Weight

400

Piston Series

Platinum Series

Piston Sub-Series

Extreme Duty

Title

Manley Piston Set, PIST-3.917/99.5mm/1.220 CD/FT E/D
