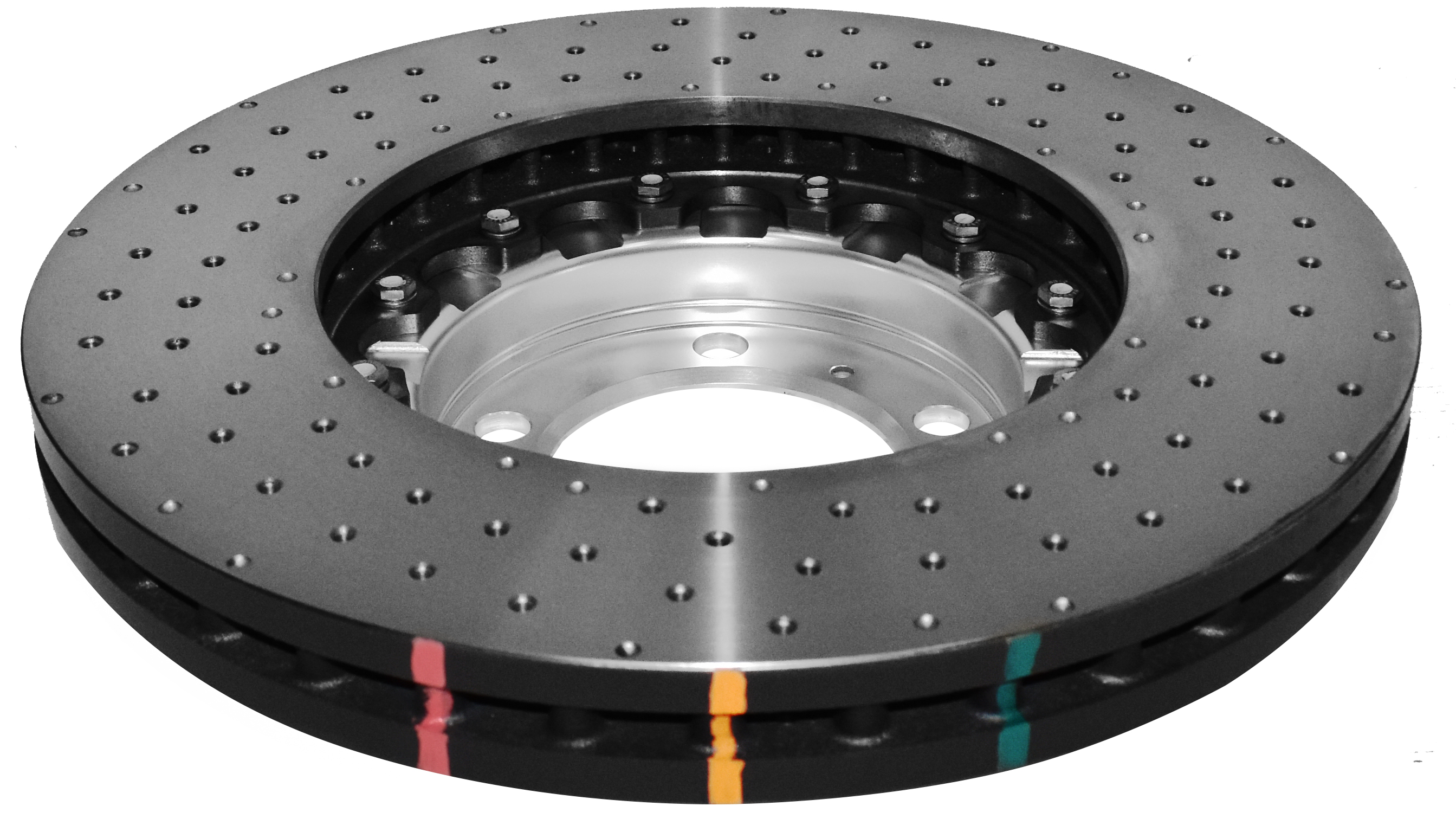

The DBA 52592SLVXD is a 5000 Series two-piece composite performance brake rotor featuring a non-directional cross-drilled and dimpled (XD) friction surface paired with a striking silver-finished aerospace-grade aluminum hat. Building on all the technology of the 4000 Series, the 5000 Series elevates braking performance with a lightweight two-piece construction engineered for high-performance street driving, track days, club racing, and rally applications.
Two-Piece Composite Construction:
- High-carbon cast iron rotor ring — formulated using DBA's proprietary XG-150 grey iron alloy for superior strength and heat resistance
- Aerospace-grade T6061-T6 aluminum hat (silver finish) — reduces unsprung weight while minimizing heat transfer from the rotor to the hub and suspension
- NAS (National Aerospace Standards) bolts and crimp nuts — secure the hat and ring assembly for long-term reliability
- Allows uniform radial disc expansion through the cast iron ring, reducing thermal stress and distortion
XD — Cross-Drilled & Dimpled Surface Finish:
- Non-directional design using a combination of drilled holes and dimples for enhanced structural support over traditional cross-drilled-only designs
- Provides additional cooling benefits above the standard HD (smooth) finish
- Enhanced sports aesthetics with a premium look behind the wheel
- Increases exit points for brake pad friction dust and gases, improving pad bite consistency
DBA Proprietary Technologies Included:
- Thermal Stability Profiling (TSP) — DBA's exclusive heat-cycling process relieves internal casting stresses in the XG-150 iron, maximizing thermal stability and reducing metal fatigue under sustained heavy braking

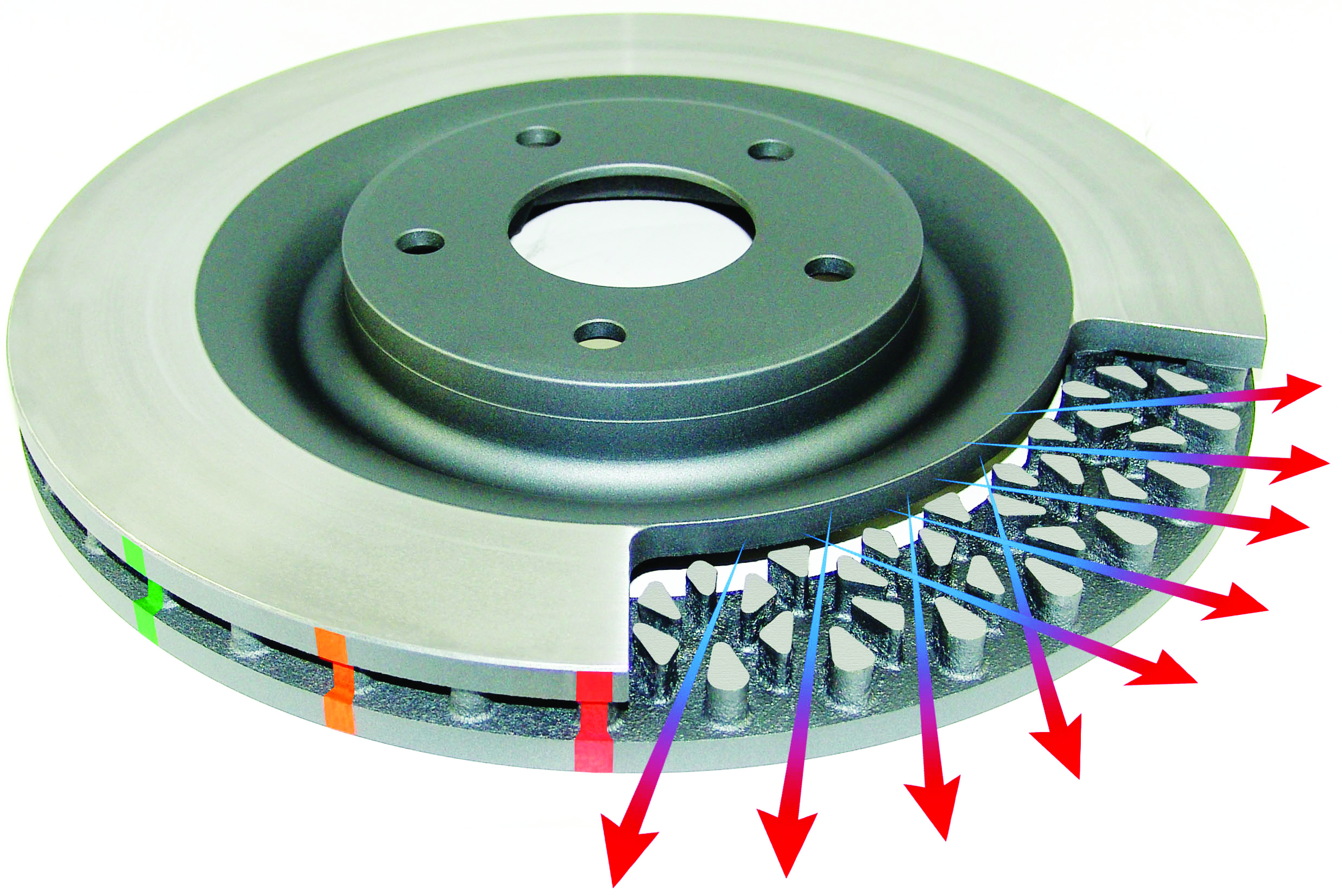

- Kangaroo Paw ventilation vane design — 144 diamond and teardrop-shaped internal pillars improve airflow and cooling efficiency by up to 20% compared to conventional vented rotor designs
- Thermo-Graphic Heat Paint (TGHP) — nine color-coded paint markings change color at specific temperature thresholds, allowing drivers to monitor peak rotor temperatures and select the appropriate brake pad compound
Modular Replacement Design: The 5000 Series two-piece design allows owners to replace only the cast iron rotor ring when worn, reusing the aluminum hat for a more cost-effective service option. When replacing rings only, DBA recommends inspecting the hat for wear and using DBA-spec hardware torqued to 13 Nm (9.6 ft-lb).
The DBA 52592SLVXD ships as a complete hat-and-ring assembly ready for direct OE replacement fitment, ideal for performance street drivers and motorsport enthusiasts who demand reliable, fade-resistant stopping power with a premium visual finish.
